Becker A2DIY-BKR Quick Start Installation Manual

Bluetooth for aux raeady radios
Hide thumbs Also See for A2DIY-BKR:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

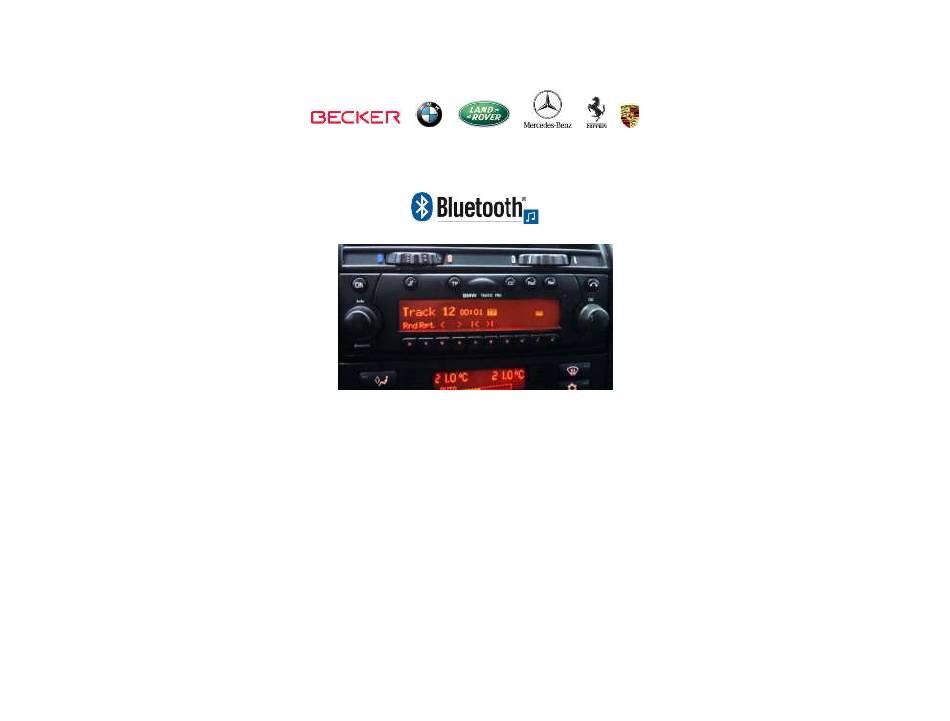

A2DIY-BKR
QUICK START BLUETOOTH INSTALLATION GUIDE FOR BECKER AUX RAEADY RADIOS
Created March1, 2017
Revised: July 27, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A2DIY-BKR and is the answer not in the manual?

Questions and answers

Related Manuals for Becker A2DIY-BKR

Summary of Contents for Becker A2DIY-BKR

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-BKR QUICK START BLUETOOTH INSTALLATION GUIDE FOR BECKER AUX RAEADY RADIOS Created March1, 2017 Revised: July 27, 2020...

  • Page 2: Installation

    Many European vehicle owners want to keep their cars as original possible springs. See Fig. 2. including the Becker radio and with the A2DIY-BKR kit, these proud owners can For a more detailed radio removal process, click here. now link up their Smartphones for Bluetooth Hands-Free, music streaming and AUX input.
  • Page 3 Fig. 4 Fig. 4b Audio plug Installation notes for Ferrari with cluster display In order to retain cluster display (see Fig. 4a) you must purchase optional ISO8-HAR T-harness (See Fig. 4b). Vehicles without cluster display do not require the T-harness. Fig.
  • Page 4 7. Connect supplied 3.5mm cable (See Fig. 6) to Module “AUX” jack (See 10. Route microphones down side pillar and behind dash. Connect Fig. 10). Route other end to dash or wherever auxiliary device will microphone plug to “MIC” jack on module (See Fig. 9) reside (within 3 ft.) Fig.
  • Page 5 Optional USB charging port (For charging, not audio playback) This optional “Fast charge” module provides a charging source for your devices. Should you decide to add it, we suggest 2 mounting options: A. Flush to dash/panel requires drilling a ¾” hole in the dash B.

  • Page 6: Remote Control Operation

    USB Bracket (No drilling) Locate a flat surface at location of choice within 3.2 ft. of radio and mount USB support bracket (See Fig. 15) to surface using adhesive/tape or screws. Installing wireless remote: Install to steering wheel, dashboard using provided double side tape, or custom install as seen in image below.

  • Page 7: Radio Operation

    Wait for Bluetooth device name (See below) to appear and tap it. paired confirmation tone is heard on car speakers Turn radio "ON" 2. Press and hold the "TP" button for about 8 seconds until Becker 1 is displayed. 3. Turn the Tuning Knob until AUX OFF is displayed.
  • Page 8 Press the soft-key labeled “Aux” until the screen displays “AUX Mode Turn radio ON. on”. Press and hold the ☼ button for 8 seconds, until Becker 1 is displayed. Press the Tone button to exit the menu. Turn the Tuning Knob until AUX OFF is displayed.
  • Page 9 Cascade Pro (i.e. BE6112, BE7941) Becker DTM /High speed (i.e. BE-7892, BE7910) To activate the External Device mode Press the Sound button for more than 2 seconds Turn radio ON. Press multifunction button “AUX” Press the information button Select Aux Mode on...

  • Page 10: Test Operation

    Test Operation: Bluetooth Comparison Chart Feature BLU-BKR A2D-BKR BT45-BKR A2DIY-BKR BKR-HF Turn ignition and radio “ON” CD changer retention 2. Press radio “AUX” button to enter Bluetooth mode 3. Launch streaming application (e.g. Pandora, Apple music etc.) 3.5mm AUX input ✓...

  • Page 11: Frequent Asked Questions

    Becker radios with “AUX” menu option. Enter radio menu to verify radio has this option. (Becker CR210, CDR210 for example do not have this option and therefore not compatible) 3. Is there an adapter for Becker radios that do not have “AUX” menu? YES; Purchase our...
