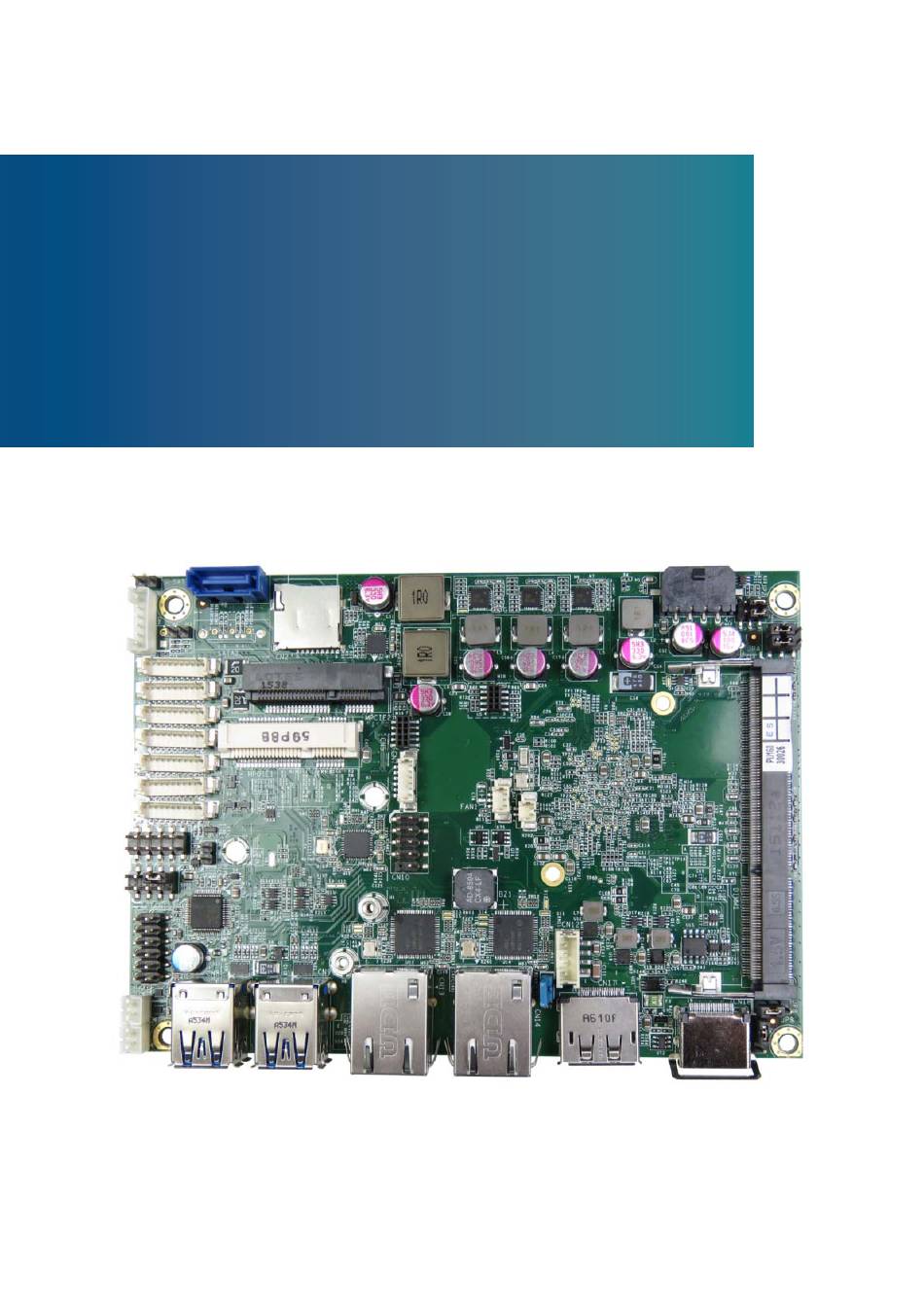

- Page 1 ECX-BW00 ® Single Board Computer in Intel ECX Form Factor ® with Intel Braswell SoC Quad Core Processor, Celeron® N3160 User’s Guide ECX-BW00 User’s Manual...
- Page 2 © 2016 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Memory Module Installation ................36 Chapter 4 AMI BIOS Setup ....................38 Overview ........................38 Main Menu ......................39 Ad vanced Menu ....................40 Power Menu......................53 Security Menu .......................54 Boot Menu......................55 Save & Exit Menu ....................56 ECX-BW00 User’s Manual... - Page 4 Content Chapter 5 Driver Installation .....................58 Appendix A DIO (Digital I/O) Sample Code ..............59 Appendix B WatchDog Timer Sample Code ..............62 ECX-BW00 User’s Manual...
-
Page 5: Figures
Figure 4 Jumper and Connector Locations ............21 Figure 5 Rear Panel IO..................33 Figure 6 Align the SO-DIMM Memory Module with the onb oard socket ..36 Figure 7 Press down on the SO-DIMM Memory Module to lock it in place .37 ECX-BW00 User’s Manual... -
Page 6: Tables
Tables Tables Table 1 ECX-BW00 Specification................17 Table 2 Jumper List ....................22 Table 3 JP1 RTC Reset Selection ..............22 Table 4 JP2 Backlight Enable Selection ............22 Table 5 JP4 Panel & Backlight Power Selection ..........22 Table 6 JP6 USB Power Selection ..............23 Table 7 JP7 ME F/W Selection................23... - Page 7 Table 54 Ad vanced Menu – DIO Configuration ..........51 Table 55 Ad vanced Menu – H/W Monitor ............52 Table 56 Power Configuration ................53 Table 57 Security Menu ..................54 Table 58 Boot Menu ....................55 Table 59 Save & Exit Menu..................56 ECX-BW00 User’s Manual...
-
Page 8: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. -
Page 9: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. - Page 10 Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. ECX-BW00 User’s Manual...
-
Page 11: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 12: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 13: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 14 Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. ECX-BW00 User’s Manual...
- Page 15 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. ECX-BW00 User’s Manual...
-
Page 16: Chapter 1 Introduction
Chapter 1 Introduction Overview The ECX-BW00 is an ECX form factor single board computer equipped with Intel' s latest Braswell SoC Quad Core Processor, Celeron® N3160, providing a performance-improved option for power-efficient platform finders. It supports triple display configuration from its 1x eDP, 1x HDMI and 1x DP outputs. In addition, it features 4x USB3.0, 2x USB2.0, 6x COM, 1 x 8-bit DIO for peripheral applications,... -
Page 17: Product Specifications
AMI uEFI BI OS Voltages monitoring Hardw are Monitor Temperature monitoring Watchdog Programmable WDT to generate System reset event Real Time Clock SoC integrated RTC Connector: 1x4‐pin Lockable Wafer Pow er Input Voltage: DC 12V Operation Temp.: 0ºC ~ 60ºC / 32ºF ~ 140ºF Operation Temp. Storage Temp.: ‐20ºC ~ 80ºC / ‐4ºF ~ 176ºF Humidity: 0% ~ 95% Certifications CE, FCC Class A Table 1 ECX-BW00 Specification ECX-BW00 User’s Manual... -
Page 18: System Block Diagram
Chapter 1 System Block Diagram Figure 1 Block Diagram ECX-BW00 User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 2 Mechanical Dimensions ECX-BW00 User’s Manual... -
Page 20: Chapter 2 Hardware Settings
No.1. To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position. ECX-BW00 User’s Manual... -
Page 21: Jumper Settings And Pin Definitions
Chapter 2 Jumper Settings and Pin Definitions For jumper and connector locations, please refer to the diagrams below. Figure 4 Jumper and Connector Locations ECX-BW00 User’s Manual... -
Page 22: Jumper Settings
SMD 6P 2R MALE TYPE 180D P-2.0mm[PINREX 222-97-03GBB1] Table 5 JP4 Panel & Backlight Power Selection Jumper Setting Status Backlight Power = +12V Backlight Power = +5V Panel Power = +3.3V Panel Power = +5V SMD 2*3P 3362*03SAGR TYPE 180D P-2.54mm [YIMTEX 3362*03SAGR] ECX-BW00 User’s Manual... -
Page 23: Table 6 Jp6 Usb Power Selection
DIP 3P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*03SAGR(6T)] Table 9 JP9 AT / ATX Power Mode Selection Jumper Status 1-2 Short ATX Mode 2-3 Short AT Mode DIP 3P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*03SAGR(6T)] ECX-BW00 User’s Manual... -
Page 24: Internal Connector Pin Assignment
Front Panel 2 Pin Header MPCIE1 Mini-PCI Express v1.2 Socket (Full Size) MSATA1 Serial ATA Port 1 mSATA Socket (Full Size, optional for MPCIE2) SATA1 Serial ATA Port 0 Connector SATA2 Serial ATA Port 1 Connector (default unmounted) ECX-BW00 User’s Manual... -
Page 25: Table 10 Bat1 Cr2032 Battery Power Input Wafer
ATX POWER SMD 4P 1R MALE 90° Pitch:3.0mm Hollow PIN [PINREX 733-97-04TBR1] Table 12 CN2 Micro-SD Card Cage Signal Nam e DAT2 CD/DAT3 DAT0 DAT1 SMT 8P Micro-SD (T-Flash) Memory Card Connector, LCP, Black, Au 10u” Plated [HOMETOM SD08F36BDA005] ECX-BW00 User’s Manual... -
Page 26: Table 13 Cn3 Edp Panel Connector
Signal Nam e MSCLK MSDAT* KBDAT KBCLK DIP 6P 180° Pitch=2.0mm WAFER [YIMTEX 503PW1*06ST-1R] Table 15 CN6 VGA Header Signal Signal DDC_DATA HSYNC VSYNC DDC_CLK SMD 16P 2R MALE Straight Type Pitch:2.0mm, Gold Flash, Black Insulator [Pinrex 222-97-08GBB1] ECX-BW00 User’s Manual... -
Page 27: Table 16 Cn7 Sim Interface Wafer For Mpcie1
Signal Nam e SMD 10P 1R 180D MALE P=1.25mm, Tin Plated, NY46, White Insulator [Pinrex 712-73-10TWB0] Table 19 CN12 HDD Power Output Wafer Signal +12V SMD MALE 4P 1R 180D P-2.0mm, Tin Plated, White Insulator [PINREX 721-93-04TWE9] ECX-BW00 User’s Manual... -
Page 28: Table 20 Cn15 Audio Input / Output Pin Header
DIP 2P 180° Pitch=2.0mm WAFER [YIMTEX 503PW1*02STR & 503PW1*02ST-1R] Table 23 CN20 COM1 RS-232/422/485 Port Wafer Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ SMD 10P 1R 180D MALE P=1.25mm, Tin Plated, NY46, White Insulator [Pinrex 712-73-10TWB0] ECX-BW00 User’s Manual... -
Page 29: Table 24 Cn21 Com2 Rs-232/422/485 Port Wafer
[Pinrex 712-73-10TWB0] Table 26 CN27 MPCIE Activity LED Pin Header Description LED+ LED- DIP 2P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] Table 27 FAN1 DC5V FAN Wafer Signal SENSE SMD 3P 180D P-1.25mm WAFER [Pinrex 712-73-03TWE0] ECX-BW00 User’s Manual... -
Page 30: Table 28 Fp1 Front Panel 1 Pin Header
Table 29 FP2 Front Panel 2 Pin Header Signal Signal Power LED + Power Button + Power Button - PWRBTN Power LED - SMB_ALERT# PLED BATLOW# SMBus Data SMBus Clock KLOCK SMD 10P 2R MALE STRAIGHT TYPE Pitch:2.54mm NY 6T[YIMTEX 3362*05SANGR] ECX-BW00 User’s Manual... -
Page 31: Table 30 Mpcie1 Mini-Pci Express V1.2 Socket (Full Size)
Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB MINI PCI-Express Connector, H:5.6mm, Gold Flash, Tape Reel [FOXCONN AS0B221-S56Q-7H] *：These pins are connected to CN7 SIM Interface directly ECX-BW00 User’s Manual... -
Page 32: Table 31 Msata1 Serial Ata Port 1 Msata Socket (Full Size, Optional For Mpcie2)
MINI PCI-Express Connector, H:9.9mm, 10u Gold Plating, Tape Reel [FOXCONN AS0B226-S99Q-7H] Table 32 SATA1 Serial ATA Port 0 Connector Signal Nam e [FOXCONN LD1807V-S52U] Table 33 SATA2 Serial ATA Port 1 Connector (default unmounted) Signal Nam e [FOXCONN LD1807V-S52U] ECX-BW00 User’s Manual... -
Page 33: Rear Panel Pin Assignments
TX3+ TX4- RJ45+TFM+LED 10/100/1000 14P DIP 90° [UDE RT7-174AAM1A(XA)] Table 36 CN14 GbE LAN2 RJ-45 Connector Signal Nam e Signal Nam e TX1+ TX3- TX1- TX2- TX2+ TX4+ TX3+ TX4- RJ45+TFM+LED 10/100/1000 14P DIP 90° [UDE RT7-174AAM1A(XA)] ECX-BW00 User’s Manual... -
Page 34: Table 37 Cn8 Usb3.0 Port-0,1 Type-A Connector
*：The power source of +USBVCC can be selected by JP6. Table 39 CN17 DisplayPort Connector Signal Name Signal Name TX0+ TX3- TX0- TX1+ AUX+ TX1- TX2+ AUX- TX2- TX3+ DisplayPort Receptacle (Female) SMT type, 20-pin, Gold 30”, 90°, Tray [WIN WIN WDPE-20F3L1BU3] ECX-BW00 User’s Manual... -
Page 35: Table 40 Cn18 Hdmi Connector
TMDS Data0+ Ground TMDS Data0– TMDS Clock+ Ground TMDS Clock– Reserved Reserved DDC_CLK DDC_DATA Ground +5 V Power Hot Plug Detect HDMI Receptacle with Flange, selective gold / matte tin 15u”, Black, HDMI Certification [ ZI HUI 282-1921Q30243] ECX-BW00 User’s Manual... -
Page 36: Chapter 3 System Installation
Hold the SO-DIMM with its notch aligned with the memory socket of the board and insert it at a 30-degree angle into the socket. Figure 6 Align the SO-DIMM Me mory Module with the onboard socket ECX-BW00 User’s Manual... -
Page 37: Figure 7 Press Down On The So-Dimm Memory Module To Lock It In Place
SO-DIMM. Lift it out of the socket. Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer. ECX-BW00 User’s Manual... -
Page 38: Chapter 4 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 39: Main Menu
F1: General H elp F2: Previous Values Sys tem date [Thu 05/05/2016] F3: Optimized Defaults Sys tem ti me [16:31:45] F4: Save & Exit ESC: Exit Access Level Admi nistrator Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. ECX-BW00 User’s Manual... -
Page 40: Advanced Menu
Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 41: Table 43 Advanced Menu - Display Configuration
Options: 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288 M, 320M, 352M, 384M, 416M, 448M, 480M, 512M DVMT Total Gfx Mem Options: 128M, 256M, Ma x Primary IGFX Boot Displa y Options: VBIOS Default, DP, HDMI, LVDS PWM Backlight Control Options: By External, By Internal ECX-BW00 User’s Manual... -
Page 42: Table 44 Advanced Menu - Super Io Configuration
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port 1 Type Options: RS232, RS422, RS485 RS485 Duplex Mode Options: Half Duplex, Full Duplex RS485 Auto Flow Control Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 43: Table 46 Ad Vanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 Serial Port 2 Type Options: RS232, RS422, RS485 RS485 Duplex Mode Options: Half Duplex, Full Duplex RS485 Auto Flow Control Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 44: Table 47 Ad Vanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; ECX-BW00 User’s Manual... -
Page 45: Table 48 Ad Vanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; ECX-BW00 User’s Manual... -
Page 46: Table 49 Ad Vanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; ECX-BW00 User’s Manual... -
Page 47: Table 50 Ad Vanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; ECX-BW00 User’s Manual... -
Page 48: Table 51 Advanced Menu - Cpu Chipset Configuration
Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. EIST Options: Disabled, Enabled CPU C state Report Options: Disabled, Enabled Max CPU C-state Options: C7, C6, C1 SOix Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Intel ® Virtualization Technology Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 49: Table 52 Advanced Menu -Sata Configuration
ESC: Exit Port 2 [Enabled] Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. SATA Controller Options: Enabled, Disabled SATA Interface Speed Options: Gen1, Gen2, Gen3 Port 1 Options: Enabled, Disabled Port 2 Options: Enabled, Disabled ECX-BW00 User’s Manual... -
Page 50: Table 53 Advanced Menu - Usb Configuration
Mass Storage Devices: Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. Legacy USB Support Options: Enabled, Disabled, Auto XHCI Legacy Support Options: Enabled, Disabled XHCI hand-off Options: Enabled, Disabled USB Mass Storage Driver Support Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 51: Table 54 Advanced Menu - Dio Configuration
Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. User Configuration Options: Enabled, Disabled DO_1 Options: Output Low, Output High DO_2 Options: Output Low, Output High DO_3 Options: Output Low, Output High DO_4 Options: Output Low, Output High ECX-BW00 User’s Manual... -
Page 52: Table 55 Advanced Menu - H/W Monitor
+VMEN : +1.365 V Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. CPU Warning Temperature Options: Disabled, 80 C, 85 C, 90 C, 95 C Smart FAN Configuration CPU FAN Setting [Manual] Options: Manual, Smart ECX-BW00 User’s Manual... -
Page 53: Power Menu
Resume By LAN De vice Options: Disabled, Enabled Resume By PCI-E Device Options: Disabled, Enabled Resume By Ring De vice Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration [Disabled] WDT Function ■ Options: Disabled, Enabled ECX-BW00 User’s Manual... -
Page 54: Security Menu
F1: General H elp Maxi mum length 20 F2: Previous Values F3: Optimized Defaults Admi nistrator Pass word F4: Save & Exit User Pass word ESC: Exit HDD Security Configuration: Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. ECX-BW00 User’s Manual... -
Page 55: Boot Menu
Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only ECX-BW00 User’s Manual... -
Page 56: Save & Exit Menu
Save Opti ons +/-: Change Opt. Save C hanges F1: General H elp Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4: Save & Exit ESC: Exit Version 2.17.1249. C opyright (C) 2016, American M egatrends, Inc. ECX-BW00 User’s Manual... - Page 57 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. ECX-BW00 User’s Manual...
- Page 58 Chapter 5 Driver Installation If your ECX-BW00 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
- Page 59 Appendix A Appendix A DIO (Digital I/O) Sample Code //***************************************************************** //ECX-BW00 DOS DIO sample program //Please compile with Microsoft(R) Visual C++ Version 1.5 & MASM611 //to utilized the program //Access Method // 32 bits memory address access //0:Low 1:High //DI_1: memory address 0xFED8C400 bit0...
- Page 60 //Read the DO pin 1~4 value into_PT_mode(); printf("Read DO_1~4 value\n"); for (i=4; i<8; i++) RetVal = read_mem_dword(MEM_BASE_ ADDRESS + addr_offset[i]); gGpioLvValue = RetVal & 0 x2; printf("DO_%d = %d\n",i-3 ,gGpioLvValue > 0); into_RL_mode(); system("pause"); //Write the DO pin 1~4 to High ECX-BW00 User’s Manual...
- Page 61 = RetVal & 0 xFFFFFFFD; write_mem_dword(MEM_BASE_ADDRESS + addr_offset[i], gGpioLvValue); printf("Read DO_1~4 value\n"); for (i=4; i<8; i++) RetVal = read_mem_dword(MEM_BASE_ ADDRESS + addr_offset[i]); gGpioLvValue = RetVal & 0 x2; printf("DO_%d = %d\n",i-3 ,gGpioLvValue > 0); into_RL_mode(); return 0; ECX-BW00 User’s Manual...
- Page 62 Neihu District, Taipei, Taiwan 114 //** //** Phone: +886-2-2799-2789 //** //********************************************************************** //********************************************************************** //========================================================== ==========// //ECX-BW00 DOS Watchdog sample program //Please compile with Turbo C 3.0 to utilized the program //========================================================== ==========// #include<stdio.h> #define SIO_CONFIG_INDEX 0x2e #define SIO_CONFIG_DATA SIO_CONFIG_INDEX+1 void UnlockSIO() outp(SIO_CONFIG_INDEX,0 x87);...
- Page 63 //Set Timer unit(0xF0 bit3(0: 1sec, 1: 60 sec) of watchdog timer by setting this bit) outp(SIO_CONFIG_INDEX,0 xF0); value=inp(SIO_CONFIG_DATA); outp(SIO_CONFIG_DATA,(value & 0xF7));//set unit sec. //Set Timer Value(0xF1 Time of watchdog timer) outp(SIO_CONFIG_INDEX,0 xF1); outp(SIO_CONFIG_DATA,0x14);//set to 20 sec (0x14) LockSIO(); ECX-BW00 User’s Manual...
