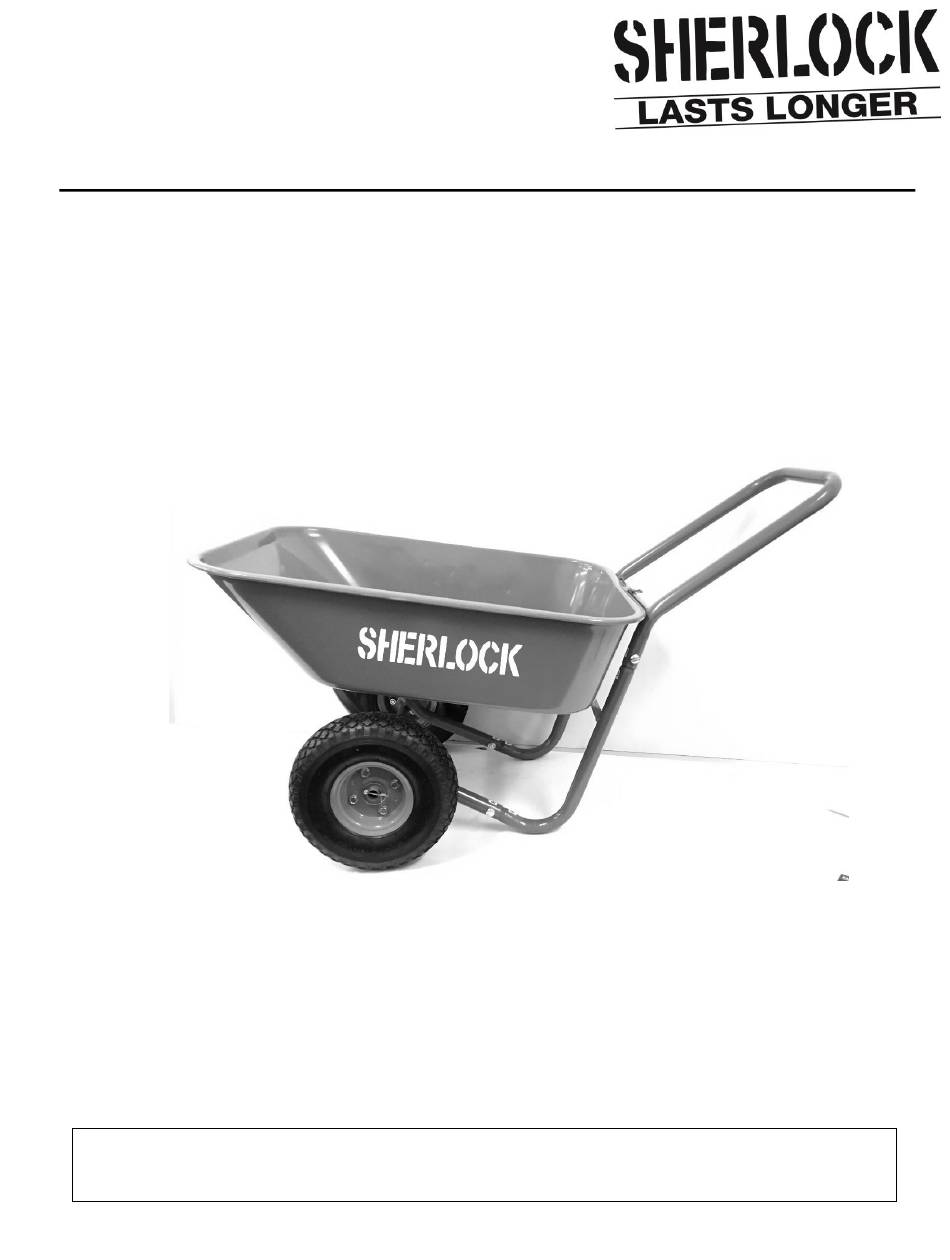

- Page 1 Instruction Manual MANBBGC45 REV B 08/12/17 MODEL: BBGC45 SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 FOR SERVICE SUPPORT PH 1300 745826 info@silvanaust.com...
- Page 2 Parts Supplied 1. Steel tray x 1 2. Wheel x 2 3. Bolt x 5 4. Small Flat Washer x 4 5. Nut x 4 6. Wing nut x 1 7. Split pin x 2 8. Large Flat Washer x 2 9.
- Page 3 Installation Step2. Find frame with (A) (B) (C) (D) end, then fit (A) (B) end to assembled parts, fix both (A) (B) ends using bolts, small washers and nuts. Step 3. Find frame with (C) (D) end, then fit to assembled parts with corresponding (C) (D) end, fix both (C) (D) ends using bolts, small washers and nuts.
- Page 4 Installation Step4. Slide steel tray into frame. Refer to photo below for tray direction. Step5. Fix tray to frame using bolt and wing nut. SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144...
