Nexus 1500+ Quick Start Manual

I/O Option Card Quickstart Guide

Installation Steps

The Option cards are inserted into their associated Option card slots in the back of the
meter. See the note on the next page for Option card slot assignments.
IMPORTANT! Remove Voltage inputs and power supply to the meter before
performing card installation.
IMPORTANT! Supprimer les entrées de tension et l'alimentation au compteur avant
d'effectuer l'installation de la carte.
1. Remove the screws at the top and the bottom of the Option card slot covers.
2. There is a plastic "track" on the top and the bottom of the slot. The Option card fits
into this track.
CAUTION! Make sure the I/O card is inserted properly into the track to
avoid damaging the card's components.
3. Slide the card inside the plastic track and insert it into the slot. You will hear a click
when the card is fully inserted. Be careful: it is easy to miss the guide track. Refer

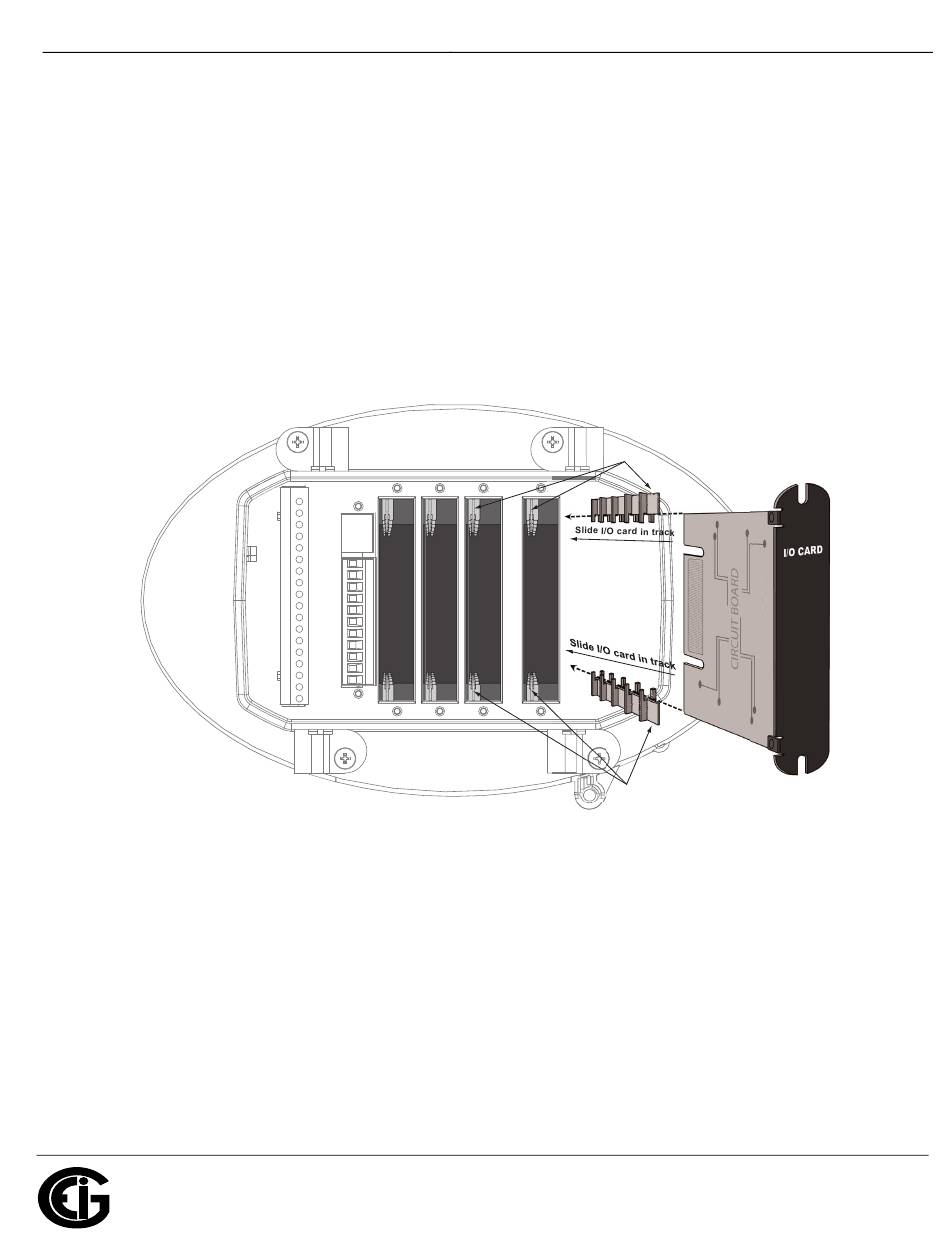

to the above drawing.
Refer to the meter's User Manual for instructions on configuring the I/O Cards.
