- Page 1 Installation and operating instructions S-Box Version: V1.20180627 30322616-02-EN Read and follow these operating instructions. Keep these operating instructions in a safe place for later reference.
- Page 2 Company details Document Installation and operating instructions Product: S-Box Document number: 30322616-02-EN Original language: German Copyright © Müller-Elektronik GmbH & Co.KG Franz-Kleine-Straße 18 33154 Salzkotten Germany Phone: ++49 (0) 5258 / 9834 - 0 Fax: ++49 (0) 5258 / 9834 - 90 Email: info@mueller-elektronik.de...
-
Page 3: Table Of Contents
Table of contents Table of contents Product description System requirements Controls Mounting and cabling S-Box with Sub-D connector with joystick S-Box with Sub-D connector without joystick S-Box with CPC connector Technical specifications Technical data for the S-Box Connector pin assignment 3.2.1... -
Page 4: Product Description

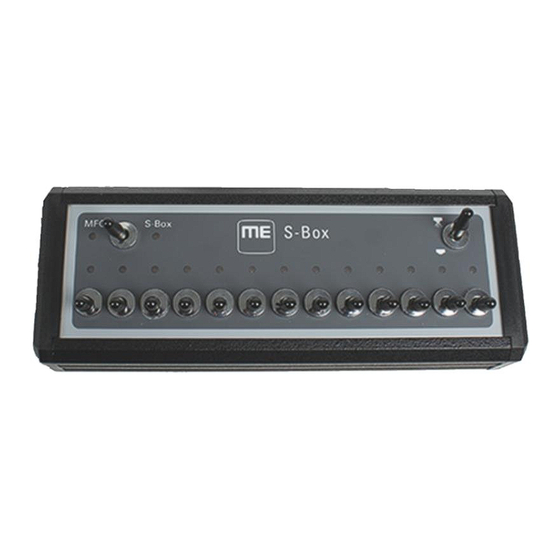

The S-Box is a section switching box with mechanical switches for the control of sections and the main switch of an ISOBUS sprayer. The S-Box can be also operated in addition to the ISOBUS joystick or separately for the control of sprayer sections. - Page 5 S-Box The S-Box is active. The S-Box symbol is visible on the work screen of the sprayer. The job computer evaluates the current switch positions of the section main switch and the section switches.
-
Page 6: Mounting And Cabling
S-Box with Sub-D connector with joystick Mounting and cabling There are three different ways you can install the S-Box: ▪ Connect the S-Box to a joystick connected to the terminal via a Sub-D connector. ▪ Connect the S-Box to a terminal via a Sub-D connector. -
Page 7: Technical Specifications
Technical specifications Technical data for the S-Box Technical specifications Technical data for the S-Box Parameter Value Power supply 10.5 V - 16 V Current consumption Max. 0.7 A Temperature -20 °C – +70 °C Housing Aluminium continuous casting with plastic end caps... -
Page 8: Item Overview
30322616 S-Box, 13 sections, with 9-pin Sub-D connector 30322618 S-Box, 18 sections, with 9-pin Sub-D connector 30322634 S-Box, 7 sections, with 9-pin CPC connector for third-party terminals 30322638 S-Box, 9 sections, with 9-pin CPC connector for third-party terminals 30322640 S-Box, 10 sections, with 9-pin CPC connector for third-party terminals... -
Page 9: Disposal
Disposal Disposal When it has reached the end of its service life, please dispose of this product as electronic scrap in accordance with all applicable waste management laws. V1.20180627...
