KingCraft ZJ4116QA Instruction Manual

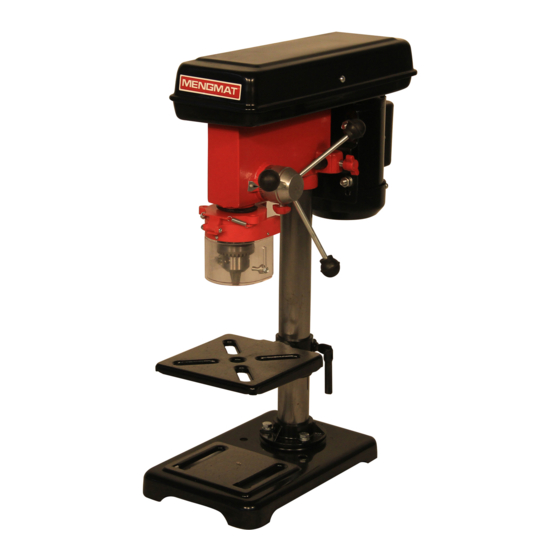

9 speed drill press
Hide thumbs
Table of Contents

Advertisement

Quick Links

9 SPEED DRILL PRESS
Item# 7149
Model # ZJ4116QA
PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS TOOL.
TABLE OF CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZJ4116QA and is the answer not in the manual?

Questions and answers

Related Manuals for KingCraft ZJ4116QA

Summary of Contents for KingCraft ZJ4116QA

  • Page 1 9 SPEED DRILL PRESS Item# 7149 Model # ZJ4116QA PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. TABLE OF CONTENTS...

  • Page 2: Table Of Contents

    Index Important Safety Instructions Safety Instruction for Drill Press General Safety Rules List of Main Parts Tech. Specifications, Contents of Packaging Assembly and Operation Maintenance Trouble Shooting Service Center Warranty Information Warranty Card P. 1 P. 2 P. 3 - 7 P.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. WARNING: READ ALL INSTRUCTONS. Failure to follow the IMPORTANT SAFEGUARDS listed BELOW, and other basic safety precautions, may result in serious personal injury. 1.

  • Page 4: When Installing Or Moving The Drill Press

    perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

  • Page 5: Think Safety

    Use only one piece, cup-type, hole cutters. Do not use fly cutters or multi-part hole cutters as they can come apart or become unbalance in use. Keep speed below 1500rpm. Drum sanders must never be operated on this drill press at a speed greater than 1800rpm.
  • Page 6 side of the column. Whenever possible, position the workpiece to contact the left side of the column – If it is too short to the table, use table slots or clamping ledge around the outside edge of the table. When using a drill press vise, always fasten it to a table. Never do any work “Freehand”...

  • Page 7: Grounding Instructions

    Wait for tool bit to stop spinning. Unplug the drill press. Make workshop child-proof. Lock the shop. Disconnect master switches. Remove the yellow switch key. Store it away from children and others not qualified to use the tool. Electrical Requirements General Electrical Connections DANGER: To reduce the risk of electrocution: 1.
  • Page 8 NOTE: Make sure the proper extension cord is used and is in good condition. The use of any extension cord will cause some loss of power. To keep this to a minimum and to prevent overheating and motor burnout, use the table as below to determine the minimum wire size (A.W.G.) extension cord.

  • Page 9: General Safety Rules

    GENERAL SAFETY RULES WARNING! Read, understand and save all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 10 with a switch is dangerous and must be repaired. 4. Place the switch in locked or OFF position before making any adjustments, changing accessories or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. 5.

  • Page 11: List Of Main Parts

    LIST OF MAIN PARTS Before attempting to use, familiarize yourself with all the operating features and safety requirements of your drill press. 1. Belt tension lever - The belt tension lever is used to release or tighten belt tension. 2. Belt tension knob - Belt tension knobs on both sides of the pulley housing lock the belt tension lever in place.

  • Page 12: Technical Specifications

    TECHNICAL SPECIFICATIONS: Model Number ZJ4116QA Rating Voltage 120 Volts, 60Hz, AC Chuck Size 5/8” Net Weight 46.2 Lbs Number Speeds Spindle Stroke 2” Spindle Taper CONTENTS OF PACKAGING Check all loose parts from the box with the list below. Assemble according to the instruction on the following pages.

  • Page 13: Assembly And Operation

    ASSEMBLY AND OPERATION Warning! For your own safety, do not connect the drill press to the power source until the machine is completely assembled and the entire instruction manual has been read and understood. Assembly 1. Assemble the column (A) Fig. 4, to drill press base (B) as shown, using the three hex head cap screws (C).
  • Page 14 Fig. 7A 5. Thread the three pinion shaft handles (H) Fig. 8, into the three holes located in the handles holder (J) as shown. Fig. 8 6. IMPORTANT: Make certain the spindle taper (K) Fig. 9, and tapered hole in the chuck (L) are clean and free of any grease, lacquer or rust preventive coatings.

  • Page 15: Table Adjustments

    Fastening drill press to supporting surface If during operation there is any tendency for the machine to tip over, slide or walk on the supporting surface, the machine base must be secured to the supporting surface with bolts, through the two holes (A) Fig. 11, located in the machine base.
  • Page 16 5. After the belt is positioned on the desired steps the motor and spindle pulleys, push motor (D) Fig. 14, away from the drill press head until the belt is properly tensioned and tighten tension knob (B). The belt should be just tight enough to prevent slipping.
  • Page 17 Using vise for clamping the workpiece Take out the 2-1/2” vice from the packaging, and put it on the work table. Use four bolts to fasten the vice on the work table, and adjust the position of vice on the work table at the desired position when operating.

  • Page 18: Trouble Shooting

    MAINTENANCE WARNING: When servicing use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING To avoid serious personal injury make sure the drill press is turned OFF and the cord is unplugged from the power source before performing any maintenance or adjustment.

  • Page 19: Environmental Protection

    If you have any question in regards to the operation of this power tool or are in need of a spare part please contact our service center at: Wachsmuth & Krogmann, Inc. Tel: 1-888-367-7373 (Business hours Mon-Fri 9:00am - 4:00pm CT) Website: http://www.wk-usa.com ENVIRONMENTAL PROTECTION If the tool should no longer work at all, please make sure that it is disposed in an...
  • Page 20 LIMTED WARRANTY Thank you for purchasing a top quality KingCraft product. This 9 Speed Benchtop Drill Press tem #7149 was tested and meets our stringent quality standards. This product is warranted to be free from manufacturing defects in original materials, including original parts, and workmanship until June 20, 2006 or 1 year with proof of purchase.

  • Page 21: Warranty Card

    WARRANTY CARD 9 Speed Benchtop Drill Press, item # 7149, model # ZJ4116QA In case you find this product to be defective please send it within the warranty period to our service center. To avoid transport damages please send the product in the original packaging. In return you will receive your repaired item, a new product or a refund.
