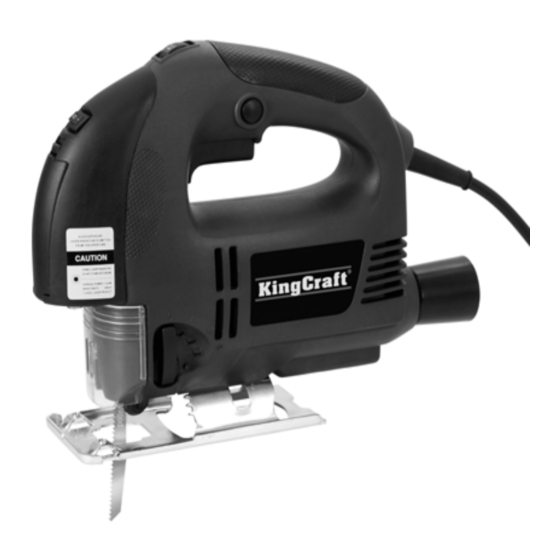

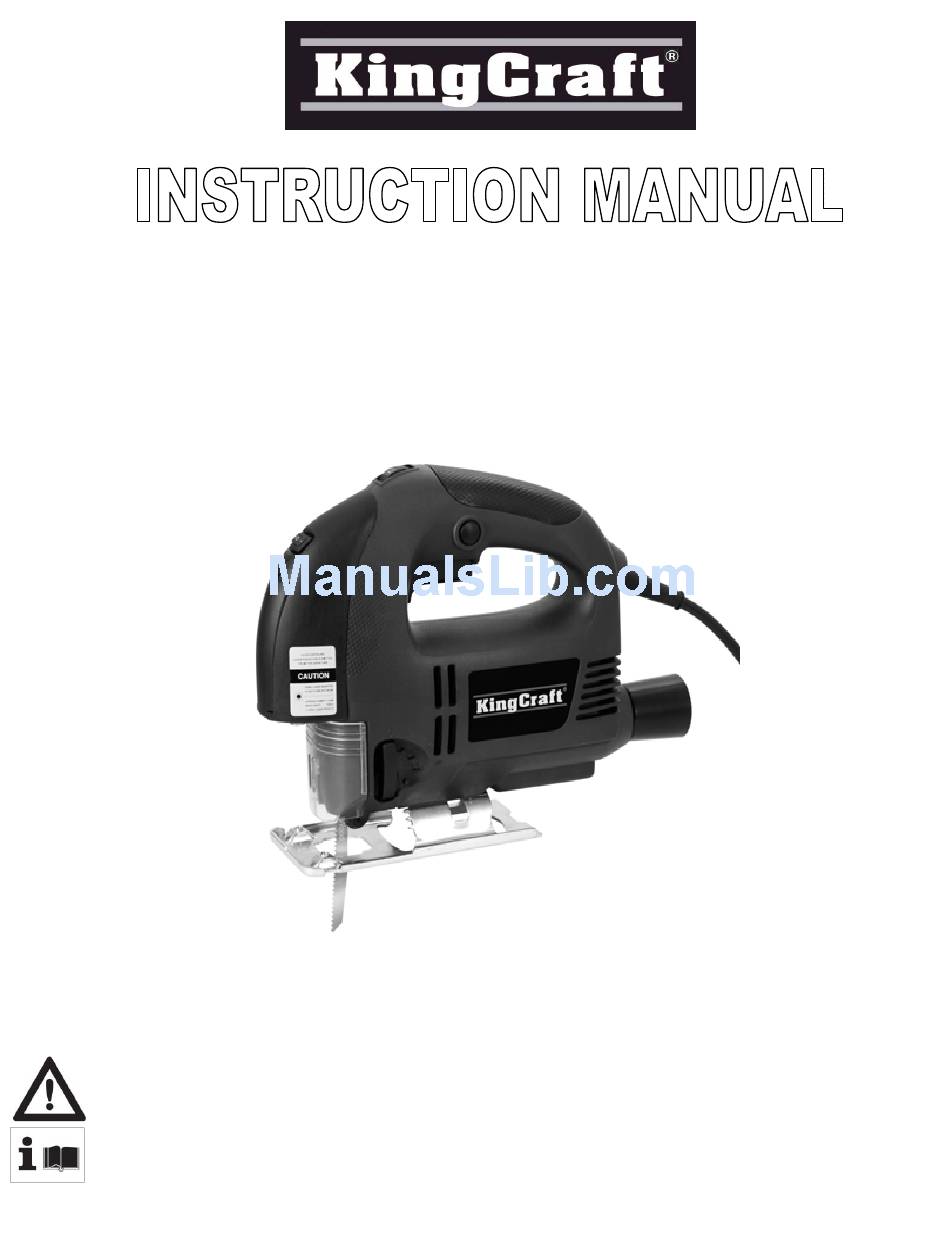

- Page 1 5.5 Amp Orbital Jigsaw with Laser Item# 5926-06 Model # MIQ-FE-65 PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Important Safety Instructions Rules for Safe Operation General Safety Rules List of Main Parts, Technical Specifications, Contents of Packaging Adjustments, Inserting and Removing Saw Blades Operation Maintenance and Service Center Warranty Information Warranty Card P. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND SAVE THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. Safe operation of this power tool requires that you read and understand this operators manual and all labels affixed to the tool. Safety is a combination of common sense, staying alert, and knowing how your Jigsaw works. -
Page 4: Save These Instructions
RULES FOR SAFE OPERATION SAVE THESE INSTRUCTIONS WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints, •... -
Page 5: Electrical Safety
GENERAL SAFETY RULES WARNING! Read, understand and save all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 6 5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations. 6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. LASER SAFETY 1.
-
Page 7: List Of Main Parts
6. Cutting Mode Selector 7. Guide Plate 8. Safety Guard 9. Laser Guide 10. Laser Battery Compartment TECHNICAL SPECIFICATIONS: Item Number 5926-06 Model Number MIQ-FE-65 Rating Voltage 120 VAC Frequency 60Hz 5.5A No load speed 500~3000/SPM Gross Weight 5 lbs. -
Page 8: Adjustments, Inserting And Removing Saw
ADJUSTMENTS Inserting and Removing Saw Blades The following is a guide for installation and removal of saw blade. Warning: Before installing or changing a blade, be sure the saw is unplugged from the power supply. 1. Loosen the two blade lock bolts (use hex key supplied) enough for a blade to be removed or inserted. -
Page 9: Variable Speed Control
OPERATION How to Start Jigsaw 1. Before you start make sure your saw blade and guard is secure. 2. Plug cord into power outlet. 3. Place saw near cutting surface. Make sure saw blade is down. 4. Position Speed Adjust Dial to desired stroke rate. 5. -
Page 10: Bevel Cutting
Bevel Cutting Warning: Before adjusting the cutting angles, be sure the saw is unplugged from the power supply. The base plate can be tilted to cut any angle between 0 and 45 degrees right and left. Loosen the base plate adjustment screw and then rotate the base plate left or right to the desired angle. -
Page 11: Environmental Protection
Laser Guide Line The saw is equipped with a battery powered laser guide which is designed to aid alignment of the blade with your cutting line. Push the rocker switch located on the battery compartment cover of the laser guide to turn it On or Off. To replace the batteries, pull the upper part of the battery compartment cover up and then slide the lower part of the battery compartment cover away from the compartment. -
Page 12: Limited Warranty
LIMITED WARRANTY Thank you for purchasing a top quality KingCraft product. This Orbital Jig Saw with Laser item #5926-06 was tested and meets our stringent quality standards. This product is warranted to be free from manufacturing defects in original materials, including original parts, and workmanship until July 31, 2008 or 2 years with proof of purchase excluding saw blade. -
Page 13: Warranty Card
WARRANTY CARD Kingcraft Orbital Jigsaw with Laser, Item # 5926-06, Model #MIQ-FE-65 In case you find this product to be defective please send it within the warranty period to our service center. To avoid transport damages please send the product in the original packaging.
