Optelecom 9000 Series
Installation and Operation Manual

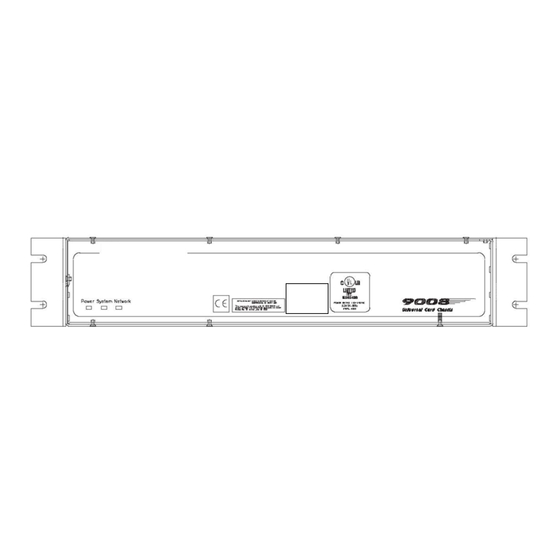

Model 9008
A compact 19" 2RU rack-mount chassis configured with eight horizontal slots
compatible with TKH Security USA Series 900 rack-mount cards. The 9008
features a built-in power supply and dual fans.
UM50309, Manual 9008, Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optelecom 9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TKH Optelecom 9000 Series

Summary of Contents for TKH Optelecom 9000 Series

  • Page 1 Installation and Operation Manual Model 9008 A compact 19” 2RU rack-mount chassis configured with eight horizontal slots compatible with TKH Security USA Series 900 rack-mount cards. The 9008 features a built-in power supply and dual fans. UM50309, Manual 9008, Rev. C...

  • Page 3: Table Of Contents

    Table of Contents Section Page Safety Instructions Instrucciones de Seguridad Sicherheitsanleitungen Consignes de Sécurité Additional Chassis Safety Information Fiber Information External Wiring Information Optical Output Power Information Functional Description 9008 Indicator and Connector Locations Installation and Operation of the 9008 Chassis Operation of the 9008 with the Network Management System Specifications for the Model 9008 9008 Chassis Dimensions...

  • Page 4: Safety Instructions

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. TKH Security Solutions USA assumes no liability for the customer’s failure to comply with any of these safety requirements.

  • Page 5: Instrucciones De Seguridad

    Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad. TKH Security Solutions USA no asume ninguna responsabilidad si el cliente no cumple con alguno de estos reequisitos de seguridad.

  • Page 6: Sicherheitsanleitungen

    Einheit betrieben, gewartet oder repariert wird. Falls Vorsichtsmassnahmen, Warnungen oder Anweisungen in diesem Handbuch nicht befolgt werden, verstösst dies gegen die Konstruktions, und Herstellungsstandards und erfolgt im gegensatz zum vorgesehenen Verwendungszweck dieser Einheit. TKH Security Solutions USA übernimmt keine Haftung für das Verabsäumnis des Kunden, diese Sicherheitsanforderungen einzuhalten.

  • Page 7: Consignes De Sécurité

    Le non-respect d’une précaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. TKH Security Solutions USA n’est pas responsable du non-respect de ces consignes de sécurité par le client.

  • Page 8: Additional Chassis Safety Information

    Additional Chassis Safety Information 1. When all covers are closed and fastened, there are no accessible hazardous live parts. The 9008 chassis provides the enclosure required to prevent access to hazardous live parts, comply with all spacing requirements, and provide ample wiring space with a minimum flame rating of 94V-0.

  • Page 9: Fiber Information

    Fiber Information This unit was manufactured with attention to fiber cleanliness by TKH Security Solutions USA. Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections;...

  • Page 10: Optical Output Power Information

    Optical Output Power Information Many of the I/O cards used in this chassis have optical emitters. The table below illustrates the wavelengths and maximum output power of the optical devices that may be present on installed I/O cards. Note: Most I/O cards have a continuous optical output, however some low speed, data only I/O cards have outputs that are only active during data transmission.

  • Page 11: Functional Description

    Functional Description The 9008 chassis is designed to provide mechanical and electrical support for TKH Security USA Series 9000 rack-mount cards. It is designed specifically for EIA 19" rack-mount situations where eight or fewer card slots are required. The chassis is only 2RU high and the power supply is built in, so that no slots are taken up by a power supply.

  • Page 12: 9008 Indicator And Connector Locations

    9008 Indicator and Connector Locations IGURE 1. POWER INDICATOR green This LED illuminates when 6VDC power is applied to the card via the backplane. 2. SYSTEM INDICATOR red/green green This LED illuminates when no cards in the chassis are reporting faults to the NMS software.

  • Page 13: Installation And Operation Of The 9008 Chassis

    This will help to maintain acceptable operating temperatures. Typically, the 9008 chassis will be the only TKH Security USA chassis installed in a 19-inch rack. If more than eight slots are required for rack mounting Series 9000 cards, the 9002 chassis and the available 9030B or 9030BF power supplies should be used.
  • Page 14 Wiring Criteria In designing systems, care should be taken to insure that wire feeds are long and flexible enough to allow for maintenance and removal of the slide-in cards. Readily available miniature 75 ohm coax cable for video inputs is easier to bundle and manage.
  • Page 15 If you have a system that cannot have power removed for maintenance, only properly trained personnel may eliminate steps 3, 15 and 16, performing a hot swap of the replacement card without endangering the system. Insure that you are grounded and that you are taking the necessary steps to prevent electrostatic damage to the equipment.

  • Page 16: Operation Of The 9008 With The Network Management System

    Operation of the 9008 with the Network Management System The 9008 chassis does not interact directly with any of the versions of the software. It only provides the signal paths for communications from the management card (optional, required for operation of the Network Management Software) and the power busses for the cards from the power supply.

  • Page 17: Specifications For The Model 9008

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. TKH Security USA assumes no liability for the customer's failure to comply with any of these safety requirements.

  • Page 18: 9008 Chassis Dimensions

    9008 Chassis Dimensions...
  • Page 20 TKH Security Solutions www.tkhsecurity.com Siqura B.V. TKH Security Solutions USA Zuidelijk Halfrond 4 • 2801 DD Gouda 12920 Cloverleaf Center Drive • Germantown The Netherlands Maryland 20874 USA Telephone: +31 182 592 333 Telephone: +1 301 444 2200 Fax: +31 182 592 123...
