Summary of Contents for MicroPower Access BMU Series

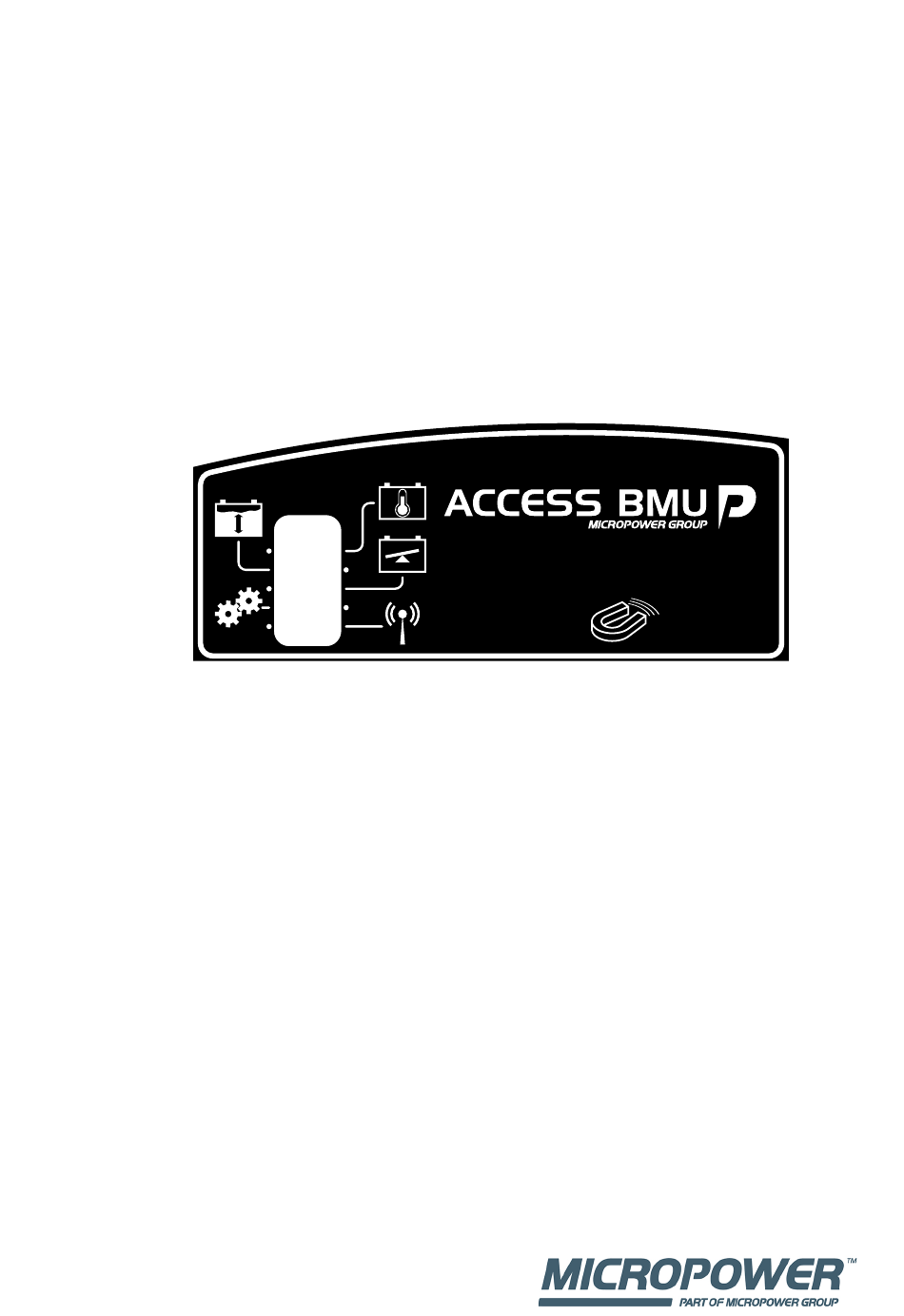

- Page 1 Access™ BMU Battery Monitoring Unit BMU PRO UL, WET Soldered Instruction for use ......3 Approvals ........10 Figures ........9 Doc: 09912018 rev 5 Print PN: 6515062...
- Page 3 Note: Access™ BMU - Information that is important without being related to safety. Instruction for use General General Always keep the manual in the vicinity of the product. Access™ BMU is designed for monitoring vented The manual contains important lead-acid batteries. The unit is mounted on the information about safety and user battery and monitors current, voltage, temperature, instructions.
-
Page 4: Installation
Installation Warning Risk of explosion! Warning Do not smoke, cause sparks or use a naked flame Electrolyte is corrosive! in the vicinity of batteries. If electrolyte comes into contact with the eye, Arcing can injure the operator or damage the damage can occur very quickly. - Page 5 2. Install the current sensor (Fig. 1 pos ) between 6 Drill a 12 mm (0.472 inch) hole in the top of the the midmost cells. See Installation of the battery cell for the electrolyte level and battery threaded inserts. temperature sensor.
- Page 6 Connecting to a network Activate Activate connection on the Access™ BMU to be connected on the network: On delivery, Access™ BMU is connected to a 2 Hold a strong magnet over the magnetic switch factory set network. The charging parameters and other settings in Access™...
-
Page 7: Status Indicator
cable (Fig. 1 pos ) from the battery’s positive 4. Access™ BMU is now reset to the factory set terminal. network. 3. Take away the magnet. Status indicator Status indicator on the control panel. See Access™ BMU. Indica- Status Cause Action tion a. -
Page 8: Operation
Warning regulations apply and must be followed. Risk of corrosive damage! Contact information Batteries contain corrosive electrolyte. Micropower E.D. Marketing AB Use requisite protective clothing when working on Idavägen 1, SE-352 46 Växjö, Sweden batteries. Phone: +46 (0)470-727400 e-mail: support@micropower.se www.micropower-group.com... - Page 9 Figures Fig. 1 Access™ BMU installed on the battery Fig. 2 Access™ BMU Fig. 3 Battery, cross section...
-
Page 10: Fcc/Ic Information
Approvals FCC/IC information The product is FCC/IC registered and contains FCC ID: B7WACCESS, IC: 10687A-ACCESS. Warning Changes/modifications not approved by the responsible party could void the user’s authority to operate the equipment. This transmitter must not be relocated or operated in conjunction with any other antenna or transmitter. -
Page 11: Declaration Of Conformity
Battery monitoring unit. Brand name MP Access BMU, MP Access BMU Basic, MP Access BLU Manufacturer MICROPOWER AB, Idavägen 1, S-352 46 VÄXJÖ SWEDEN, Tel +46(0)470-727400, FAX +46(0)470-727401 The following standards and /or technical specifications have been applied: EMC - Standard...
