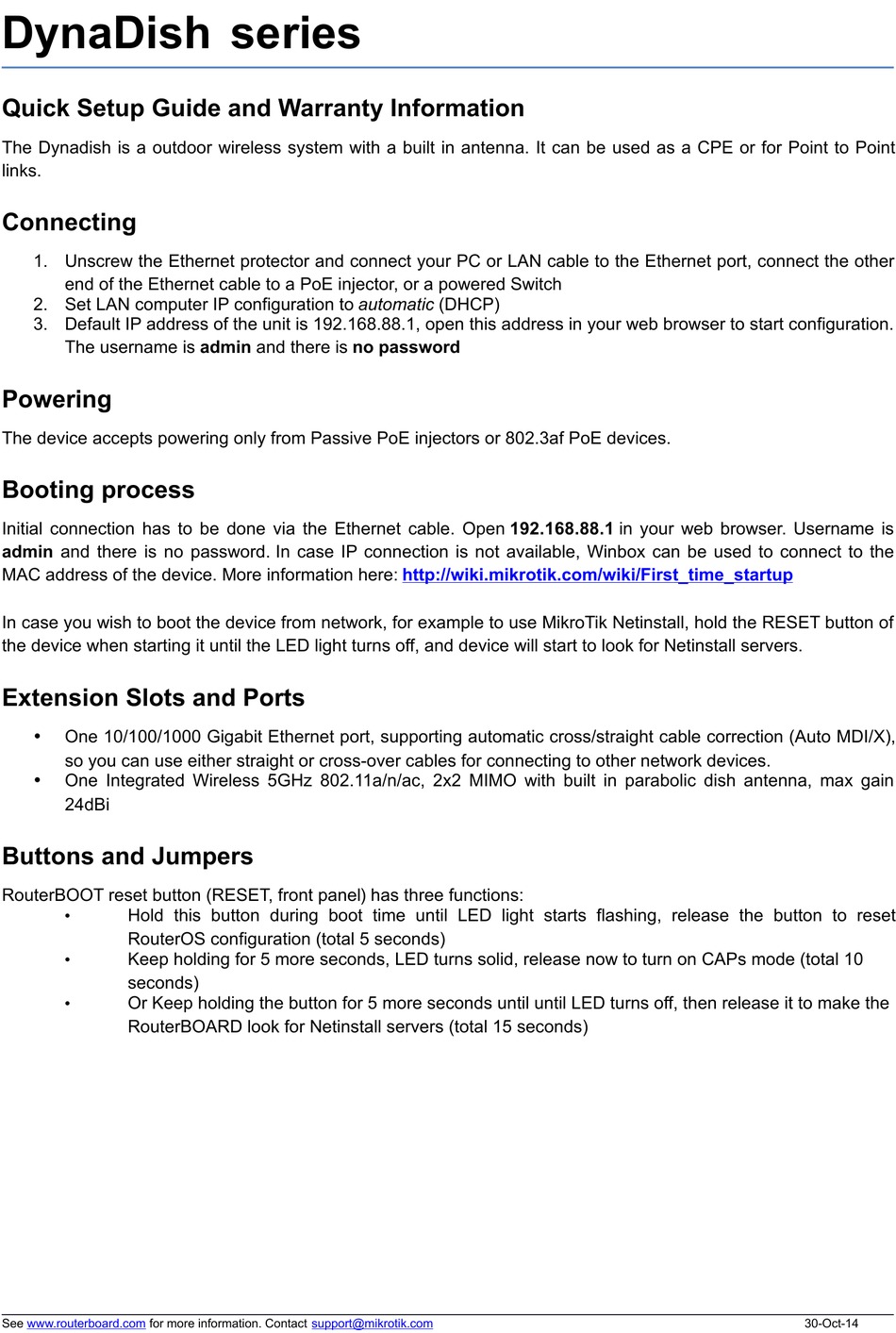

DynaDish series
Quick Setup Guide and Warranty Information
The Dynadish is a outdoor wireless system with a built in antenna. It can be used as a CPE or for Point to Point
links.
Connecting
1. Unscrew the Ethernet protector and connect your PC or LAN cable to the Ethernet port, connect the other
end of the Ethernet cable to a PoE injector, or a powered Switch
2. Set LAN computer IP configuration to automatic (DHCP)
3. Default IP address of the unit is 192.168.88.1, open this address in your web browser to start configuration.
The username is admin and there is no password
Powering
The device accepts powering only from Passive PoE injectors or 802.3af PoE devices.
Booting process
Initial connection has to be done via the Ethernet cable. Open 192.168.88.1 in your web browser. Username is
admin and there is no password. In case IP connection is not available, Winbox can be used to connect to the
MAC address of the device. More information here:
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of
the device when starting it until the LED light turns off, and device will start to look for Netinstall servers.
Extension Slots and Ports
One 10/100/1000 Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X),

so you can use either straight or cross-over cables for connecting to other network devices.
One Integrated Wireless 5GHz 802.11a/n/ac, 2x2 MIMO with built in parabolic dish antenna, max gain

24dBi
Buttons and Jumpers
RouterBOOT reset button (RESET, front panel) has three functions:
Hold this button during boot time until LED light starts flashing, release the button to reset
•
RouterOS configuration (total 5 seconds)
Keep holding for 5 more seconds, LED turns solid, release now to turn on CAPs mode (total 10
•
seconds)
Or Keep holding the button for 5 more seconds until until LED turns off, then release it to make the
•
RouterBOARD look for Netinstall servers (total 15 seconds)
See www.routerboard.com for more information. Contact
http://wiki.mikrotik.com/wiki/First_time_startup
