Summary of Contents for Jedia JFS-381

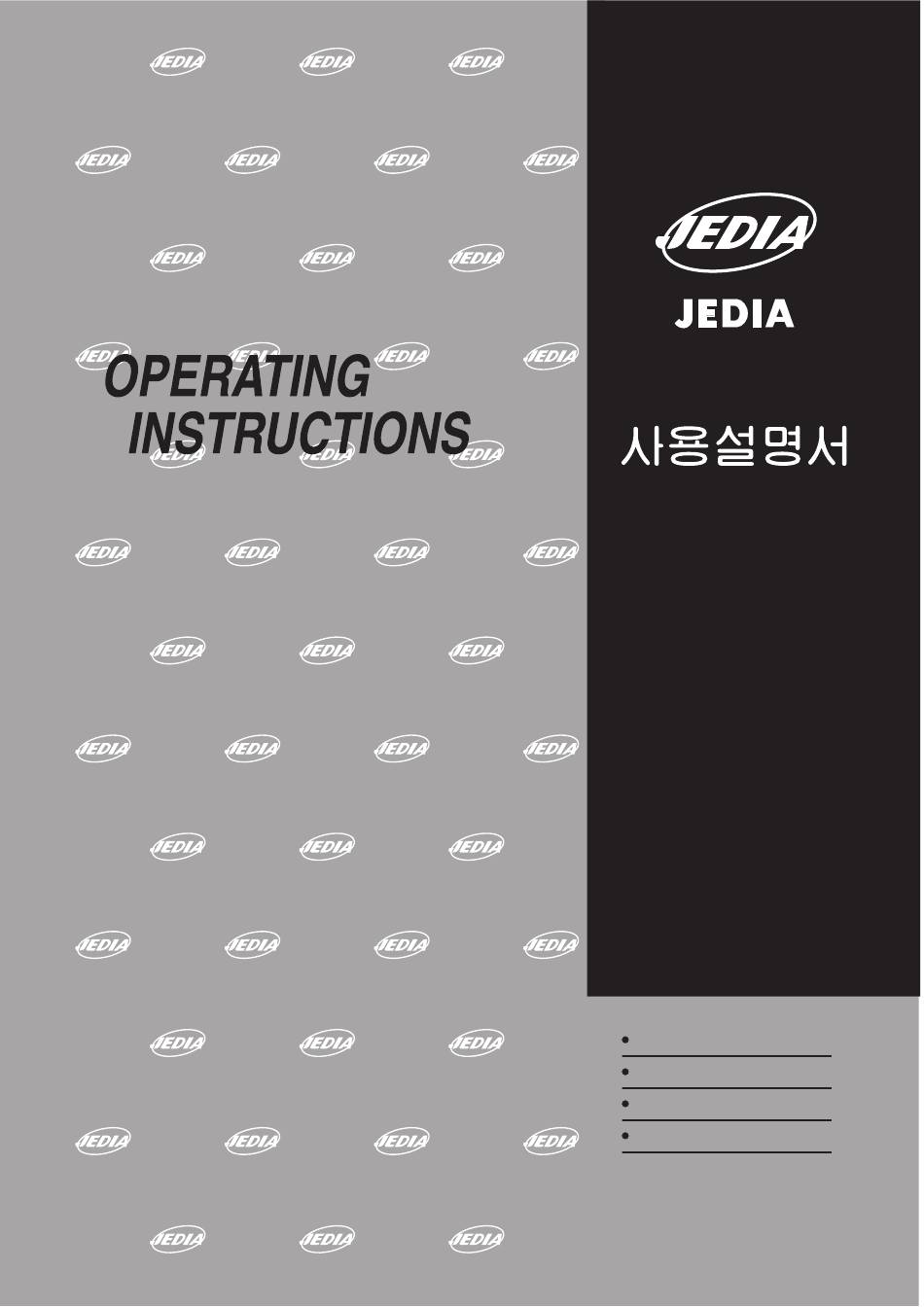

- Page 1 FAULT STAND-BY AMP SWITCHER JFS-381 WWW.JEDIA.COM...
- Page 2 AUTION AVIS SAFETY INSTRUCTIONS FEATURES RONT PANEL CONTROLS EAR PANEL CONTROLS YSTEM CONNECTIONS(시스템 연결 방법) PECIFICATIONS LOCK DIAGRAM JFS-381 FAULT STAND-BY AMP SWITCHER FAULT INDICATORS Stand-by AMP-1 AMP- AMP- AMP- AMP- 5 AMP- AMP-7 AMP- Ready Buzzer POWER...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 안 전 사 항 Read all safety instruction before operating the JFS-381. 제품을 운용하기전에 모든 안전사항을 읽어 보십시오. 1. Install equipment as follow conditions. 1. 이런 장소에 설치하여 주십시오. Install at the place, not bending curved. 진동이나 경사가 심하지 않고 바닥이 평평한 장소. -
Page 4: Power Switch
RONT PANEL CONTROLS JFS-381 FAULT STAND-BY AMP SWITCHER FAULT INDICATERS Stand-by AMP-1 AMP- AMP- AMP- AMP- 5 AMP- AMP-7 AMP- Ready Buzzer POWER 1. POWER SWITCH 1. 전원 스위치 Provides power to the unit. 기기에 전원을 공급하는 스위치 입니다. 2. BUZZER OFF SWITCH 2. - Page 5 EAR PANEL CONTROLS Input-8 Input-7 Input-6 Input-5 Input-4 Input-3 Input-2 Input-1 DC POWER 24V/0.5A AUDIO CAUTION CAUTION INPUT RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE STAND-BY OR ELECTRIC SHOCK DON'T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. AMP-8 AMP-7 AMP-6...
- Page 6 TO REDUCE THE RISK OF FIRE OR ELECTRIC CHIME RISK OF ELECTRIC SHOCK MADE IN KOREA MAX 0.45A SHOCK DON'T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. LED PWR 220VAC 240VAC DO NOT OPEN JFS-381 Input-8 Input-7 Input-6 Input-5 Input-4 Input-2 Input-1 Input-3 DC POWER 24V/0.5A...
- Page 7 PECIFICATIONS TECHNICAL Capacity 8 Main Amplifiers 1 Stand-by Amplifier Audio input / AMP INPUT 1 : 1 AMP output / SPK LINE 1 : 1 Power Consumption GENERAL Power(option) 120V/220V/230V/240VAC 50-60Hz 24VDC Dimensions 483(W) x 133(H) x 350(D)mm 19(W) x 5.2(H) x 13.8(D)inch Weight(kg/lbs) 7.0 / 15.4 NOTE...
-
Page 8: Lock Diagram
LOCK DIAGRAM (블럭도) STAND-BY AMP AMP1~8 AMP INPUT AUDIO INPUT AMP INPUT FROM FROM AMP OUT AMP OUTPUT SPK LINE +24V +24V FAULT FAULT FD-20 FD-20 Relay Contact Relay Contact BUZZER ON/OFF BUZZER Delay Delay Ready LED AC POWER POWER 50-60Hz(OPTION) TRANS 120V/220V/230V/240VAC... - Page 9 4M-OP202080...
