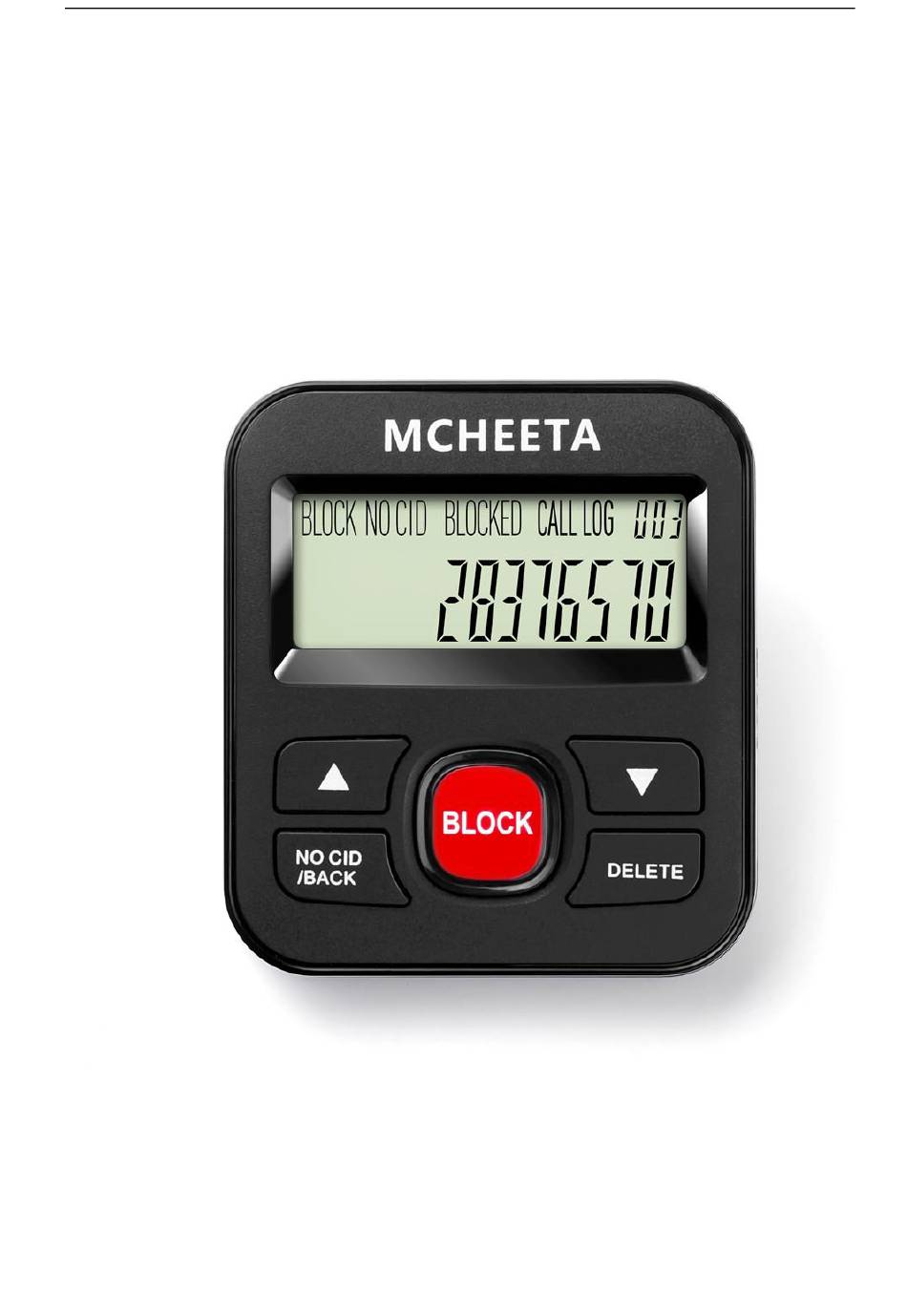

- Page 1 Call Blocker User Manual Model：CT-CID801...
- Page 2 INSTALLATION 1. Series Set Up 1.1 Unplug the line from your telephone.(Don't touch the other end on the wall.) 1.2 Insert the line into “LINE” port of call blocker. 1.3 Insert the supplied short cable into “TEL” port, placing the other end into your telephone.
- Page 3 2. Parallel Set UP If there is no ringtone or the ringtone is intermittent, try parallel set up. 1. Unplug the your phone line from the wall socket. Connect the splitter to the wall socket. 2. Insert your phone line to your telephone. 3.
- Page 4 FUNCTIONS Large Capacity Block all nuisance calls. Creates a blacklist of unwanted calls. Add or Remove Blocked Number Manually enter or remove numbers to/from the Blocking list. Block Area Code Blocks the Area Code or the first few digits of a incoming calling number. (Hint: Limited to 10 Groups) Ring Setting You can choose 1-Ring or 0-Ring for blocked calls.

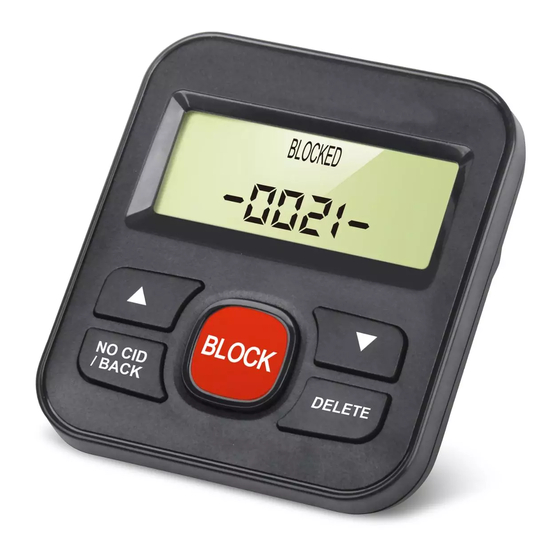

- Page 5 DISPLAY ① ： If the “NO CID” feature is engaged, display shows “BLOCK NO CID” If the phone number shown in the display is blocked, the display ②: shows “BLOCKED” ③ ： Call LOG 003 is the sequential number assigned to the recorded telephone number ④：...
- Page 6 OPERATIONS 1. Recorded Calls While receiving new incoming calls, the telephone will record the number automatically and display the number and also count the numbers. 1.1 View all recorded numbers Press “UP/DOWN” arrow to view numbers. The "CALL LOG"+ count will shows on display, Call LOG 003 is the sequential number assigned to the recorded incoming calls, for example "CALL LOG 003", which means this call is the second number called.
- Page 7 turned on. ( Warning: you may stopped ALL calls from coming in after turn on BLOCK NO CID.) Display of the LCD Screen Number of blocked calls and the BLOCK NO CID is turned off. Number of blocked calls and the BLOCK NO CID is turned on.
- Page 8 Hint: The blocker cannot duplicate numbers to the blacklist, the screen will show “Rep” when a number has been repeated. 4. Review and Delete Block Call Numbers On the BLOCKER, press “BLOCK” button first, then press UP/DOWN arrow to view blocked numbers. To remove a blocked number from the blacklist, select the number and press DELETE twice.
- Page 9 WARNING - If a area code has been added to blacklist, ALL CALLS from that area code will be blocked. If there have families or friends from that area, do not use this features. 6. Adjust Display Brightness The default lightness is LCD 3. There are five levels of brightness.
- Page 10 FAQ (Frequently Asked Question) 1. Q: how to unblock some accidentally blocked numbers? A: Hit "BLOCK" button first, then hit UP or DOWN arrow to view the blacklist. Numbers are stored in numerical order. Hit "DELETE" twice to remove the listed number. 2.
- Page 11 4. Q. We got a busy signal when calling the a number, no ringing tone? A: Try to switch to “1 ring” status. Press “NO CID/BACK” key for 3 seconds until “0 ring” shows on display, then use UP/DOWN arrow to choose “1 ring”.
- Page 12 click on the star button, enter the phone number, followed by the pound button to save. If there is any questions about the service or the product, please kindly contact us any time, we will response the email within 24 hours.
