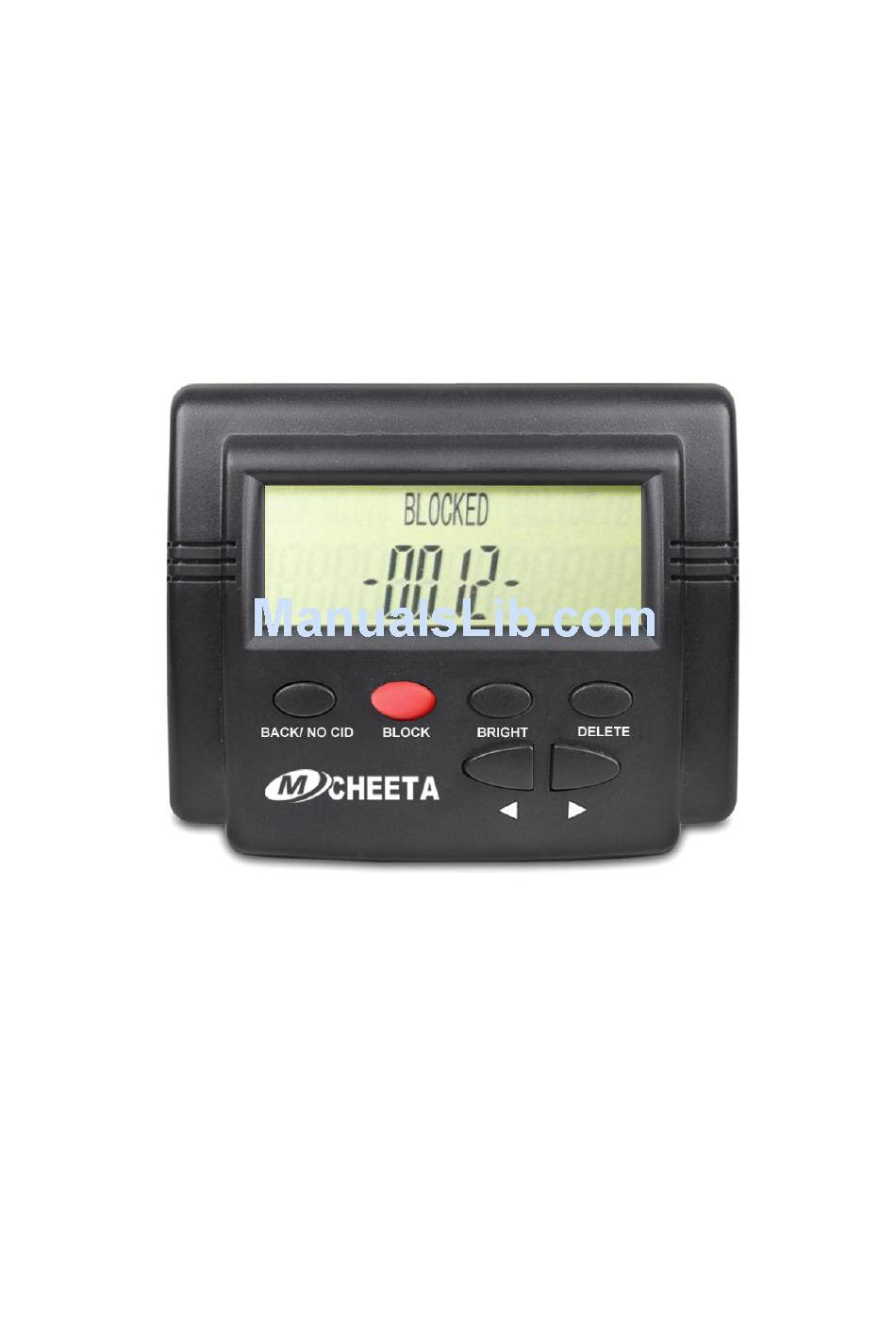

Page 1: User Manual
Call Blocker User Manual Model：CT-CID803... - Page 2 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR LATER REFERENCE. IMPORTANT（IMPORTANCE?）: KEEP FOR FUTURE REFERENCE. This product requires Caller ID service from your network provider.
-
Page 3: Table Of Contents
Setting..........................1 Series Set Up........................... 1 Parallel Set UP ........................2 Function..........................3 Large Capacity........................3 Add or Remove Blocked Number..................3 Block Area Code........................3 VoIP Blocking Function....................... 3 Block NO Caller ID Calls.......................3 Ring Setting......................... 3 Display..........................4 Number of Blocked Calls.....................4 Navigation Buttons...................... -
Page 4: Setting
Setting Series Set Up 1. 1. Insert the provided bracket into the back slots. 2. Unplug the line cable from your telephone.(Don't touch the other end on the wall.) 3. Insert the line cable into the LINE port of the call blocker. 4. -
Page 5: Parallel Set Up
Parallel Set UP If caller ID or intermittent ringing issues arise, try the parallel. 1. Unplug the original phone line from the wall socket. Connect the splitter to the wall socket. 2. Use the original phone line to connect the telephone. 3. -
Page 6: Function
Function Large Capacity Block nuisance or unwanted calls up to 4000 groups. Add or Remove Blocked Number Manually enter or remove numbers to/from the Blocking list. Block Area Code Blocks the Area Code or the first few digits of a incoming calling number. (Hint: Limited to 10 Groups) VoIP Blocking Function This will reject all VoIP style internet Nuisance Calls. -
Page 7: Display
Display Number of Blocked Calls Display the amount of numbers that have been added to the block list. Navigation Buttons Block list: The list of blocked call numbers. Call list: A list of the last 999 numbers. BLOCK NO CID Block phone calls without caller ID. -
Page 8: Operation
Operation 1. New Incoming Calls When receiving new calls, the telephone will detect the number automatically and display the number and also count the numbers. (numbers are stored in numerical order) 1.1.1 Reviewing New Incoming Calls Press the UP or DOWN button to review the incoming call log, and the LCD Screen will show the "CALL LOG"+ count, for example "CALL LOG 002", which means there has 2 incoming calls. -
Page 9: Blocking Numbers Without Caller Id
2. Blocking Numbers Without Caller ID First press the “BACK/ NO CID” button, then press the “DOWN” button to toggle the NO CID on or off. Press BACK when done. All calls without Caller ID will be rejected directly. Display of the LCD Screen Number of calls blocked and the NO CID function turned off. -
Page 10: Review And Delete Blacklist Numbers
3.1.2 While the call is active and the number is shown on the device display, press the “BLOCK” button. 3.1.3 While the call is active and the caller ID is shown on your phone handset, press “*” key on your telephone. 3.1.4 To enter block list manually, Using the phone handset, press speakerphone, press “*”... -
Page 11: Create And Review Area Code Blacklist
5. Create and Review Area Code Blacklist 5.1.1 Using the phone handset, press speakerphone, press “*” key, then press 8, press “*” again, enter a area code, and press “#” key.(*8*+ Area Code + # ), you will hear a "di", which means the setting is saved successfully. -
Page 12: Change The Ring Setting
" 1 RING ", Press BACK when done. 7.1.3 Use the programming code " *6*#" to turn on the 0-Ring, "*7*#" to turn on the 1-Ring. Specification Model Number: CT-CID803 Mfr. Part Number: 803-plus Dimensions: 10 x 9 x 4CM Weight: 85G... -
Page 13: Programming Code
Programming Code How to enter codes Pick up the phone and get a dial tone, then enter any of the codes below. You will hear a single "BEEP" after each # to confirm successfully entry. You will hear 3 "BEEP" if the call blocker is full memory and the "FULL"... -
Page 14: Faq (Frequently Asked Question)
FAQ (Frequently Asked Question) Q: Do I need caller ID for the call blocker to work? A: Yes, caller ID should be enabled on your telephone line for the call blocker to work effectively. Q: How to unblock a number if block accidently? A: press the “BLOCK”... - Page 15 Q: No dial tone since connect the device to my phone? A: Try to switch on “1 ring” program. Press and hold the “NO CID/BACK” button for 3 seconds, then press the “UP or DOWN” buttons to choose 1 ring. Press “BACK” when done. Q: Do not show incoming calls on the blocker? A: Please confirm Caller ID Display is active on your telephone.
-
Page 16: Welcome To Contact Us
Welcome to Contact Us If there is any questions about the service or the product, please kindly contact us any time, we will response the email within 24 hours. Email: s2@cheeta.com.cn Whatsapp: +86 18145859060...
Need help?
Do you have a question about the CT-CID803 and is the answer not in the manual?
Questions and answers
What is the number capacity of tis device?
The number capacity of the MCheeta CT-CID803 device is not specified in the provided context.
This answer is automatically generated
what spliter type for ct-cid801
The MCheeta CT-CID803 supports both series setup and parallel setup for connection. If using a parallel connection and experiencing issues, switching to a series connection or connecting the call blocker to another phone is recommended.
This answer is automatically generated
how to get a deleted number back that have been deleted from blocklist
You cannot recover a deleted number from the blocklist on the MCheeta CT-CID803. Once a number is deleted, it is permanently removed.
This answer is automatically generated
