Snap-On YA700B Owner's/Operator's Manual

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
!
Obey all safety messages that follow this symbol to avoid possible injury or death.
SAFETY INSTRUCTIONS
Save these instructions. For your
safety, read, understand, and follow the
information provided with and on this
jack. The owner and operator shall have
an understanding of this jack and safe
operating procedures before attempting
to use. The owner and operator shall be
aware that use and repair of this product
may require special skills and knowledge.
Instructions and safety information shall
be conveyed in the operator's native
language before use of this jack is
authorized. If any doubt exists as to the
safe and proper use of this jack, remove
from service immediately.
Inspect before each use. Do not use if
broken, bent, cracked, or damaged parts
(including labels) are noted. Any jack that
appears damaged in any way, operates
abnormally or is missing parts, shall
be removed from service immediately
and the manufacturer notified. If you
suspect that the jack was subjected to
a shock load (a load dropped suddenly,
unexpectedly upon it), immediately
discontinue use until the jack has been
checked by a factory authorized service
center (contact distributor or manufacturer
for list of Authorized Service Centers). It is
recommended that an annual inspection
be done by qualified personnel. Replace
worn or damaged parts and assemblies
with Snap-on authorized replacement
parts only.
PRODUCT DESCRIPTION
Snap-on Service Jack is designed to lift,
but not sustain, one end of a vehicle.
Immediately after lifting, loads must be
supported by a pair of appropriately rated
vehicle stands
NEVER use this jack as a
!
stand alone device. After lifting,
immediately support the lifted
vehicle with a pair of appropriately
rated vehicle stands.
OWNER/OPERATOR MANUAL
BEFORE USE
1. Verify that the product and application
are compatible.
2. Read the operator's manual completely
and familiarize yourself thoroughly
with the product, its components
and recognize the potential hazards
associated with its use.
3. Insert handle into handle fork.
Tighten bolt on handle fork to prevent
accidental removal of handle while
in use.
Do not lift or carry jack by handle.
!
Handle could dislodge and jack
fall, resulting in possible injury or
property damage.
4. To familiarize yourself with basic
operation of this jack, locate and turn
the release valve (handle):
a. Clockwise until firm resistance is
felt to further turning. This is the
'CLOSED' release valve position
used to raise the load.
b. Counter-clockwise, but no more
than 1/2 full turn from the closed
position. This is the 'OPEN' release
valve position used to lower the
load.
5. With saddle fully lowered and
release valve closed, pump the
operating handle. If lift arm responds
immediately, jack is ready to use. If
jack does not respond, open release
valve and pump 6 to 8 full strokes to
purge air. Close release valve and
recheck operation.
6. Jack should roll freely. Raise and
lower the unloaded saddle throughout
the lifting range before putting into
service to ensure the pump operates
smoothly.
7. Replace worn or damaged parts and
assemblies with Snap-on authorized
replacement parts only. Lubricate as
instructed in Maintenance Section.
1

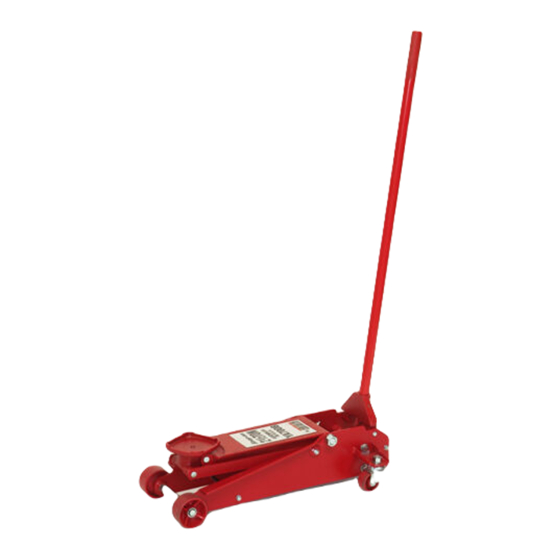

MODEL YA700B
2-1/2 TON CAPACITY
SERVICE JACK
WARNING
!
• Study, understand, and follow all
printed materials provided with/on
this product before use.
• Do not exceed rated capacity.
• Use only on hard, level surface,
capable of holding the load.
• This is a lifting device only.
Immediately after lifting, support the
vehicle with appropriately means.
• Do not move or dolly the vehicle
while on the jack.
• Lift only on areas of the vehicle
as specified by the vehicle
manufacturer.
• No alterations shall be made to this
product.
• Failure to heed these markings
may result in personal injury and/or
property damage.
WARNING
!
X
To avoid crushing and related
injuries:
• Never work on, under or around a
load supported only by hydraulic
jack.
• Always use adequately rated jack
stands.
• Chock each unlifted tire in both
directions.
• Do not use this device to lift, level,
lower, support nor move a house,
mobile home, travel trailer, camper
or any building structure.
• Be alert and sober when using this
product. Do not operate under the
influence of drugs or alcohol.
!
ADVERTENCIA
• Esta es una simple advertencia.
Por favor lea las instrucciones y
.
advertencias en inglés
