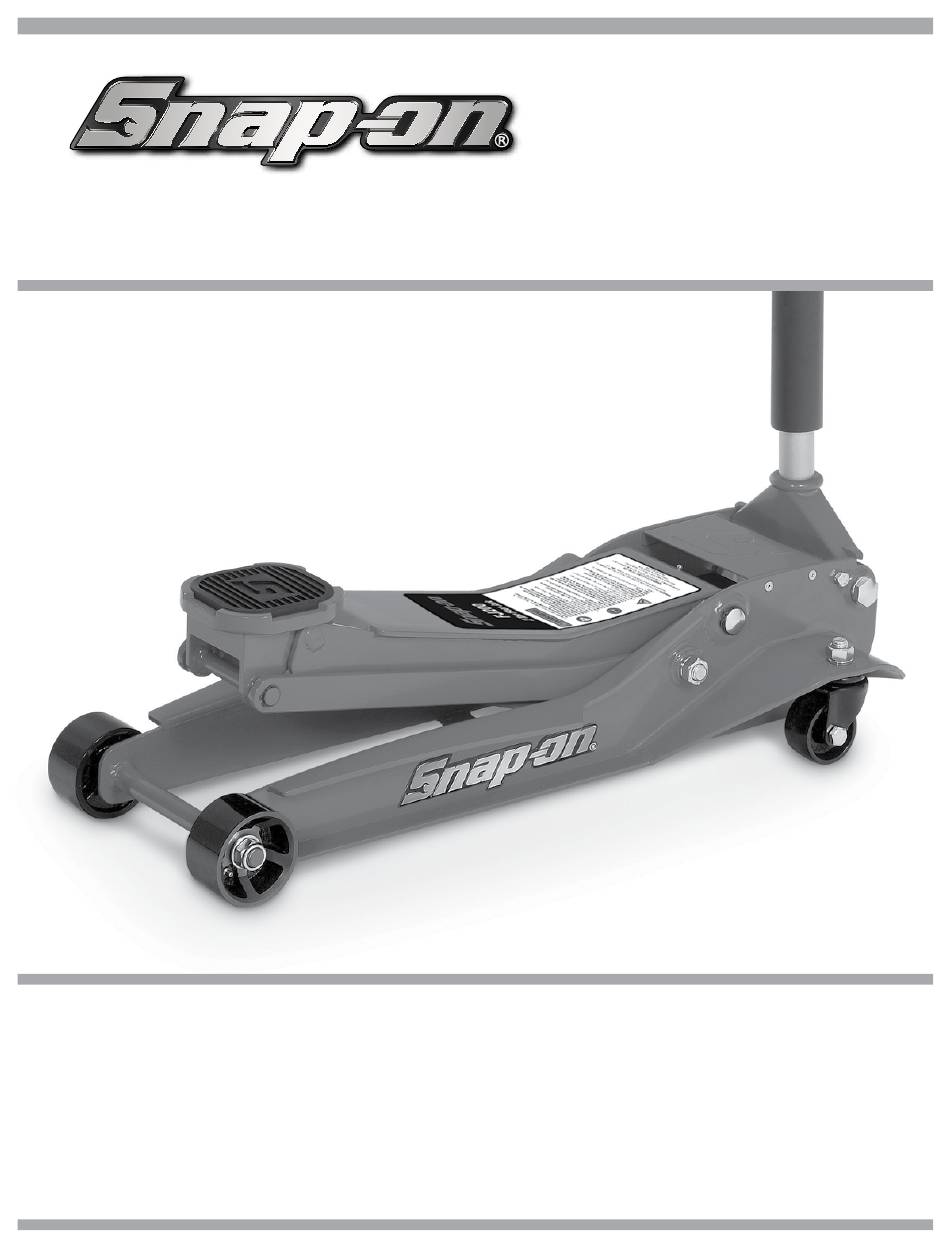

- Page 1 2 TON FLOOR JACK FJ200 INTRODUCTION The FJ200 2 Ton Floor Jack is an exclusive Snap-on design which provides the pro- fessional technician with quick performance, ideal lift heights and the dependable service they require. TECHNICAL SUPPORT AND SERVICE US: 877-762-7664...
-
Page 2: Table Of Contents
Warranty/Service and Repair ..........12 FJ200... -
Page 3: Safety Information
Falling vehicle can cause property damage, serious injury or death. This product contains chemicals known to the state of California to cause cancer or birth defects or other reproductive harm. Wash hands thoroughly after handling. SAVE THESE INSTRUCTIONS FJ200 Rev. 09/09/14... -
Page 4: Specifications
SPECIFICATIONS Specifications FJ200 Capacity 2 Ton Low Height (in.) Max Lifting Height (in.) 23.34 Saddle size (in.) 5.1 x 5.1 sq. Ground Clearance 0.562 Chassis Length (in.) 30.75 Overall Width @ Front wheels (in.) 11.25 Minimum Chassis Width (in.) 7.06 Overall Width @ Rear Casters (in.) -
Page 5: Features
® Jack was designed specifically for the profession- duty release valve assembly with built-in stop pre- al technician. The Model FJ200 is assembled in vents accidental removal and provides easy rota- the USA and includes Patents and Patent Pend- tion. Long one-piece handle for easier pumping ing features that provide exceptional performance and positioning of jack under vehicle. -
Page 6: Start-Up Guide
FJ200-2 in the handle yoke assembly FJ200-11 until the groove is engaged by the pin of the handle yoke retaining assembly FJ200-12. Pull up on the handle to make sure the pin has engaged the handle groove. Slightly rotate the handle clockwise and... -
Page 7: Operation
3. Using the jack’s handle FJ200-2, maneuver the 6. After the jack stands have been properly jack so its saddle FJ200-6 is positioned right positioned and their columns adjusted to the below the vehicle’s designated lift point. Rotate required height, rotate the jack’s handle the jack’s handle FJ200-2 clockwise until it slowly counterclockwise to lower the vehicle on stops. -
Page 8: Maintenance
A general purpose lithium base grease and procedures are required. These schedules must be used in the grease fittings provided in and procedures are the responsibility of the jack both front wheels FJ200-4, lift arm assembly, owner. and two in the handle yoke assembly FG200-11. Additional areas of lubrication are found in Figure 1. - Page 9 In order to ensure proper performance, the correct fluid level must be maintained in the reservoir. The proper fluid level is checked when the jack’s lift arm is all the way down. The fluid level should be no higher than the top of the internal cylinder as shown in Figure 2. FILL SCREW CYLINDER FLUID LEVEL RESERVOIR TUBE Figure 2 FJ200 Rev. 09/09/14...
-
Page 10: Troubleshooting
FILL SCREW C. Bent or deformed CYLINDER FLUID LEVEL RESERVOIR TUBE chassis component. Remove excess fluid if above internal cylinder. B. Follow step 1 under WEEKLY Maintenance section of this manual. See page 8. C. Call Tech Service. FJ200 Rev. 09/09/14... -
Page 11: Parts List
PARTS DRAWING AND PARTS LIST Stock Number Description Stock Number Description FJ200-1 Rear Caster Assy, Nut and Washer FJ200-10 Return Springs (2) FJ200-2 Handle w/Foam Pad FJ200-11 Handle Yoke Casting FJ200-3 Universal Joint w/Seal FJ200-12 Handle Retaining Pin FJ200-4 Front Wheel, Nut & Washers... -
Page 12: Warranty/Service And Repair
Snap-on Tools, Kenosha, Wisconsin 53141-1410 Technical Support and Service US: 877-762-7664 Canada: 866-824-0524 Assembled and Tested in the USA. Snap-on and Wrench “S” are trademarks of Snap-on Incorporated. © Snap-on Incorporated 2014. All Rights Reserved. Snap-on 2801 80th St., Kenosha, WI 53143 www.snapon.com FJ200 Rev.
