bath-shower mixer
Batteria per bordovasca
Mélangeur pour bain-douche
Wannenfüllbatterie mit Einhebelmischer
Batería de sobreponer para bañera
091393
011393
581393
121393
Istruzioni di montaggio
Mounting instructions
Instructions de montage
Montageanleitung
Instrucciones de montaje
| E044137 |
Advertisement
Related Manuals for PALAZZANI 091393
Summary of Contents for PALAZZANI 091393

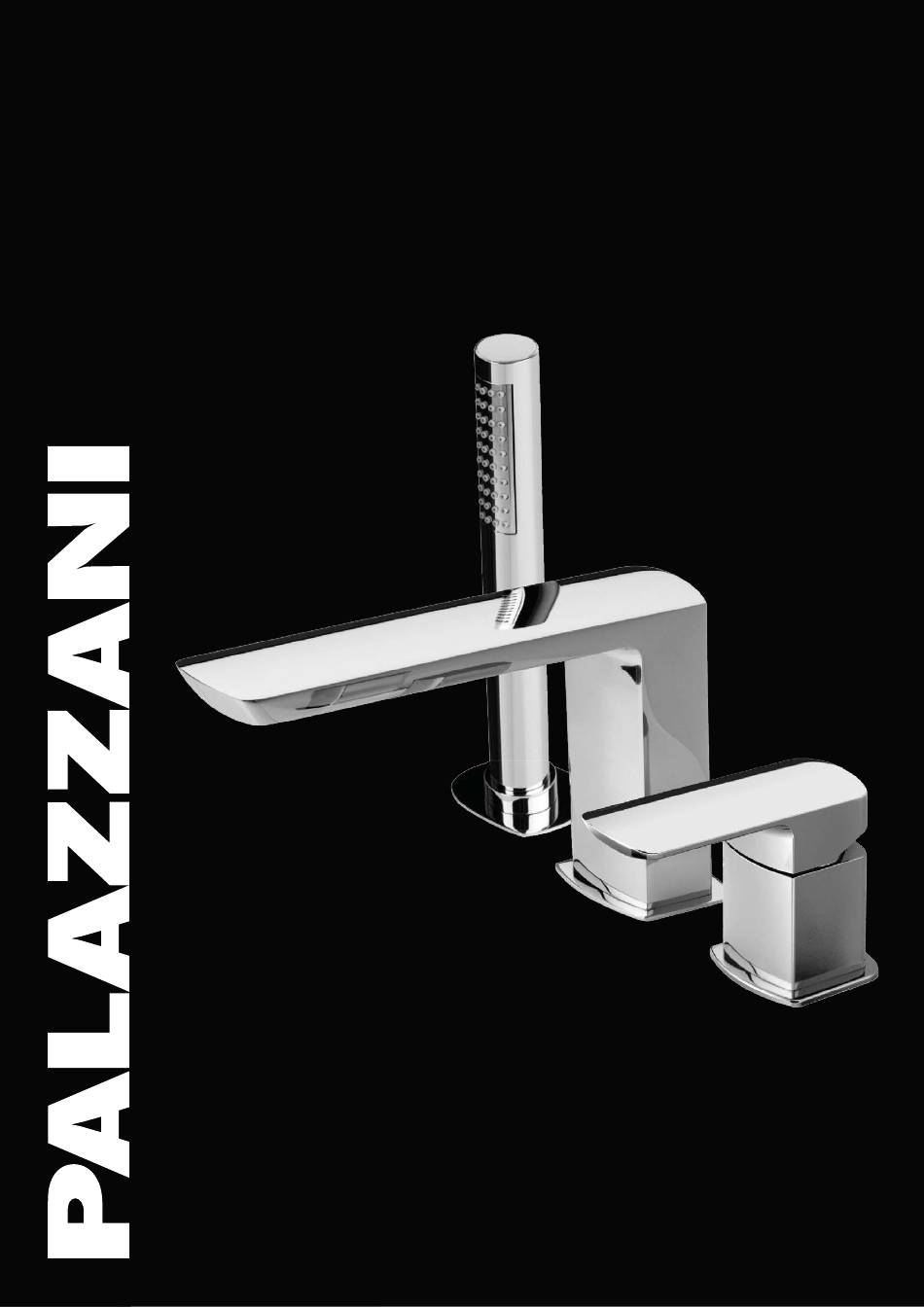

- Page 1 | E044137 | Batteria per bordovasca Mélangeur pour bain-douche Wannenfüllbatterie mit Einhebelmischer Batería de sobreponer para bañera 091393 011393 581393 121393 Istruzioni di montaggio Mounting instructions Instructions de montage Montageanleitung Instrucciones de montaje...
- Page 2 091393 011393...
- Page 3 581393 121393...
- Page 4 Technical sheet: KIT. ABOVE BOARD WITH DIVERTER TECHNICAL CHARACTERISTICS: - TESTING PRESSURE 12 BAR - HOT WATER MARK ON THE LEFT RED - COLD WATER MARK ON THE RIGHT BLUE LIMITS OF USE CONFORMING TO THE EUROPEAN EN 817 STANDARD PRESSURE MIN = 0.5 BAR MAX = 10 BAR...
- Page 5 ASSEMBLY INSTRUCTIONS: 1- UNSCREW AND TAKE OF THE SEAL (1) AND O-RING (2). 2- TO POSITION THE COMPLETE IN A CROSS WAY ON THE PLACE PROVIDED FOR THE SPOUT OF FLOW ON THE MOUNTED BATH- SHOWER. 3- INSERT O RING (2) AND THEN SCREW THE SEAL (1) FROM THE TOP TO THE END. 4- TIGHTEN WITH FLANGE (3) AND RESPECTIVE NUT (4) AND POSITION THE COMPLETE IN A CROSS WAY ON THE MOUNTED BATH- SHOWER.
- Page 6 6- FIX THE SHOWER SUPPORT WITH THE RESPECTIVE FIXING KIT ON THE PLACE PROVIDED FOR THE MOUNTED BATH-SHOWER. BATHTUB EDGE 7- BEFORE CONTINUING WITH THE POSITIONING OF THE SPOUT (3) FATTEN UP THE DIVERTER BAR (7). 8- POSITION THE BASETTA (1) AND THE PLUG (2) ON THE LOWER PART OF THE SPOUT (3), INSERT WITH THE EXTREME CARE THE ASSEMBLY ALREADY COMPOSED TO THE CROSS COMPLETE PREVIOUSLY FIXED AND POSITIONED TO THE MOUNTED BATH- SHOWER, BE CAREFUL THAT THE O-RINGS OF THE CROOS BODY ARE INSERTED IN THE PROPER APPOSITE GROOVES OF THE SPOUT (3).
- Page 7 10- POSITION THE THREADED INSERT (5) IN THE PLACE PROVIDED FOR THE THE DIVERTER BAR , TIGHTEN WITH SPECIFIC WRENCH SUPPLIED (8). 11- SCREW THE KNOB ROUND (6) TO THE THREADED INSERT (5) PREVIOUSLY POSITIONED. BATHTUB EDGE BATHTUB EDGE 12- AFTER FIXING THE 3 BODIES AS DESCRIBED ABOVE, CONTINUE WITH THE CONNECTION OF THE FLEXIBLES. BATHTUB EDGE...
- Page 8 13- CONNECT THE INLET FLEXIBLE TUBE CONNECTION 12X1-G1/2” RED (HOT) AND BLUE (COLD). 14- CONNECT THE FLEXIBLE 12X1-G1/2” FROM THE MIX EXIT TO THE CROSS BODY.
