Suspension of Anya Flybar

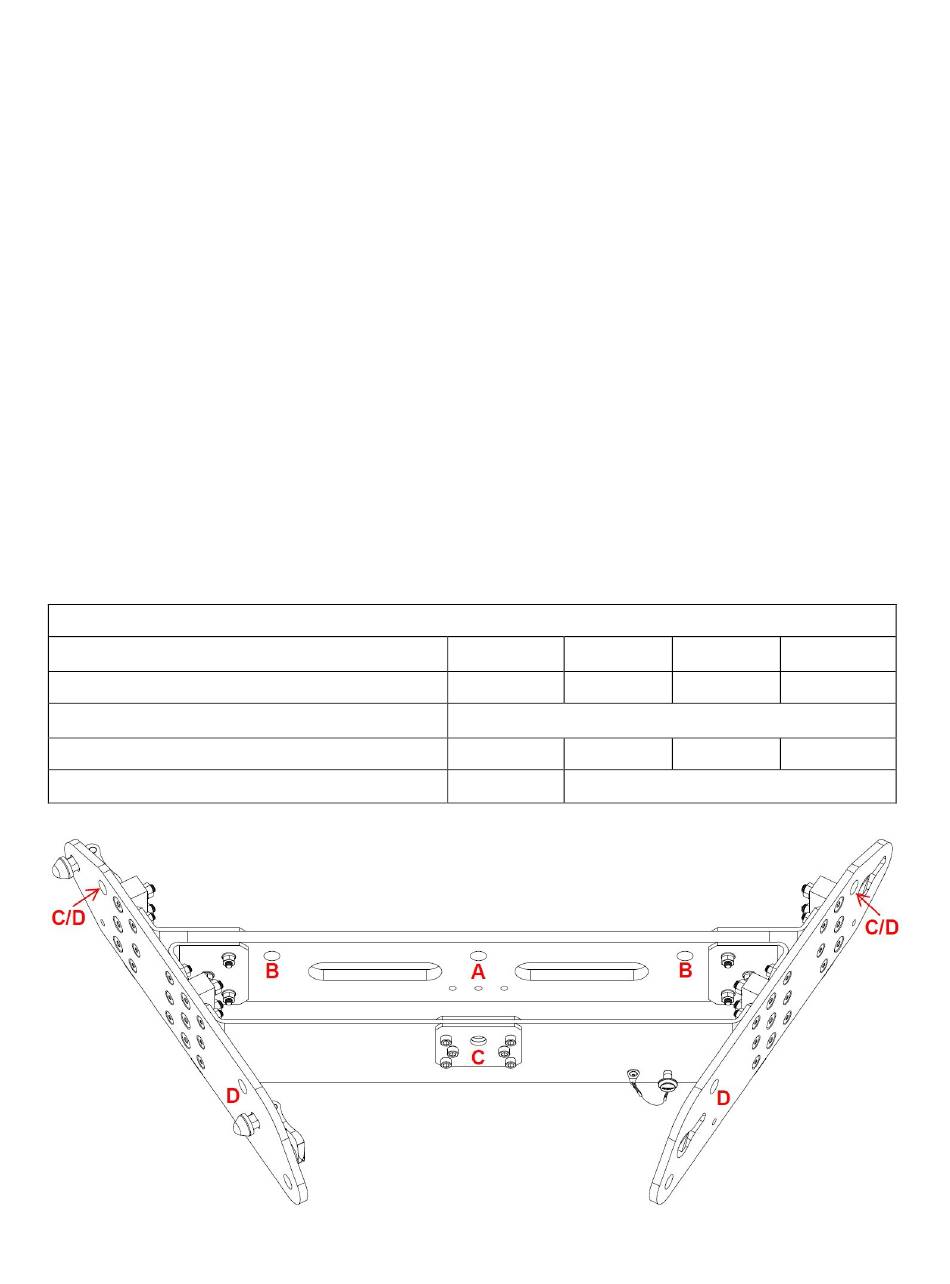

For suspension of a single Anya column, four suspension options are available (See figure below)
A. One point – Array is suspended from center front point.
B. Two points – Array is suspended from two points, one on each side (left and right) of center.
C. Three points – Array is suspended from front & outermost two points, and rear-most
center point.
D. Four points – Array is suspended from outermost front and rear points.
In all situations, it is critical to verify in EAW's Resolution software that your configuration does not
exceed recommended loads for any aspects of the Anya rigging system. It is the responsibility of the
installer/technician to verify the chain motors, connecting members (i.e. slings, spansets, shackles,
etc.) and facility's rigging structure is certified and capable of meeting the required load of the system.
For arrays larger than a single column, use Resolution to determine the appropriate hang style and
support method for each column (many options are available).
Always refer to EAW Resolution Software before installation to determine load exact load values on
rigging and max limits of any array configuration.
Once assembled, ensure that trim angle of array is plumb and level (0 degrees).
SINGLE ANYA WEIGHT = 285 lb (129.3 kg)
ANYA FLYBAR WEIGHT = 98 lb (44.5 kg)
HANG/PICK POINT QUANTITY
SHACKLE REFERENCE
SHACKLE SIZE [MIL RR-C-271F]
MAXIMUM ANNA / COLUMN
PICK POINT QUANTITY WLL (shown in lbs./kg)
*The above weights are for a 10:1 Safety Ratio. Consult Resolution for other ratings.
10
SINGLE COLUMN ANYA ARRAY [10X DESIGN FACTOR]
1 2
A B
3/4in (Ø 0.85in PIN)
11 18
3300 /1497
3
C
18
5425 / 2461
4
D
18
