Summary of Contents for Altech DSD 4921 RV

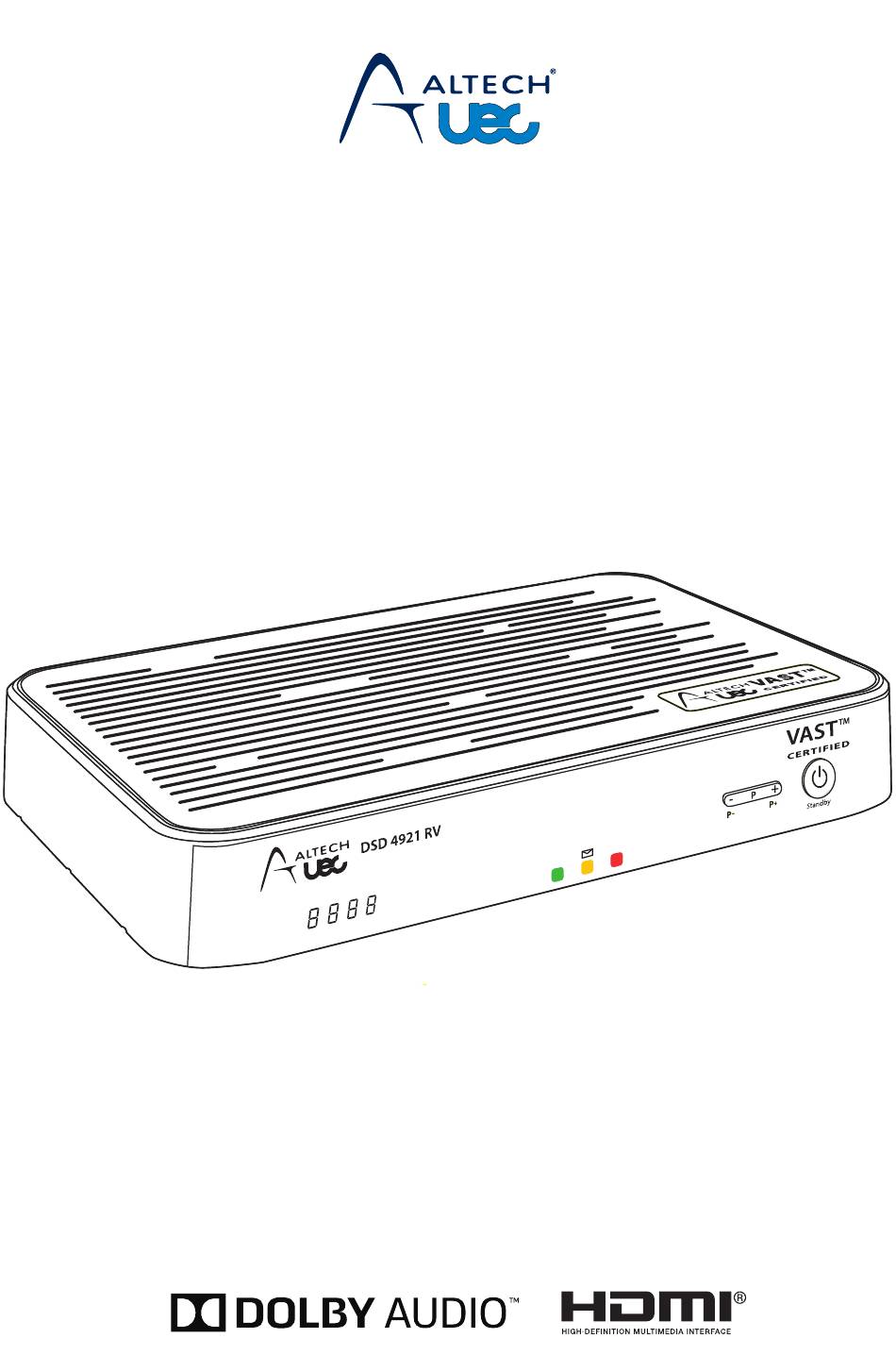

- Page 1 DSD 4921 RV USER MANUAL...
- Page 2 Page is intentionally blank.
-
Page 3: Table Of Contents
Table of Contents Important Notes Main Menu Abbreviations & terms Settings Installation Warranty and Safety Satellite Channel Search Warranty Dish Alignment Help Cautions Dish Installation Important Information Internet Setup Features and Accessories Factory Reset Main Features User Preferences Optional Accessories Recording What’s in the Box Video... -
Page 4: Important Notes
Important Notes The DSD 4921 RV User Manual is the subject of intellectual property rights, including copyright, under domestic law and international conventions. All rights are reserved. The DSD 4921 RV User Manual supplements the information supplied with the packaging of the STB as well as the detailed information available on our website. -
Page 5: Warranty And Safety
Warranty and Safety This STB complies with all relevant Australian safety standards. Please read all safety precautions and warnings carefully and adhere to all safety and warning notes. Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 6 Warranty and Safety VENTILATION: Never cover the STB ventilation slots. This may result in overheating, damage and malfunction. • Never stand the STB on soft furnishings or carpets. • Never stack other electronic equipment on top of the STB. ATTACHMENTS: Do not use non-recommended attachments that may be hazardous or damage the STB.
- Page 7 Warranty and Safety To avoid electric shock: • Never open the main body of the STB. • Do not insert metal or inflammable material through vents. • Never touch the mains power plug pack with wet hands. • Disconnect the mains power cable during lightning storms. To avoid damaging the product: •...
-
Page 8: Important Information

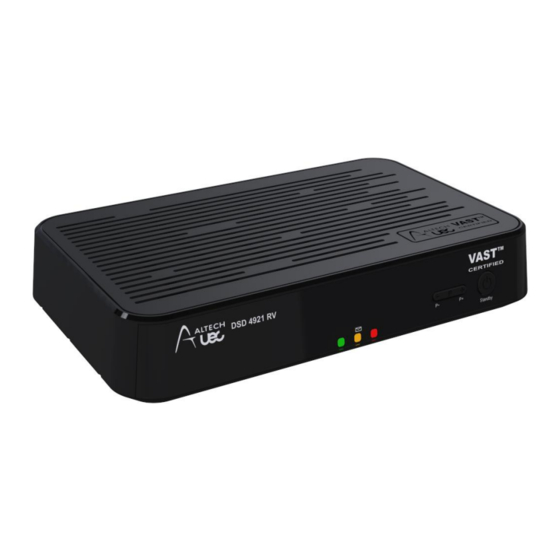

National radio broadcast channels are also included. DSD 4921 RV SET TOP BOX Thanks for purchasing this DSD 4921 RV STB, designed for receiving the VAST™ digital television in both High Definition (HD) and Standard Definition (SD) and digital radio services. -
Page 9: Features And Accessories
Features and Accessories Main Features (Technical & Statutory) This terminology can be searched on the internet for those who are interested and want to better understand it. • Australian VAST™ certified, • 7 – segment display with clock in stand- •... -
Page 10: What's In The Box
What’s in the Box Power Supply Unit 100 - 240VAC to 12VDC 2A Smartcard (inside STB) HDMI® Cable Remote Control Unit (RCU) Set Top Box... -
Page 11: Front Panel
Front Panel The RCU sends a beam to the infra-red window. Do not block the path between RCU and STB. If an obstruction Infra-Red (IR) Receiver (eg. cabinet, TV) prevents the IR signals from the RCU, an window external IR RCU extender (optional accessory) is available. See LED functions below. -
Page 12: Rear Panel
Rear Panel Connect the satellite antenna coaxial connector to the LNB In LNB In socket on the STB. RCU Ext IR extender, used for extending the range of the RCU if the (Optional accessory) STB is in a cabinet. ETHERNET Ethernet Socket to connect the STB to the internet. -
Page 13: Remote Control Unit
Remote Control Unit Power Button / Standby LED Light Alphanumeric Keypad Switch between TV and Radio Program Information View Recorded Programs View Electronic Program Guide Select / OK Button Menu Navigation Buttons Exit INFO / MENU Launch MENU System Mute ON / OFF Volume UP / DOWN Channel UP / DOWN Go back an Action or Channel... -
Page 14: Rcu Navigation Buttons
Remote Control Unit Navigation (NAV) Buttons RCU Navigation Buttons The terms NAVIGATE (NAV) or SELECT are used when referring to activities controlled by these four arrows and the OK button. The OK button is the same as SELECT / SAVE / AGREE. In some instances it is a shortcut button - for example to quickly see the available channels. -
Page 16: Hardware Setup
Hardware Setup Step 1: Check SmartCard Topside of Card Underside of Card Ensure the smart card is inserted correctly. The chip should be facing down and the arrow facing inwards. An error will appear if the smart card cannot be read by the STB. See “VAST™... - Page 17 Step 3: Connect Set Top Box to TV A. Connect with HDMI Cable (provided) Using the provided HDMI cable, insert one end into the Set Top Box HDMI socket, then connect the other end of the cable into a HDMI port on your TV. B.
- Page 18 Optional: Connect Set Top Box to the Internet LAN Port 1 LAN Port 2 LAN Port 3 Using an Ethernet cable (not provided) connect one end of the cable into the Ethernet port of the STB, then plug the other end into a LAN port of your internet router.
-
Page 19: First Time Installation
First Time Installation First Time Installation Once the STB hardware has been connected correctly and booted, you will be required to complete the FIRST TIME INSTALLATION. This requires you to set your TV Resolution and your Time Zone, and scan for available channels. To view the STB on your TV, select the source input you connected your STB to. - Page 20 First Time Installation Step 2: Time Zone Similarly use the NAV buttons to determine your Australian Time Zone. Press OK button when the correct Time Zone is selected. Step 3: Select USB Storage Device If you have connected a recording device (hard disk drive externally attached), you have the option to select it during the FIRST TIME INSTALLATION.
- Page 21 First Time Installation Once the search is complete, a window should appear informing you that the “Channel Search Finished” . The total number of TV and Radio channels you can access, will be dislayed at the bottom of the screen. Press OK button to close the FIRST TIME INSTALLATION menu.
-
Page 22: Vast™ Registration Process
In this case, consult the troubleshooting pages, contact your installer or the Altech UEC help line on (07) 3015 8790. How to activate your VAST™ Smartcard. You can do this by calling or visiting the website of either MyVAST (ABC and SBS only) or MySatTV (all Free to Air Networks). -
Page 23: General Functions
Pressing the Mute Button silences the audio output of the Set Top Box. To reactivate the audio either press the Mute button or press a VOL button. Keep in mind this function only affects the Altech UEC Set Top Box. The Volume of your TV or Monitor will also affect the audio output. -
Page 24: Live Satellite Television
General Functions Live Satellite Television Channel List While watching Live Satellite Television, press the OK Button to view a full list of available channels. While in the CHANNEL LIST, there are functions associated with the coloured buttons on your Remote Control. The Sort Function SORT: Pressing the Blue (4 from left) button while in the CHANNEL LIST allows you... -
Page 25: Time Shift
General Functions Parental Controls The Parental Control Rating enables you to block programs and recordings, according to the rating provided by the Broadcaster. See “Parental Controls” on page 35. Information Banner While on Live Satellite TV, press the Info button to present the INFORMATION BANNER. -
Page 26: Main Menu
Main Menu The Main Menu All the features of the Altech UEC Set Top Box can be accessed through the MAIN MENU. Press the MENU button on your remote control to access the main menu. SETTINGS: Check or Edit the configuration of your Set Top Box. See page 27. -
Page 27: Settings
Setup, and therefore not to be changed without necessity or guidance from a specialized technician. If you should have issues with your Altech UEC Set Top Box, please contact your installer, or contact the UEC Service Centre on (07) 3015 8790. -
Page 28: Installation
Installation Settings Some settings require you to input a PIN-code with your remote control to enter or make changes. The PIN-code for the Set Top Box is: 1234 Installation To access the INSTALLATION menu, you will be required to enter the PIN-Code: 1234 Within this menu you have access to: Satellite Channel Search, (configured during FIRST TIME SETUP) •... -
Page 29: Dish Alignment Help
Installation Settings Dish Alignment Help While in the SATELLITE CHANNEL SEARCH press the HELP button on your RCU to open the DISH INSTALLATION MAP. This function presents you with a map of Australia. Use the NAV buttons to move the cursor to your current location, then press the OK button. -
Page 30: Internet Setup
Installation Settings Internet Setup To use the UEC STREAMING PORTAL, you’ll need to set up a wired network connection from your home router. See “Optional: Connect Set Top Box to the Internet” on page 18. The STB is set to acquire an IP address automatically (DHCP), which will also provide the other settings required to get access to the internet from your router. -
Page 31: Factory Reset
Installation Settings Factory Reset Warning! Before performing a factory reset be aware all USER PREFERENCES, DATA and SETTINGS will be erased permanently (other than Parental Control Settings and LNB settings). The Set Top Box will return to the default state. Do not confuse Factory Reset with System Reboot (restart). -
Page 32: User Preferences
User Preferences User Preferences The user preferences settings allow for more in depth customization of several features, such as PVR setup, video resolution, the audio output, and language settings. Within this menu you have access to: Recording, • Video, • •... - Page 33 User Preferences Understanding Time Shift Ability: If your Set Top Box has PVR capabilities and hard drive space available, then it will also have the “Time Shift” feature. Time Shift means your STB is always recording in the background of the broadcast that you are currently viewing. This allows you to PAUSE, REWIND, and RE- WATCH the live broadcast.
-
Page 34: Video
User Preferences Video The Video menu enables you to make changes to the Video Settings on the Set Top Box. This is especially useful if you decide to connect your Set Top Box to a different television or monitor. Within this menu you have access to: Resolution, •... -
Page 35: Parental Control
Parental Controls Parental Control To access the PARENTAL CONTROL menu, you will be required to enter the default PIN-Code: 1234 Within this menu you have ability to: Parental Control Enabled, (Yes or No) • Change PIN Code (Parental Control only), and •... -
Page 36: System
System Settings System The system menu allows you to view the Set Top Box system information. Within this menu you can access: System information, • Irdeto CA Status, • Software Update, • Software License, and • • System Reboot. SYSTEM INFORMATION: Provides you with details, statistics and information about the Set Top Box and attached peripherals. -
Page 37: External Storage Setup
External Storage Setup Connecting an External Storage Device By connecting a compatible external storage device, such as a External Hard Drive or USB Stick you will be able to access the Personal Video Recorder functions of this STB. We recommend using the Toshiba 1TB Canvio HDD Portable Hard Drive. Step 1: Connect External Storage Plug the external drive into the USB port on the back of the Set Top Box. - Page 38 External Storage Setup Step 3: Go To Recording Settings Navigate to the SETTINGS menu. Settings > User Preferences > Recording Step 4: Setup Recording Device Select “SETUP RECORDING DEVICE” and press the OK button. Select the External HDD you connected, and press the OK button. Select the “File Format”, which is EXT4 (Linux) and press the OK button.
-
Page 39: Electronic Program Guide (Epg)
Program Guide (EPG) Electronic Program Guide (EPG) The Electronic Program Guide gives you the ability to view all current and upcoming programs for the next 8 days (if provided by individual channel broadcasters). QUICKLY ACCESS EPG: Press the GUIDE button on the remote control to directly access the ELECTRONIC PROGRAM GUIDE menu. -
Page 40: Recording Inside Epg
Program Guide (EPG) Alternative EPG Views While in the ELECTRONIC PROGRAM GUIDE, press the GUIDE button on your remote control, to cycle through different viewing options. View all current programs. View all up coming programs by channel. Recording inside EPG You have the ability while within the ELECTRONIC PROGRAM GUIDE to set reminders and record programs and series. -
Page 41: Scheduler
Scheduler Scheduler This feature is only available if your Set Top Box is equipped with a recording device (USB stick / hard disk drive) either internally or externally attached. The SCHEDULER feature allows you to view and manage your pending and upcoming recordings. -
Page 42: Schedule A New Event
Scheduler Schedule a New Event While in the SCHEDULER you can set a new event by pressing the Green (2 from left) button. In this menu you can set: 1. An upcoming recording, 2. A channel change reminder, and 3. A banner reminder. Manual Recording When scheduling a new recording in the SCHEDULER you must select the Channel, Date, Start Time, and Total Duration (mins) of the program you wish to record. -
Page 43: Managing Scheduled Recordings
Scheduler Managing Scheduled Recordings Once a recording is scheduled, the Coloured Function Buttons now have further actions. CANCEL RECORDING OR REMINDER: Press the Red (1 from left) button while the desired event is highlighted to cancel or delete it. ADD A NEW EVENT: Press the Green (2 from left) button to add a new recording or reminder. -
Page 44: My Recordings
Recordings My Recordings This feature is only accessible if your Set Top Box is equipped with a recording device (USB stick / hard disk drive) either internally or externally attached. The MY RECORDINGS menu allows you to watch and manage the recordings stored on your hard drive. - Page 45 Recordings Description of Icons While in the scheduler press the HELP button to see the Icons and their descriptions. Event Based Custom Duration Series Recording in Progress Recording in Progress Recording Scheduled Completed Incomplete Error Encountered Recording (Ticked for Viewed) Recording (Ticked for Viewed) During Recording In the MY RECORDINGS menu you can manage all the recordings stored on your hard drive.
-
Page 46: Uec Streaming Portal
UEC Streaming Portal UEC Streaming Portal The UEC Streaming Portal is a newly added feature of the DSD 4921 RV. It requires an internet connection through a router, via an ethernet cable. While in the MAIN MENU use the NAV buttons to select the UEC STREAMING PORTAL, then press the OK button. -
Page 47: Trouble Shooting
Trouble Shooting Trouble Shooting Below is a list of common problems you may run into while operating your Set Top Box. Please carefully read the list below. The STB will not switch ON. None of the LEDs are ON. Check the connection of the external power supply PSU at the wall socket and ensure it is switched ON. - Page 48 DSD 4921 RV Website: uec.com.au UEC Service Centre: (07) 3015 8790 Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
