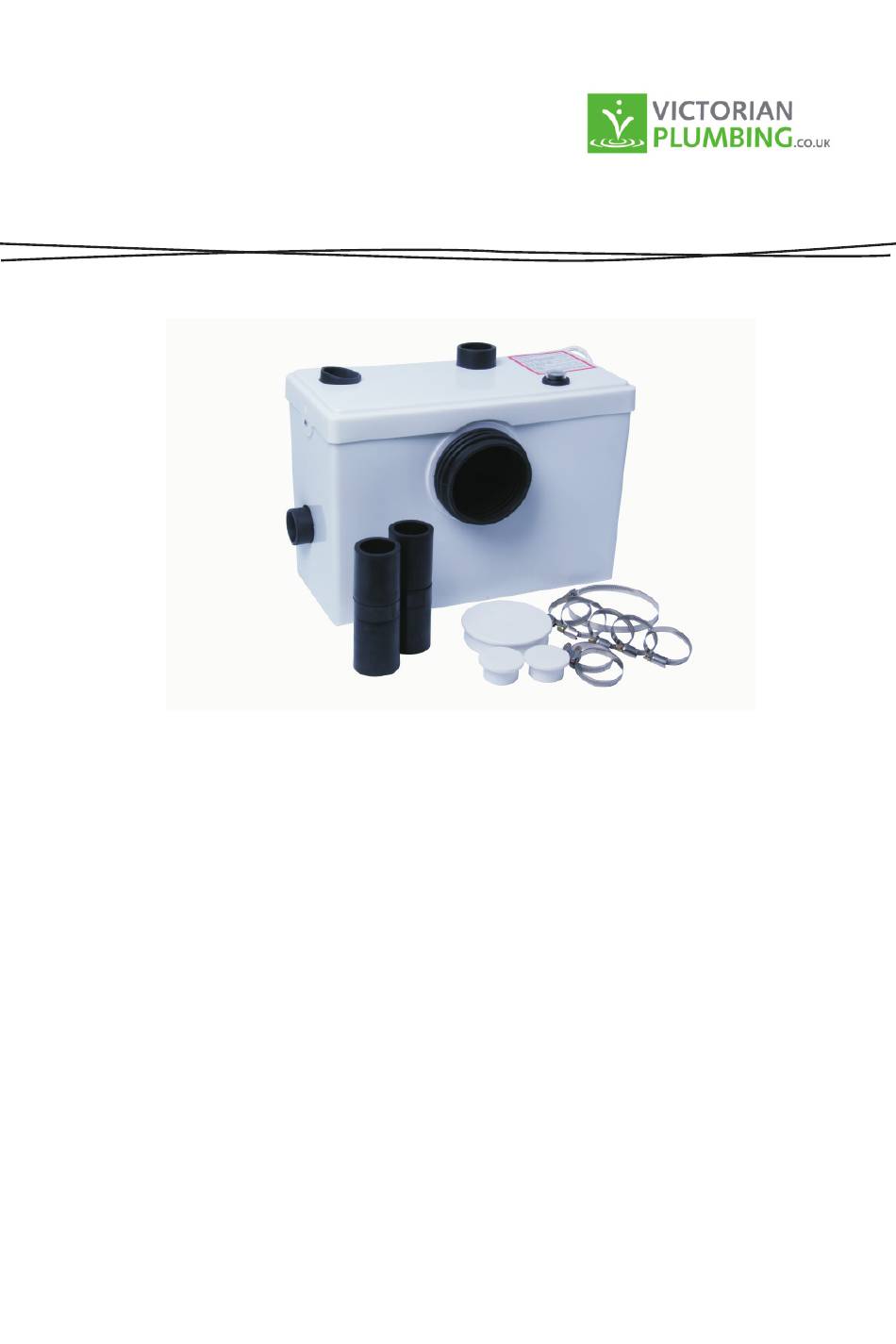

Toilet Macerator
Installation and Utilization Instructions
-The appliance is only ready for use after installation.
-The appliance must be supplied through a residual current
device (RCD) having a rated residual operating current not
exceeding 30mA.
-If the supply cord is damaged, it must be replaced by the
manufacture or its service agent or a similarly qualified
person in order to avoid a hazard.
-This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
ME90103
Warning
Advertisement
Table of Contents
Related Manuals for Victorian Plumbing ME90103
Summary of Contents for Victorian Plumbing ME90103
- Page 1 Toilet Macerator Installation and Utilization Instructions ME90103 Warning -The appliance is only ready for use after installation. -The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA. -If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
-
Page 2: Operating Principle
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Page 3 1 TURBINE CONTROL COMPONENTS1 MANUAL OVERRIDE SWITCH AND SAFETY DEVICE1 CHECK VALVE BREAKDOWN OF THE APPLINCE 1. CASE 2. MOTOR 3. LOCKNUT 4. FLANGE 5. GASKET 6. MECHANICAL SEAL 7. OPEN IMPELLER 8. INJECTOR 9. CLAMPING RING 10. OUTLET PIPE 11.
-
Page 4: Installation
INSTALLATION ELECTRICS: Connected with an earthed plug to a 250V~16 amp socket in accordance with current standards. HYDRAULICS: The Waste Pump for toilet can only be used with a toilet with horizontal outlet and equipped with a tank or flushing tap. The center of the horizontal outlet must be 18cm above the floor in accordance with European standards DISCHARGING THE TOILET ONLY... -
Page 5: Safety Instruction
The instructions concerning persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge and children playing with the appliance are not applicable. Children should be supervised to ensure that they do not play with the appliance. SPECIFICATIONS Product type: ME90103 Power: 600W... - Page 6 Voltage: 220V~240V 50Hz UTILIZATION In order to ensure total satisfaction with your appliance for many years, only toilet waste, water and paper should be discharged using the waste pump for toilet. Discharge of any other materials than those mentioned will invalidate the warranty.
- Page 7 They can take this product for environmental safe recycling. Victorian Plumbing Diamond House. 41, Stephenson Way. Formby Business Park Formby. England. L37 8EG Tel: 0044 800 862 0878...
