Hosen HS-LMS60R User Manual

Led spot 60 moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

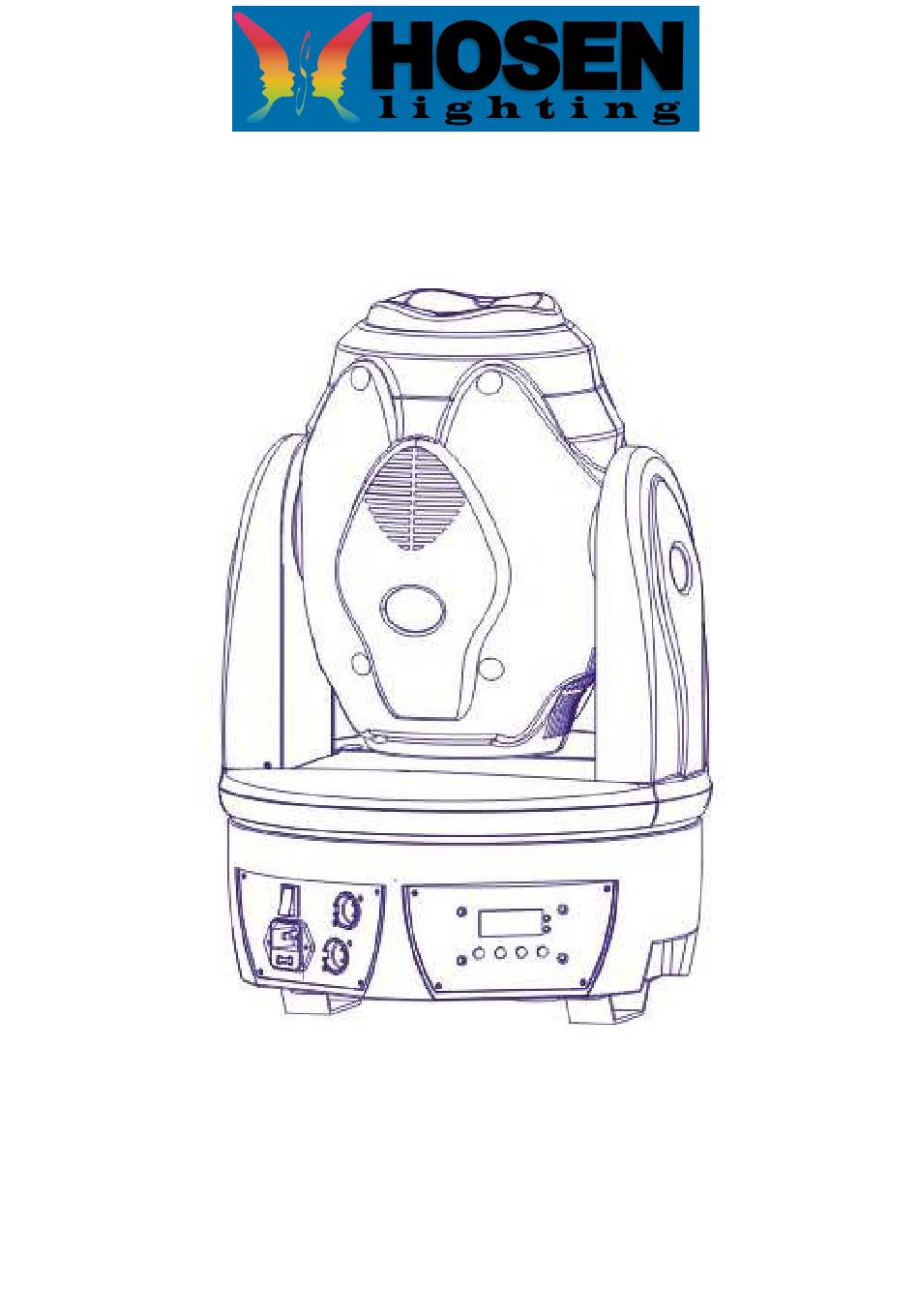

LED SPOT 60 MOVING HEAD
HS-LMS60R
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-LMS60R and is the answer not in the manual?

Questions and answers

Related Manuals for Hosen HS-LMS60R

Summary of Contents for Hosen HS-LMS60R

  • Page 1 LED SPOT 60 MOVING HEAD HS-LMS60R USER MANUAL...

  • Page 2: Before You Begin

    1. BEFORE YOU BEGIN What is included LED SPOT 60 MOVING HEAD USER MANUAL POWER PLUG Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows sings of mishandling .
  • Page 3 1: SWlTCH ON/OFF DMX IN DMX OUT POWR IN MUNE/SC DOWN ENTER...

  • Page 4: Control Features

    2.INTRODUCTION Features CONTROL FEATURES 13 CHENNELS DMX-512 PAN: 540 TILT: 255 7 COLOR + WHITE 7 GOBOS + WHITE FOCUS 3-FACET PRISM VARIABLE ELECTRONIC STROBE VARIABLE ELECTRONIC DIMMER VECTOR SPEED CHANNEL FOR TILT/PAN BUILT IN MOVEMENT MACROS VIA MASTER/SLAVE OR DMX SOUND ACTIVED ADDITONAL FEATURES COMPACT &...

  • Page 5: Fixture Linking

    3.SETUP Fixture Linking You will need a serial date link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels of channels required by all the fixtures on a serial data link determines then number of fixtures the data link can support.
  • Page 6 CABLE CONNECTORS Cabling must have a male XLR connector on one and a female XLR connector on the other end . DMX connector configuration Do not allow contact between the common and the fixture’s chassis ground. CAUTION Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

  • Page 7: Master/Slave Fixture Linking

    Master/Slave Fixture Linking 1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. 2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector.

  • Page 9: Dmx Channel Protocol

    5. DMX CHANNEL PROTOCOL Channels Control Content Description 000-255 PAN MOVEMENT 000-255 TILT MOVEMENT 000-255 PAN/TILT SPEED 000-017 WHITE 018-034 COLOR 1 035-051 COLOR 2 052-068 COLOR 3 069-085 COLOR 4 CH4 COLOR 086-102 COLOR 5 COLOR 6 103-108 109-128 COLOR 7 129-192 WHOLE WHEEL FORWARD F-S...

  • Page 10: Technical Specification

    5.APPENDIX Technical Specification WEIGHT&DIMENSIONS Length....................330mm Width....................330mm Height....................480mm Packing size............. 520x430x420mm Net weight..................11 kgs Gross weight ................13kgs POWER Powersettings.............220V50Hz/60Hz Fuse..................2A220V Consumption................150W LIGHT SOURCE 1 X 60W WHITE......COLOR............LAMP LIFE: 50,000Hrs CONTROL & PROGRAMMING Data output..........locking3-pinXLRmalesocket Datainput..........locking3-pinXLRfemalesocket Protocols................DMX-512 DMX channels..................13...
