Bail Handle Assembly Sequence; Cord Wrap Procedure - AVCOM PSA-65C Preliminary Operating Instructions

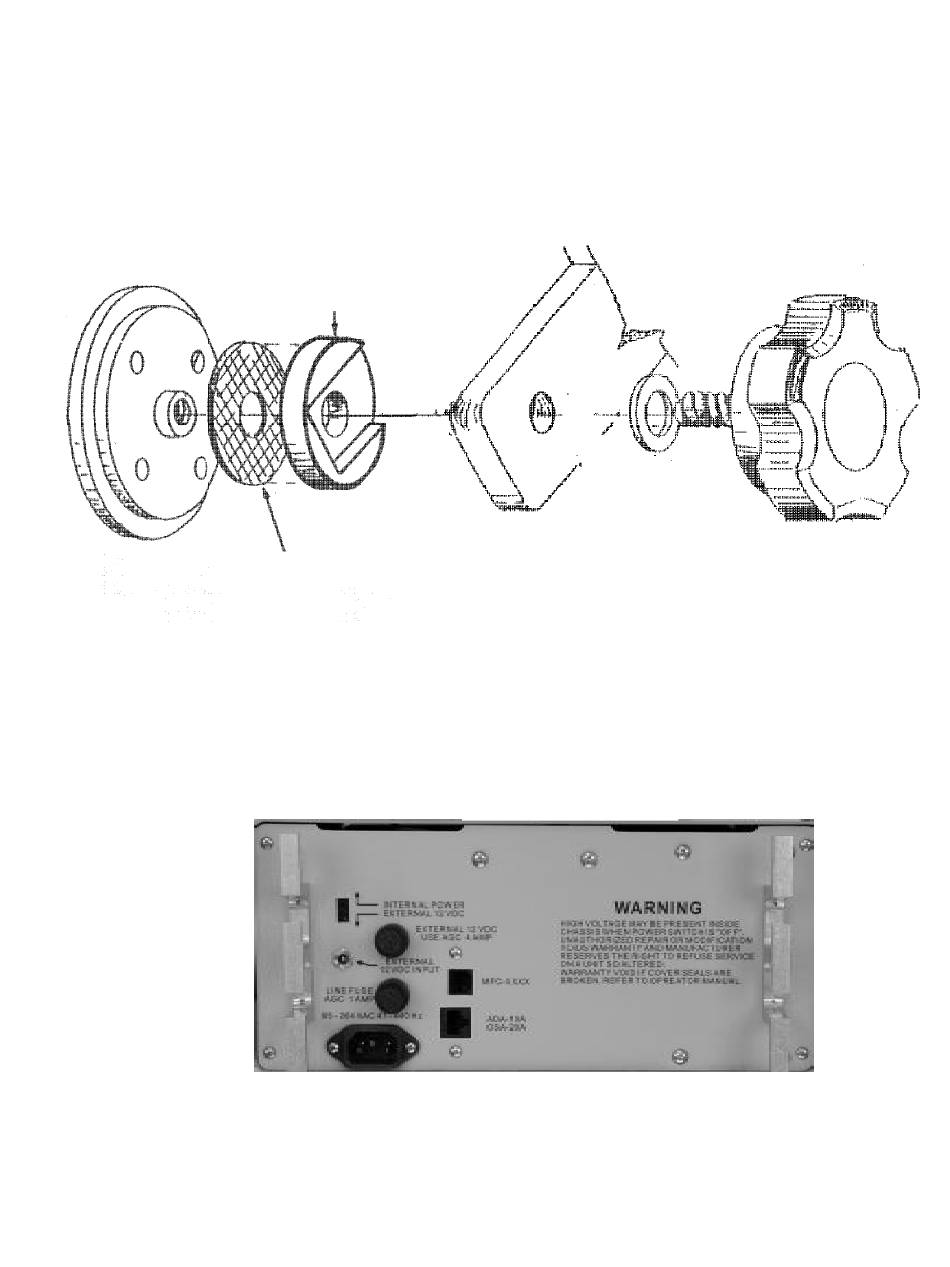

The bail handle friction knob must be assembled in the order shown below. The order of
parts are (1)knob, (2) stainless steel washer, (3) teflon washer, (4) bail handle, (5) aluminum
spacer and (6) rubber washer.
There are two of these assemblies mounted to either side of the chassis. If they are not
attached in this way, the handle may not function properly as a prop stand.
1. Wrap power cord in a counterclockwise direction around cord guides. Only top and bottom
hooks of cord guides are to be used.
2. Tuck plug behind outermost strands of wrapped cord.
WRAP COUNTERCLOCKWISE

BAIL HANDLE ASSEMBLY SEQUENCE

ALUMINUM SPACER
RUBBER WASHER

CORD WRAP PROCEDURE

PSA-65C - REAR PANEL VIEW
TEFLON WASHER
STAINLESS STEEL WASHER
KNOB
