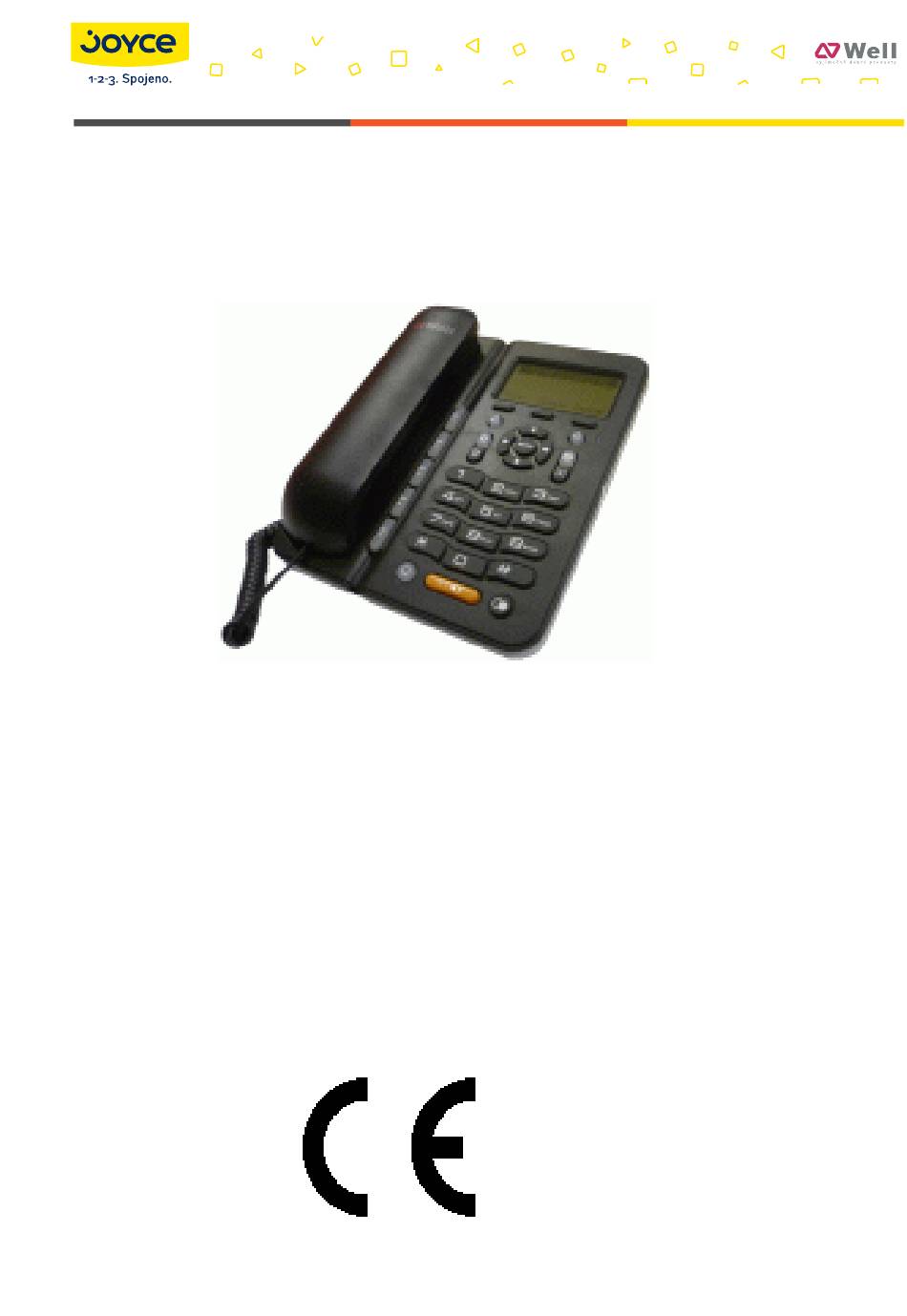

- Page 1 JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: joyce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz WELL 3190IB VoIP telefon, SIP a IAX2, 2xEth., NAT, DHCP server, Firewall...
-
Page 2: About This Guide
3190IB is a highly innovative enterprise IP telephone, to provide you plenty of features and beautiful sound quality. 3190IB fully comply with SIP protocol stan dard and Interconnection with the majority of SIP interoperability of hardware and software equipment of the market. he content of this manual would change without prior notice. HTTP://www.joyce.cz/... -
Page 3: Table Of Contents
CONTENT ABOUT THIS GUIDE..............................2 PART ONE BEFORE USING 3190IB VOIP PHONE......................5 1‐1................................5 ACKAGE ONTENT 1‐2............................... 5 OW TO SSEMBLE THE HONE 1‐3. 3190IB ..........................6 ENERAL PPEARANCE OF HONE ‐ LCD Display ..................................6 ‐ Key Definitions..................................8 ‐ LED Indication Instruction ..............................9 ... - Page 4 ‐SNTP....................................21 3‐4.VOIP....................................22 ‐SIP ....................................... 22 ‐IAX2..................................... 22 ‐STUN ....................................23 ‐DIAL PEER.................................... 23 3‐5.PHONE.................................... 25 ‐DSP ...................................... 26 ‐CALL SERVICE..................................26 ‐PHONE BOOK ..................................26 ‐FUNCTION KEY ..................................27 3‐6.MAINTENANCE................................27 ...
-
Page 5: Part One Before Using 3190Ib Voip Phone
Part One Before Using 3190IB VoIP Phone 1-1. Package Content hone package should include belo w items - 3190IB VoIP Phone Base Unit. - 1 Handset - 1 Coiled Handset Connecti ng Cord - 1 Straight Ethern et Cable - 1 Power Suppl - 1 User Guide - 2 Wall Mount Bra ckets... -
Page 6: General Appearance Of 3190Ib Phone
As Wall Mounting Ph Insert the wedge The wedge could be inserted as below tw o ways Insert with narr ow side down as Wa y No.1 Insert with narr ow side up as W ay N Way No.1 Way No.2 It is advisable to choose Way No.2 when yo u assemble the phone with wall mount brackets - Connect power supply, power on the phone... - Page 7 Definitions LCD illustration Call forwarding enabled Call on hold Connected call Incoming call Conference call activated Conference call on hold Conference call disabled Outgoing call Outgoin g call not compl eted nsferring a ca Line 1 (idle) Line 2 (idle) Line disabled Handset in use Spea...
-
Page 8: Key Definitions
- Key Definitions Key Button Definitions Key Button Digital, star and pound keys are also used for setting and 0 - 9, *, # call process. Soft key 1、2、3 , functions as per LCD menu displays Menu: to enter the main menu LINE1 and LINE2: transparent keys. -
Page 9: Led Indication Instruction
Hold: hold th e active call. Or used to enable/disable DND function in idle st Call Forward: use to enable/disable call forward and do relevant settings te key: press during the call to enable MUTE functio Phone Bo ok: Enter to the phonebook to sav e/amend phone No., or to call out saved No. -
Page 10: P Art Two Phone Interface Operation
art Two Phone Interface Operation Overvie w of 3190IB VoIP phone LCD Menu and Sub Menus... -
Page 11: Change Displayed Time And Date
1. Change Displayed Time and Date You could set displayed time and date manually, follow ing below procedures - Press【 】 - Select Configuration Date/Time Edit Input form is XX(month).XX(day).XXXX(year).XX(hour). XX(munite).XX(second). Substitu te * for . (dot) - Delete wrong input digits, save the settings or quit by pressing corresponding soft keys as LCD indication Note: This is not a necessary setting. -
Page 12: Select Ring Type
2-4. Select Ring Type You co uld set d ifferent ring types to distinguish phone calls o change ring type for incoming calls Press【 】. Select ConfigurationRinger Set Ringer TypeEdit. Use【 】 to select ringer type 】or【 Press corresponding sof t key to Save or Quit - To... -
Page 13: To Adjust Ringer Volume
- To adjust ringer volume Press【 】. Select configuration Ringer Set Ringer V olumeEdit Use【 】or【 】 to select ringer volume, and press corresponding soft key to Save or Quit 2-8. Enable Headset Function Connect 3190IB Vo IP phone with headset. Press 【 】key to get access to Headset Mode. -
Page 14: Make A Call
Press DEL soft key To delete all items, select All. To delete the cu rrent one, select One. Press YES to c onfirm. Press NO to cancel 10. Make a Call You could make regular calls or point to point calls with 3190IB Note: SIP 1 is default phone number, if SIP account is not chosen while you are making a call, the phone would dial out from S... -
Page 15: Redial An Outgoing Number
- Redial an outgoing number On standby, press 【 】. Use 【 】 and 【 】 to select corresponding call record Pick up handset or press 【 】to dial out 】/【 】/【 】/【 】/【 2-12. Activate Hold Function During conversation, press 【 】to keep line, press it again to release 2-13. -
Page 16: Forward A Call
- Press transfer soft key, then press【 】. Select the appropriate list to get access to your desired number, then press # Before completing the transfer, you could talk to the tran sferee, to see if he/she would like to answer. Press Transfer soft key if you get positive response. -
Page 17: Part Three Web Interface Operation
Part Three Web Interface Operation You could get access to the web configuration menu of 3190IB by inputting the phone’s IP address to Web Browser Address Field. Default access through LAN is http://192.168.11.1:9999 As the phone would obtain by default its IP automatically (on the WAN side), by press ing 【... -
Page 18: Wizard
Phone Number : Shows the status of SIP accounts -WIZARD This is a quick gui de for phone configuration. You could select Static IP/DHCP/PPPoE MODE. Then do corresponding configuration – SIP account & network, as you desired -CALL LOG Show ou oing call log of the phone -MMI SET You could select LCD display language and set greeting messages here 3-3.Network... -
Page 19: Lan
If you choose DHCP: IP address would be obtained automatically If y ou choose PPPoE: Once PPPoE ISP and the account are set, IP address would be obtained automatically fter above settings, you could switch Static/ DHCP/ PPPoE mode from phone unterface. Press n umber key 1 for sevaral seconds to switch to Static Mode, number key 2 is for DHCP mode, while number key 3 is for PPPoE Mode -LAN... -
Page 20: Service Port
-SERVICE PORT You co uld set Telnet, HTTP, RTP service port on this page HTTP Port: To set web browse port. Default is 80. It is advisable that you change it into non-80 standard port if you would like to enhance system safety Telnet Port: To configure telnet port. -
Page 21: Sntp
-SNTP You could set SNTP as you desired. Once time zone is chosen, the phone’s time and date would synchronize that of the correspondin g time zone You co uld set daylight time according to web indication You co uld also set time and date of the phone manually, instead of setting SNTP... -
Page 22: 3-4.Voip
4.VOIP Choose VOIP of the left column to do VoIP configuration. Web would show as below SIP Line Select: Choose the SIP you would like to configure a nd click Load to do corresponding SIP settings Register Status: Indicating registration status o f current SIP account Server Name: Configure Server Name here. -
Page 23: Stun
Register Status: Indicating IAX2 registration status IAX2 Server Addr: Configure IAX2 Server Addr. You could also input the correspo nding domain name IAX2 Server Port/Local Port: Set IAX2 server port/local port. The default is 4569 Account Name/Account Password/Phone Number: Do corresponding settings Voice Mail Text: If IAX2 supports voice mail, you could set voice mail name here Voice Mail Number: Because phone keypad could not input letters when you try to... - Page 24 Dial Peer Table: Indicating the dial peer that you se dd Dial Peer: Set new dial peer as per indication hone Number: You coul d set phone number as below two forms, maximun 30 digits 1) As exact matching When you dial the set phone number, the phone would call to the set destination directly. This is peer to peer call. For example, set phone number as 456, destination is 192.168.0.24 When you dial 456, it would be calling to 192.168.0.24 2) As prefix matching...
-
Page 25: 3-5.Phone
hen you dial out a random number starting with 1, like 12345 , the phone would replace 1 with 96166 and call to 951662345 from SIP 2 el:xxx xx indicates length. When you dial set number, the first several digits would be deleted For example, phone number is 12345**** , destination is 255.255.255.0, alias is del, del length is 3 hen you dial out a 9 digits number starting with 12345, the phone would delete 123... -
Page 26: Dsp
-DSP Set DSP configuration as you desired First – F ifth Codec: Set the priority level of codecs hen you make a call, the phone would use set first codec to match the other party. If fail or not found, the phone would use second codec to match, etc. -
Page 27: Function Key
Add Phone Book: Add name/number/ring type for the new phone book Phone Book Option: You could select the item that you would like to delete/nodify -FUNCTION KEY You co uld do configuration of 5 memory keys here Line Key etting: You could set line key as you desired Function Key Setting: You could choose you desired keys –... -
Page 28: Auto Provision
-AUTO PROVISION could see and configure update settings according to your needs -CONFIG You could save/clear configuratio n by clicking corresponding buttons as web indication Note: Clear Configuration means to reset the phone to default status. -UPDATE... -
Page 29: Account
You could upd ate firmware through Web or FTP, following corresponding indication on web page -ACCOUNT Set Keyboard Password: This is the password to enter phone inter face operation. Default is 123 . You could change and save the setting Add User: You could add new user User Level: Root refers to administration account while General refers to guset account Acco... -
Page 30: Mmi Filter
-MMI FI LTER MMI Fi lter Table Set: You could add MMI Filter Table. Then choose to enable or not MMI Fi lter Table: Display the set MMI Filter Table. You could modify or delete added items -FIREW Firewall Type: You could select firewall type and apply Firewall Input/Output Rule Table: Yo could see the set rules here Firewall... -
Page 31: Nat
-NAT Protoc ol Set: Set the corresponding protocol NAT Ta ble Option: You could set NAT following web indication NAT Ta ble: You could see the added NAT DMZ Config: Click to enter DMZ confi guration interface -VPN VPN IP: Display the phone’s VPN IP VPN Mo de: Select VPN mode and choose enable Config... -
Page 32: Safety Notices
Safety Notices To care for y our product, ple ase keep it aw ay from: Liquids of any kind Don’t expose your product to water, rain, extreme humidity, sweat, or other moisture. Dust and dirt Don’t expose your product to dust, dirt, sand, food, or other inappropriate materials.
