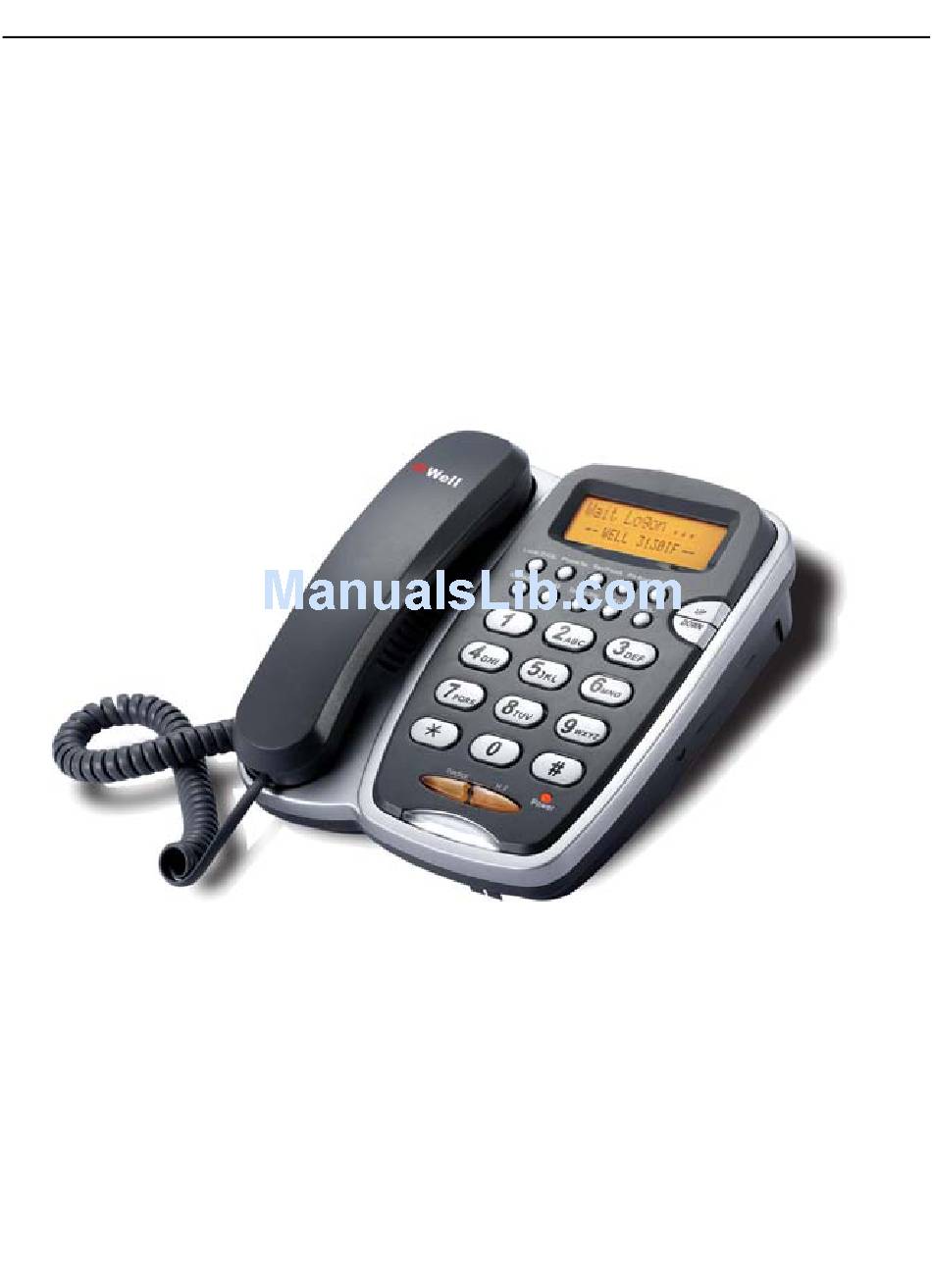

JOYCE 3130IF -VoIP SERIES User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
3130IF -VoIP User Manual V1.2
User Manual
Series
IP Phone
Version 1.2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3130IF -VoIP SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for JOYCE 3130IF -VoIP SERIES

Summary of Contents for JOYCE 3130IF -VoIP SERIES

  • Page 1 3130IF -VoIP User Manual V1.2 User Manual Series IP Phone Version 1.2...

  • Page 2: Table Of Contents

    3130IF -VoIP User Manual V1.2 Contents SUMMARY INTRODUCTION INSTALLATION PRODUCT OVERVIEW BASIC OPERATION CONFIGURATION WITH WEB About This Manual This Manual provides basic information on how to install and connect 3130IF IP Phone to the network. It also includes features and functions of 3130IF IP phone components, and how to use them.

  • Page 3: Introduction

    3130IF -VoIP User Manual V1.2 1 Summary 3130IF IP Phone 3130IF IP phone is a stand-alone device, which requires no PC to make Internet calls. 3130IF IP phone supports both data and Rec/Finish thru IP network, and also provides features of conventional phone. 3130IF IP phone guarantees clear and reliable Rec/Finish quality on IP network.
  • Page 4 3130IF -VoIP User Manual V1.2 Specifications Item 3130IF Adapter (Input/output/frequency) 100-240VA/7.5VDC/60Hz Port 10/100Base T RJ-45 for LAN 10/100Base T RJ-45 for PC Power Consumption 1.8W/1.4W Operating Temperature 0～50℃ Relative Humidity 5～65% Rec/Finish Features: Codec: G.711A/u, G.7231 high/low, G.729 G.168 echo cancel Rec/Finish Gain Setting Jitter Buffer Auto latency recover...
  • Page 5 3130IF -VoIP User Manual V1.2 H245 multiplex H245 DTMF/Q931 DTMF facility Q931 signaling port setting Dual GK support NAT transverse, CITRON NAT transverse, AVS Fast start with early media channel Rec/Finish Peer to Peer H323 call SIP Features: RFC3261, RFC3262, RFC3666, RFC2543 Proxy and Register SIP domain Server authentication: none, basic, MD5...
  • Page 6 3130IF -VoIP User Manual V1.2 Basic NAT and NAPT NAT ALG Under Bridge mode, Access internet by using NAT through PPPoE PPPoE for xDSL, automatically keep alive DHCP Client on WAN DHCP server on LAN DNS client with 2 servers IP DNS relay on LAN Auto configuration on LAN for IP and DHCP server SNTP...
  • Page 7 3130IF -VoIP User Manual V1.2 Limit dialing out No. list No Disturb Caller ID display Call forward without condition or busy Dial out authentication Auto written message Maintenance and Management: Boot Monitor Upgrade firmware through boot monitor Keyboard Config Telnet CLI HTTP WEB FTP, TFTP upgrade firmware HTTP upgrade firmware...

  • Page 8: Installation

    3130IF -VoIP User Manual V1.2 3 Installation 3130IF IP phones are designed to look and feel like standard telephones. The following photo illustrates the appearance of a 3130IF IP phone and the use of its key buttons. Installation Remove the LAN cable for Internet connection from your PC and connect it to ‘WAN’...

  • Page 9: Product Overview

    3130IF -VoIP User Manual V1.2 4 Product Overview 3130IF IP Phone is a next generation IP network telephone based on industry open standard SIP (Session Initiation Protocol) and H.323. Built on innovative technology, 3130IF IP Phone features market leading superb sound quality and rich functionalities at mass affordable price.

  • Page 10: Basic Operation

    3130IF -VoIP User Manual V1.2 5 Basic Operations 5.1 Get Familiar with Keypad 3130IF phone has a 26-button keypad. Key Button Key Button Definitions 0 - 9, *, # Digit, star and pound keys are usually used to make phone calls Local IP/OK Display local IP address on LCD and enter key...
  • Page 11 3130IF -VoIP User Manual V1.2 5.2 Make Phone Calls Make Calls Using Regular Phone or Extension Numbers. There are three ways to make phone calls: 1. Pick up handset or press H.F button, and then enter the phone numbers 2. Press the Redial button directly to redial the number last called. Once pressed, the last dialed number will be displayed on the LCD as the corresponding DTMF tones are played out and an outgoing call is sent.
  • Page 12 3130IF -VoIP User Manual V1.2 Press “Down” or “Up” key and LCD show” ---REC/FINISH record--- User-Defined Press “Local IP/OK” key and “Up” key and LCD show: --- User-Defined --- Press “Local IP/OK” key and LCD show: Press OK to Rec Press “Local IP/OK”...
  • Page 13 3130IF -VoIP User Manual V1.2 Press “Rec/Finish” key and LCD show: ---REC/FINISH record--- Received Press “Local IP/OK” key and LCD show: ---Received--- Press “Local IP/OK” key and LCD SHOW: --- New record --- Record 1 Press “Local IP/OK” key and LCD SHOW: --- Record 1--- Play Press “Local IP/OK”...

  • Page 14: Configuration With Web

    3130IF -VoIP User Manual V1.2 6 Configuration with WEB The IP Phone Web Configuration Menu can be accessed by the following URI: http://Phone-IP-Address. The default LAN IP address is “192.168.10.1” and WAN IP address is “192.168.1.179”. If the web login port of the phone is configured as non-80 standard port, then user need to input http://xxx.xxx.xxx.xxx, otherwise the web will show that no server has been found),it will be shown as follows:...
  • Page 15 3130IF -VoIP User Manual V1.2 IP and IP（static state, DHCP, PPPoE),MAC address, WAN IP address of the phone, LAN IP address of the phone, opening state of LAN DHCP server. The VoIP section shows the current default signaling protocol in use, and server parameter in use of each protocol: including GateKeeper IP of H323,H323ID,whether enables register, whether has registered on GK;...
  • Page 16 3130IF -VoIP User Manual V1.2 6.2 User verification User should login before configurating dialogue machine. Guest account: the default username and password are all" guest", user can have a browse of system. Administrator account: the default username and password are all" admin", this user can configure the system.
  • Page 17 3130IF -VoIP User Manual V1.2 6.3 Network configuration Wide area network（WAN） User can view the current network IP linking mode of the system on this page. User will be authorized to set the network IP, Gateway and DNS if the system adopts the static linking mode.
  • Page 18 3130IF -VoIP User Manual V1.2 Configuration Explanation: Current phone IP, subnet mask, mac address and current phone IP; Select acquisition way of IP for WAN; This is single option; Configure static IP parameter for WAN;...
  • Page 19 3130IF -VoIP User Manual V1.2 Configure static IP address; Configure subnet mask; Configure IP address of the phone; Configure "DNS domain" suffix;if user input "domain" and it can't be resolved,then the phone will add and resolve the "domain" after user has input; Main DNS server IP address;...
  • Page 20 3130IF -VoIP User Manual V1.2 PPPoE account; PPPoE password; Configure the parameter and then click "apply" to go into effect. Local area network (LAN) User can make local area network (LAN) configuration on this page, when bridging mode is selected, the local area network (LAN) configuration will no longer go into effect.
  • Page 21 3130IF -VoIP User Manual V1.2 longer set IP address for LAN physical port, LAN and WAN will join in the same network; Configure LAN static IP; Configure LAN subnet mask; Enable LAN port DHCP server; after user modify LAN IP, the phone will automatically modify the adjustment and save the configuration according to IP and subnet mask team DHCP Lease Table, user need to restart the phone to make DHCP server configuration go into effect;...
  • Page 22 3130IF -VoIP User Manual V1.2 Configuration Explanation: show H323 register state; if register successfully, there will show Registered in the square bracket, otherwise show Unregistered; Configure default GateKeeper IP address; Configure default GK port;...
  • Page 23 3130IF -VoIP User Manual V1.2 Configure default GK ID; if no special requirement of GK, user don't need to fill in anything; The system initiates Q931 signal port,the default is 1720; Configure the net gate RAS register port for the system; terminal user can logon to gatekeeper through RAS passage and make a request for allowing to initiate the call request.
  • Page 24 3130IF -VoIP User Manual V1.2 Early245 configuration, which means that when initiating a call, the 225 message transmission begins at the same time with 245 message transmission, the default is Disable; Configure enable/cancel register; Configuration for transferring 245 message package to 225 message package;...
  • Page 25 3130IF -VoIP User Manual V1.2 PSTN color ring; Configure GK backup and enable GK detecting and auto-swap functions ,the phone will automatically swap to GK backup server when there is no response from default GK, and test the default GK; if the default GK recovers response, the phone will automatically swap to the default GK.
  • Page 26 3130IF -VoIP User Manual V1.2 SIP configuration User can configure specific parameter of H323 signaling protocol on this page. Configuration Explanation: show SIP register state; if register successfully, there will show Registered in the square bracket, otherwise show Unregistered; Configure SIP register server IP address; Configure SIP register server signal port;...
  • Page 27 3130IF -VoIP User Manual V1.2 Configure SIP register account（usually it is the same with the port number that configured, some special SIP servers will have different port configurations, then the port configuration needs to be configured to be numbers, here the configuration account can be arbitrary character string）;...
  • Page 28 3130IF -VoIP User Manual V1.2 Configure local signal port, the default is 5060（this port will go into effect immediately, the SIP call will use the modified port for communication after modification）; Configure expire time of SIP server register, the default is 600 seconds. If the expire time that server requires is more or less than that configured by the phone, the phone can automatically modify it to the recommended time limit and register;...
  • Page 29 3130IF -VoIP User Manual V1.2 Configure SIP of the phone as default protocol; Enable the phone to use protocol edition. When the phone need to communicate with phones which is using SIP1.0 such as CISCO5300 and so on, then it should be configured into RFC2543 to communicate normally. the default is to enable RFC3261;...
  • Page 30 3130IF -VoIP User Manual V1.2 should both be chosen; After the aforesaid network and VoIP configurations have been configurated on the phone and internetwork communication has been implemented, the user can make VoIP calls by the calling register and proxy. SOME ISP INTERNET MAY INHIBIT THE PHONE TO REGISTER AND CANCEL THE REGISTER IN SUCCESSION, SO USER HAD BETTER NOT APPLY OR REGISTER AND CANCEL SOON IN SUCCESSION AND SUBMIT...
  • Page 31 3130IF -VoIP User Manual V1.2 Configure telnet port, the default is 23 port; Enable RTP initial port configuration. It is dynamic allocation; Configure the maximum quantity of RTP port. The default is 200; Leased IP-MAC correspondence table of DHCP; The configuration on this page needs to be saved after mo dified and will go ※...
  • Page 32 3130IF -VoIP User Manual V1.2 server is redundancy backup of public server, it should have the same account with public server. The phone’s supports to two different kinds of SIP server concurrently can be implemented on private server. In this way user can register and use two different kinds of services concurrently.
  • Page 33 3130IF -VoIP User Manual V1.2 Configure IP address of SIP STUN server; Configure port of SIP STUN. STUN can support SIP terminal's penetration to NAT in the inner-net. In this way, as long as there is conventional SIP proxy and a STUN server placed in the public net, it will do;...
  • Page 34 3130IF -VoIP User Manual V1.2 Interval time for STUN's detection on NAT type, the unit is minute; Configure enable/disable SIP STUN; Configure permit/deny private server register; Configure enable/disable private outbound proxy; If user has accounts of a certain SIP server and each account has different password, then user should add each account and its corresponding password to the account&...
  • Page 35 3130IF -VoIP User Manual V1.2 Select accounts that you want to delete from the drop-down menu, click delete. Select drop-down menu to select accounts that want to modify, click load to load the configuration and then click modify to modify; Accounts to be Modified, read-only;...
  • Page 36 3130IF -VoIP User Manual V1.2 Configuration Explanation: Configure hot-line number of the port. With this number of the port, this hot-line number will be dialed automatically as soon as off-hook and user can's dial any other number; Call forwarding. The default is Disable; when busy is selected, if the number dialed is engaged after the phone has received a call, then it will automatically transfer to the configured number according to the following configuration;...
  • Page 37 3130IF -VoIP User Manual V1.2 number IP configuration of call transfer (CT); Configure enable/disable call waiting service; after it is enabled, user can hold calls of the other party by hooking, with hooking again, the hold call can go on; Configure enable/disable call transfer (CT);...
  • Page 38 3130IF -VoIP User Manual V1.2 Configure enable/disable User-Defined Rec/Finish, then enable Rec/Finish record, the phone will auto request user leave message. After the aforesaid configuration has been done, click apply to make them go into effect. Configure add/delete blacklist. If user doesn't want to answer a certain number, please add this number to the list, and then this number will be unable to get through the phone.
  • Page 39 3130IF -VoIP User Manual V1.2 Configuration Explanation: Configure output volume; Configure input volume; Configure handsfree volume; Configure handdown time, that is, if the hooking time is shorter than this time, then the gateway will not consider the user has handdown. 6.6 Number binding configuration Number IP table configuration...
  • Page 40 3130IF -VoIP User Manual V1.2 Function of number IP table is one way to implement the phone's calling online, and the calling of the phone will be more flexible by configurating the number IP table. For example, user know the other party's number and IP and want to make direct call to the party by point-to-point mode: the other party's number is 1234,make a configuration of 1234 directly ,then the phone will send the called number1234 to the corresponding IP address;...
  • Page 41 3130IF -VoIP User Manual V1.2 Display of calling number IP image list; Click Add, the following figure will be shown at the lower part of the page, of which; It is to add outgoing call number, there are two kinds of outgoing call number setup: One is exactitude matching, after this configuration has been done, when the number is totally the same with the user's calling number, the phone will make the call with this number's IP address image or configuration;...
  • Page 42 3130IF -VoIP User Manual V1.2 Configure destination address, if it is point-to-point call, then input the opposite terminal's IP address, it can also be set as domain name and resolved the specific IP address by DNS server of the phone. If no configuration has been made, then the IP will be considered as 0.0.0.0.
  • Page 43 3130IF -VoIP User Manual V1.2 Of which the alias can be divided into four types, it should be combined with replacing length to make the setup: Add: xxx, add xxx before number. in this way it can help user save the dialing length;...
  • Page 44 3130IF -VoIP User Manual V1.2 this is the modified number. read-only; To modify call mode; To modify destination address; this is optional configuration item; To modify destination phone port;this is optional configuration item; To modify alias; this is optional configuration item; To modify suffix;...
  • Page 45 3130IF -VoIP User Manual V1.2 the default condition, user can only make calls by the default protocol. Configure the number IP table to select the call protocol, then user don’t need to select default protocol before making calls every time. The configuration process will not be repeated, now I will mainly introduce what kind of number IP image can implement this function.
  • Page 46 3130IF -VoIP User Manual V1.2 The system configuration can be set as factory default configuration on clear config page and the phone will restart automatically. 6.8 Upgrade on-line Upload WEB page On this page, user can select the upgrade document (firmware or config file) on hard disk of the computer directly to run the system upgrade.
  • Page 47 3130IF -VoIP User Manual V1.2 FTP download On this page, user can upgrade system and configure files by FTP or TFTP mode.
  • Page 48 3130IF -VoIP User Manual V1.2 Configuration Explanation: Configure upload or download FTP/ TFTP server IP address; Configure username of the upload or download FTP server. If user select TFTP mode, username and password are not required to be configured;...
  • Page 49 3130IF -VoIP User Manual V1.2 Configure upload or download of FTP server password; Configure upload or download system upgrade document or system layout file name. It should be noted that system file take .dlf as suffix, configuration files take .cfg as suffix; Select server type;...
  • Page 50 3130IF -VoIP User Manual V1.2 the computer, and then make modification to the system configuration, after the download, restart the phone and the configuration will go into effect. 6.9 System management Account management On this page, user can add and delete users according to own needs and can modify user's authorities there have been.
  • Page 51 3130IF -VoIP User Manual V1.2 Add new accounts; As account level; root possesses authorities to modify configuration, general possesses read-only authority; as corresponding password of the additive account; As second confirmation of password, to ensure correct setup of password; Click submit to go into effect; click return to cancel configuration and return.
  • Page 52 3130IF -VoIP User Manual V1.2 level-admin and the ordinary level－guest are all weak account and weak password, the username and password will be easily to be guessed on public network, so the user had better modify the administrator and ordinary user. Enter with manager level when making modification, create a administrator account and a browse account (you'd better not set the name as admin, administrator, guest, etc.),set password and then save configuration, entering...
  • Page 53 3130IF -VoIP User Manual V1.2 Configure VPN server address; Configure VPN server port; Configure VPN server group ID; Configure VPN server area code;...
  • Page 54 3130IF -VoIP User Manual V1.2 Configure enable/disable VPN tunnel; Configure out GK address. Time zone configure On this page, user can save and configure time zone setting. Configure the desired time zone.
