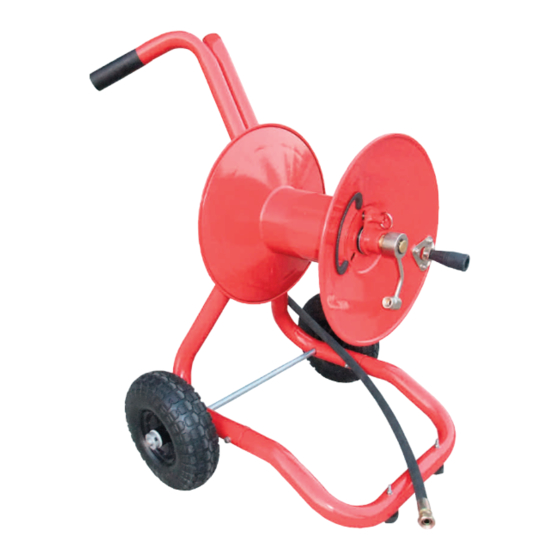

- Page 1 HIGH-PRESSURE HOSE REEL OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic precautions may result in serious injury. ITEM #16012...
- Page 2 Thank you very much for choosing a NorthStar™ product. For future reference, please complete the owner’s record below: Model: Purchase Date: Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This item is designed for certain applications only.
- Page 3 WORK AREA Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. • • Keep children and bystanders away while operating this hose reel. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. •...
- Page 4 EXPLODED VIEW AND PARTS LIST 24 24 27 27 32 32 13 13 31 31 28 28 25 25 10 10 17 17 12 12 18 18 20 20 11 11 15 15 14 14 16 16 DETAIL B SCALE 1 :4 SCALE 1 : 4 19 19 DETAIL C...
