Summary of Contents for Rosewill RSV-S4-X

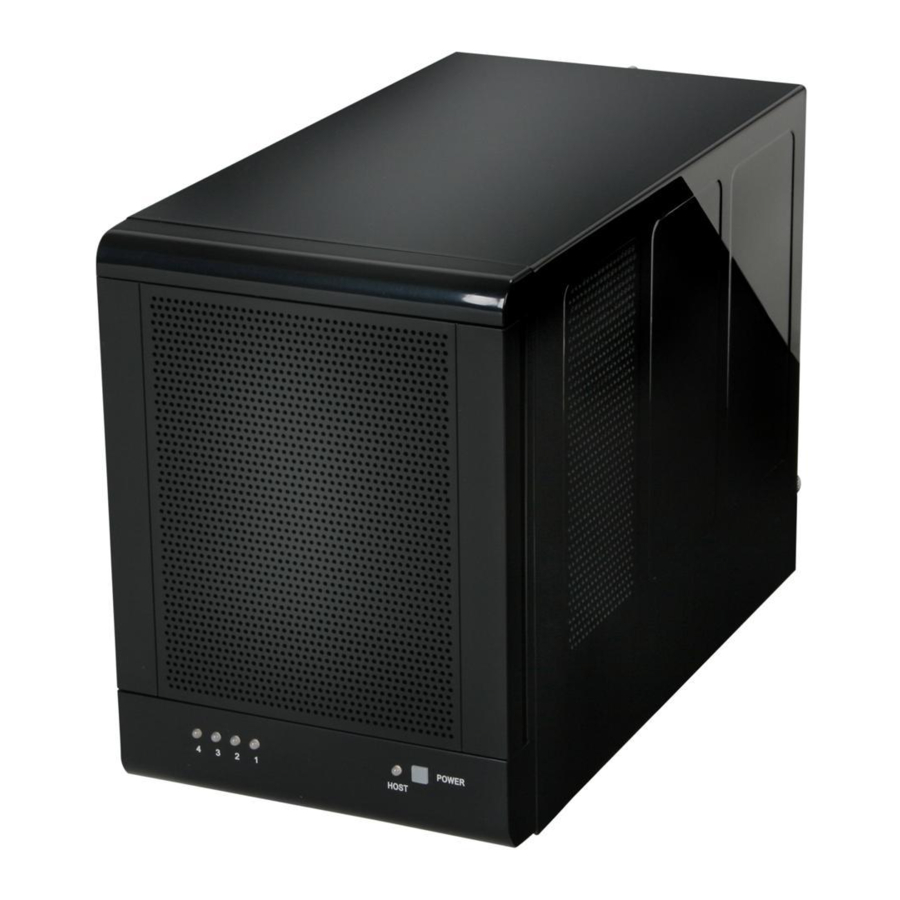

- Page 1 4 Bay SATA to eSATA RAID SUB system RSV-S4-X Quick Installation Guide Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
- Page 2 2-port eSATA PCIe Adapter Screws Set Quick Installation Guide CD Manual * Please contact Rosewill customer service in case of anything missing Hard Drive Installation 1. Remove the tool-less screws on the back panel. 2. Remove the upper chassis cover backwards and lift it upward.
- Page 3 4 Bau SATA tp eSATA RAID SUB system RSV-S4-X Quick Installation Guide 5. Close the front panel and the chassis cover, and fasten the tool-less screws on the back panel. Hardware Connection Diagram Installing the PCIe Adapter Card to a Computer...
- Page 4 4 Bau SATA tp eSATA RAID SUB system RSV-S4-X Quick Installation Guide Windows System Installation Step 1 From your desktop, point the cursor at “My Computer”, right click and select “Manage”. Step 2 Right click on “Mass Storage Controller” and select “Update Driver”.
- Page 5 4 Bau SATA tp eSATA RAID SUB system RSV-S4-X Quick Installation Guide SATALink Controller”, please select and click “OK”. RAID Mode Setup and Diagrams To setup RAID mode, please insert the included CD into the computer and install the SATA RAID Utility. Follow the installation guide in the Detailed Manual to fully setup...
