Safety Instructions
Before operating this product, please read the user's manual of safety
instructions. The safety instructions are to help you use this product in a
safe and correct way, and to prevent danger or injury to yourself or others.
① Turn on power.
② Select applicable program
③ Perform Arc Check.
※ Please see "Arc Check" for
details.
④ Insert protection sleeve.
⑤ Prepare the fibers.
⑥ Set fibers to the splicer.
⑦ Press
key.
⑧ Remove spliced fiber.
⑨ Slide protection sleeve over
spiced point.
⑩ Place fiber to heater.
⑪ Press
key.
⑫ Remove the fiber.
FITELS123M12

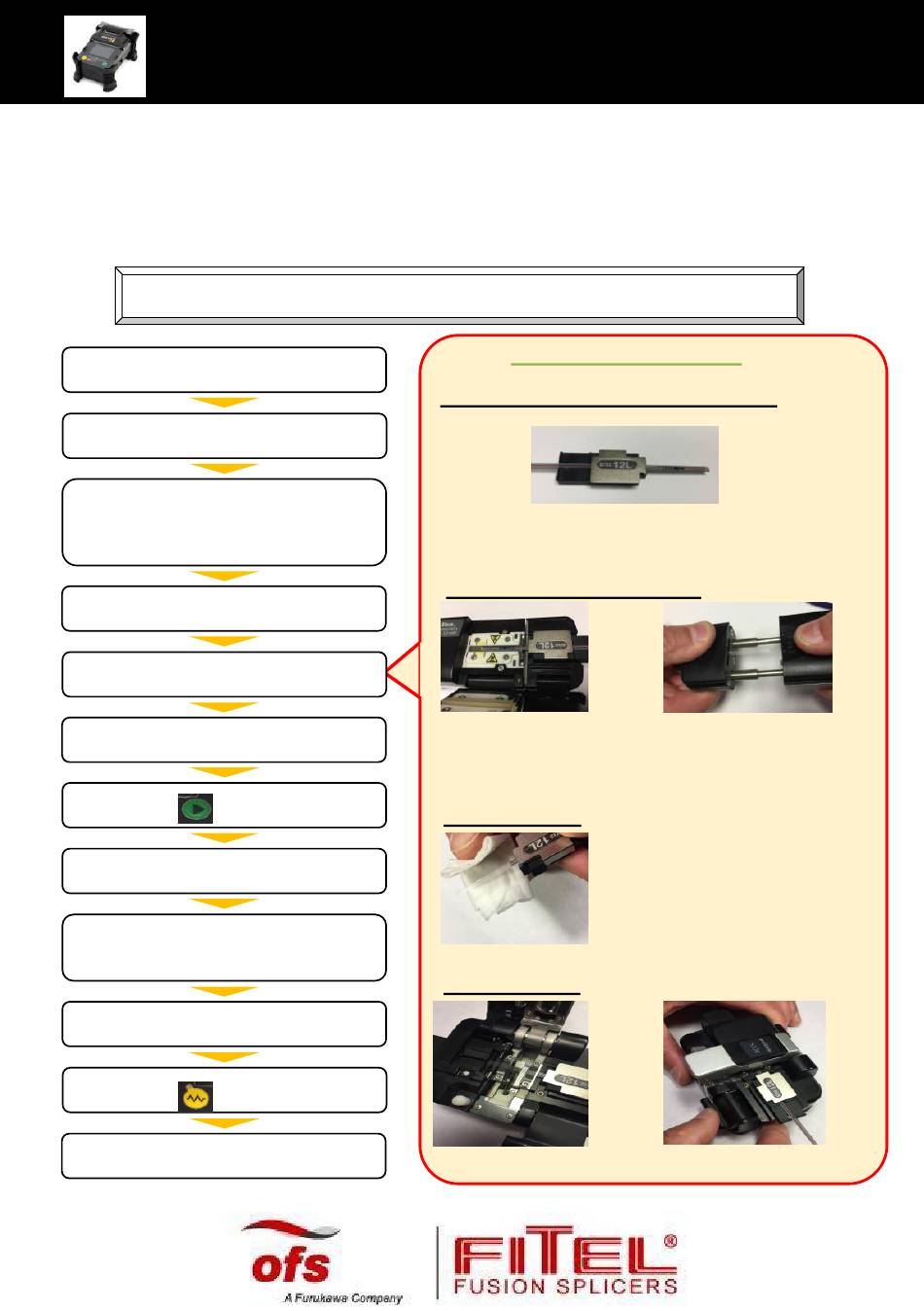

Quick Reference guide
Splicing Procedure
Setting the Fiber in the Fiber Holder
*
.
Place the ribbon fiber into the fiber holder leaving
30mm of ribbon from the edge of the holder.
Stripping the Fiber Coating
Use the S218R hot stripper to remove ribbon
fiber coating. For detailed information, refer
to the S218R operating instructions.
Fiber Cleaning
Fiber Cleaving
Place fiber holder into cleaver, then press the lever.
< Fiber Preparation >
Clean the bare fiber with a lint free
wipe soaked with fiber prep fluid.
Advertisement
Related Manuals for Furukawa ofs FITEL FITELS123M12
Summary of Contents for Furukawa ofs FITEL FITELS123M12
- Page 1 FITELS123M12 Quick Reference guide Safety Instructions Before operating this product, please read the user’s manual of safety instructions. The safety instructions are to help you use this product in a safe and correct way, and to prevent danger or injury to yourself or others. Splicing Procedure <...
- Page 2 FITELS123M12 Quick Reference guide Selecting a Fusion Program* < Fusion Program> Select “All Programs”. Select “Fusion PRGM” Select applicable icon from the menu. fusion program. < Heater Program> Select “Heater PRGM” Select applicable icon from the menu. heater program. Arc Check Arc Check is the function to adjust the arc power in order to ensure optimal splicing results.
- Page 3 FITELS123M12 Quick Reference guide Cleaning and Maintenance Procedures < Cleaning V-groove> Cleaning brush Clean V-groove by using a cleaning brush Run fiber across V-groove to or a cotton swab soaked with ethanol. remove dust in V-groove. < Cleaning Fiber Clamp> Clean Fiber Clamp by Fiber Clamps using a cotton swab...
- Page 4 FITELS123M12 Quick Reference guide Operation Keys Up/ Down/ Left/ Right Key Move the cursor and change the value Function 1 Key Function 2 Key Select the function shown on the Select the function shown on the left bottom corner of LCD. right bottom corner of LCD.
