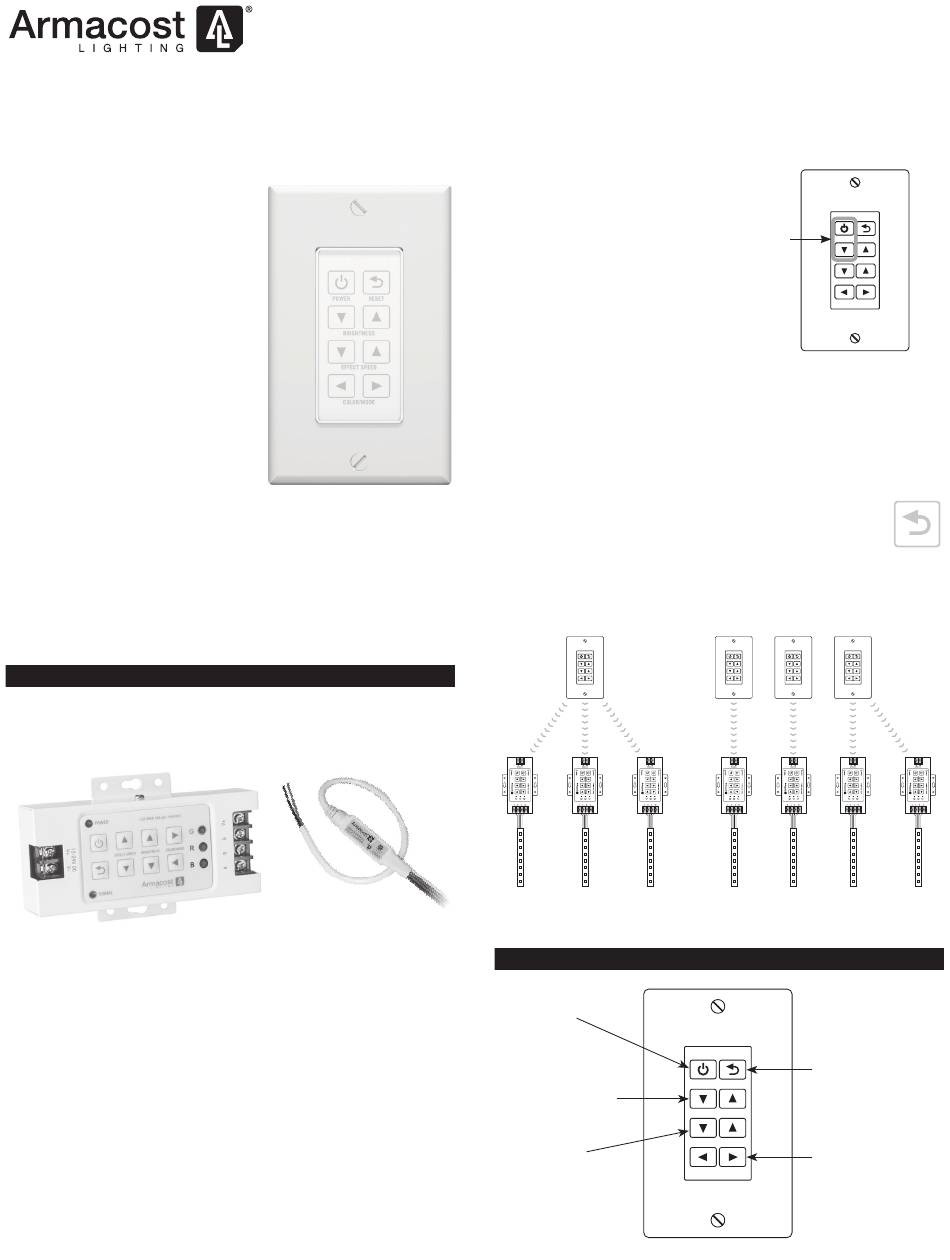

Armacost Lighting RGB14REM Manual

Wireless Touchpad for 30 Color RGB LED Controller
Model: RGB14REM, Item: 733420
The Armacost Lighting Wireless
Touchpad is for use only with
Armacost Lighting's professional
grade 30 Color RGB LED Controller
(Model RGB8KEY-RF-WR) and 30
Color RGB Slimline Controller with
Hand Held Remote (HHRGB14).
It provides remote control of low
voltage RGB LED lighting and works
through walls and doors up to 100
ft. away. Using radio frequency (RF)
technology, it eliminates the need to
run wires from the RGB LED lighting
to the wireless touchpad and is
useful in projects where installing
new cabling can be diffi cult.
Features RF pairing technology
■
for expandability and multi-zone
lighting control. The wireless
touchpad can be paired to control
and synchronize multiple Armacost Lighting RGB controller receivers
in the same area, or multiple touchpad/receiver sets can control
different zones of lighting in the same area without cross interference.
Includes designer-style wireless touchpad, mounting screws, drywall
■
anchors, and battery.
Units are for dry location only. If used outdoors, keep in a dry
■
location. Wireless function may cease to operate properly in close-
to-freezing temperatures.

SET UP AND PAIRING

Your RGB color controller contains a radio frequency (RF) receiver that
will need to be programmed or paired to recognize the frequency code
of the wireless touchpad.
Model RGB8KEY-RF-WR
The wireless touchpad only works with
Armacost Lighting's 30 Color RGB LED controllers,
models RGB8KEY-RF-WR and HHRGB14.
1. Following the instructions that came with your color controller,
connect the RGB color controller receiver to your power supply and
RGB LED lights. Be sure your power supply is turned on. The red
power indicator light will illuminate on model RGB8KEY. Model
HHRGB14 does not have a power indicator light. Turn your LED
lighting on and select any a static color using the mode key on
the receiver. Model HHRGB14 will already be on a static color or
change using the hand held remote that was supplied with the unit.
2. Shut off power to the receiver unit by unplugging the power
supply – do not use the power OFF key on model RGB8KEY.
Wait at least 5 seconds.
For model RGB8KEY-RF-WR the green
signal light on the receiver will fl ash once
to confi rm successful pairing. For model
HHRGB14, the LED tape light will quickly
fl ash once when paired.
Common Code Pairing
It is possible to pair multiple receivers to the same single transmitter
by simply repeating the steps above with additional receiver units.
Please note that only static colors will synchronize; color-changing
effects will not synchronize due to the various cycling speeds of each
unit. In addition, if you repeatedly press any of the touchpad keys too
fast, the RGB controllers will lose their synchronization.
To re-synchronize, press the reset key on the touchpad
transmitter. All receivers and RGB LED lighting will reset to the
same off-white color. For effective synchronization, all receivers
must be within range of the single wireless touchpad.
Note: you can also "un-pair" the RGB controllers by following the
process above but press the brightness up and brightness down keys.
Model HHRGB14

WIRELESS TOUCHPAD OPERATION

Power ON/OFF
BRIGHTNESS
Controls the light
level for static colors
and jump and strobe
effects. Brightness is
not adjustable in any
color fade effects.
EFFECT SPEED
Controls the speed
of all color-changing
effects. Arrow up for
faster, down for slower.
3. Press and hold the power and
brightness down keys simultaneously.
While continuing to hold the buttons,
restore power to the color controller.
This action will pair the two devices.
Common Code Pairing
Pairing and RF code technology can greatly reduce the need for extra wiring.
Unique Code Pairing
RESET key will take
unit to the #1 sequence
off-white color. At the
same time, it will return
brightness settings on
all colors to 100%.
Effect speeds will
return to the medium
speed setting.
COLOR/MODE
Press forward arrow
to advance to next
static color or color-
changing effect.
Press back arrow to
return to previous color
or effect displayed.
