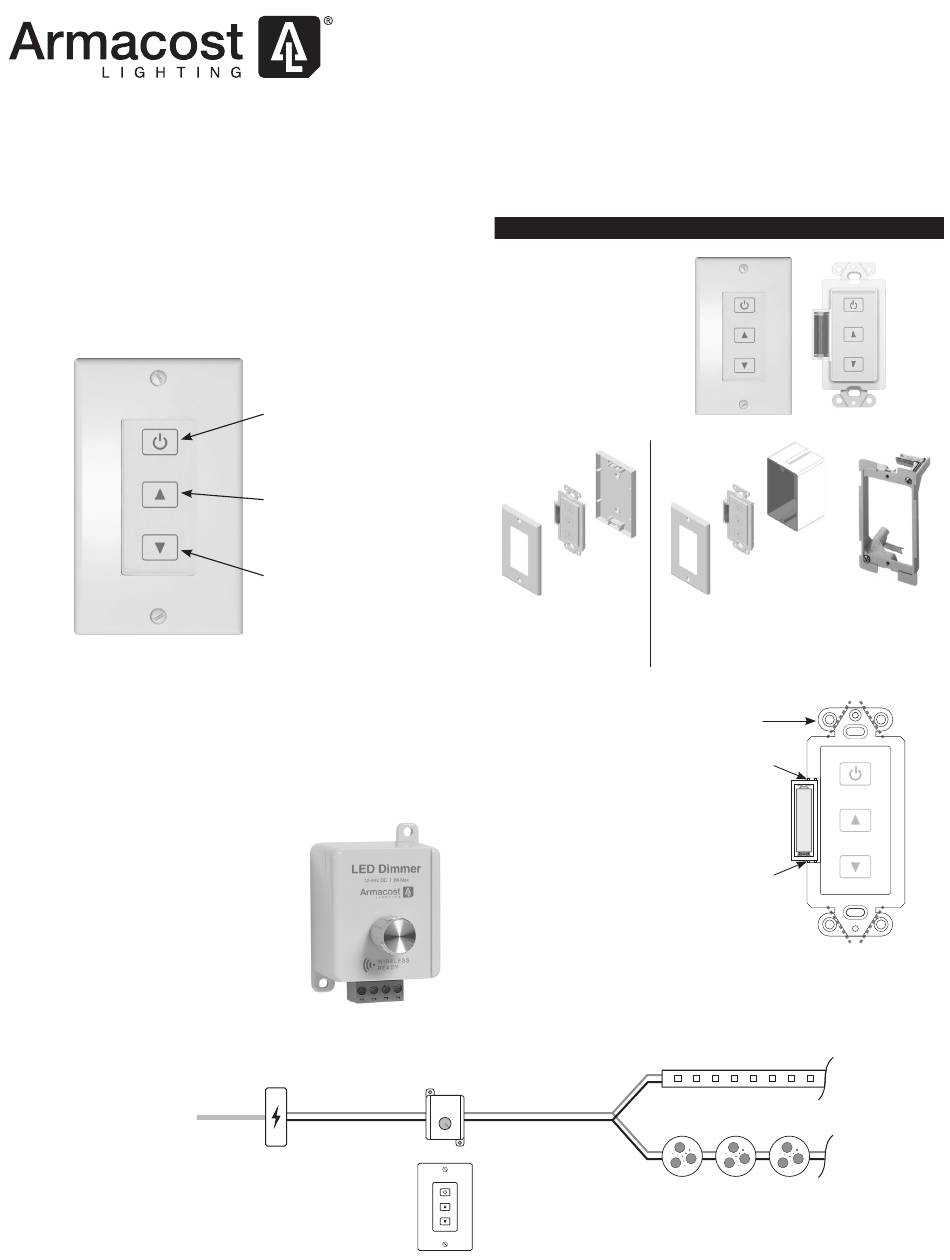

Armacost Lighting DIM14REM Instructions

Wireless Touchpad for 2-in-1 LED Dimmer
Model DIM14REM
This Wireless Touchpad is for use only with Armacost Lighting's
wireless-ready 2-in-1 LED Dimmer (Model DIM2IN1-RF-WR).
It provides remote switching and dimming of low voltage LED
lighting and works through walls and doors up to 100 ft. away.
Using radio frequency (RF) technology, it eliminates the need to
run wires from the LED lighting to the remote switch location, and
is useful in projects where installing new cabling can be diffi cult.
Features RF pairing technology for expandability and multi-zone
lighting control. This remote wireless touchpad can be paired to
control and synchronize multiple dimmer receivers in the same
area, or multiple touchpad/receiver sets can control different
zones of lighting in the same area without cross interference.
Includes designer-style wireless touchpad and all necessary
mounting screws and drywall anchors. Also includes one 12-volt
alkaline battery (23A).
The wireless touchpad is only compatible
with Armacost Lighting's wireless ready
dimmer (Model DIM2IN1-RF-WR).
For dry location only. If used outdoors,
keep in a dry location.
Wireless function may cease to operate
properly in freezing or close to freezing
environments.
Be sure the dimmer has the "wireless
ready" markings below the dimmer knob.
120-volt
AC
On/off key
(press and hold,
do not tap)
Press and hold
to increase
brightness
Press and hold
to dim lighting
Patent No. 9,167,660
STANDARD
ELECTRONIC DC OUTPUT
POWER SUPPLY
12- or
24-volt DC
Plug in
or
direct wire
WIRELESS TOUCHPAD TRANSMITTER INSTALLATION
Surface mount touchpad
transmitter or install
in wall. Designer-style
wall plate and screws
are included.
Easily mount to any
wall or fl at surface
(screws and anchors
included).
Some electrical boxes may require
the removal of tabs as shown, simply
break away with wire cutters.
For multi-gang installations, or in
some smaller electrical boxes, the
battery compartment can be moved to
reduce width. Carefully break away the
compartment at the indicated points,
and use masking tape or silicone glue
to secure the battery compartment to
the back of the touchpad.
Caution: When moving the battery
compartment, do not pull on the
connecting wires.
Note: Compatible with most, but not all, switch plates made
by other manufacturers.
2-IN-1
LED DIMMER
(wireless ready)
12- or
24-volt DC
WIRELESS
TRANSMITTER
Save these instructions!
Can be installed in standard
electrical boxes, or by using
a low voltage wall plate
mounting bracket.
LED TAPE LIGHT
LED DOWN LIGHTS
Typical Low
Voltage Wall
Plate Mounting
Bracket
