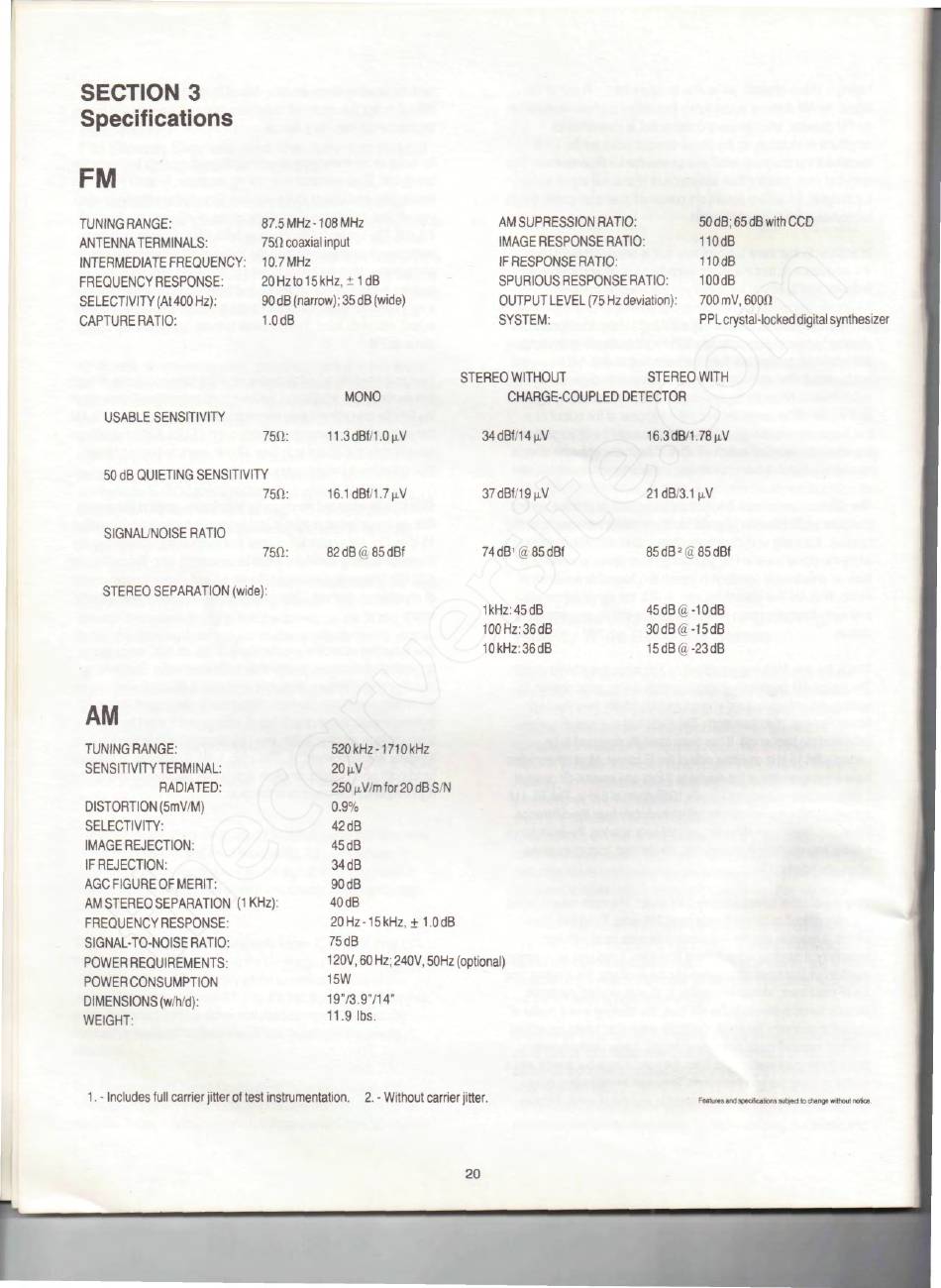

SECTION 3
Specifications
FM
TUNINGRANGE: 87.5 MHz-108 MHz
ANTENNA TERMINALS: 75H coaxial input
INTERMEDIATE FREQUENCY: 10.7 MHz
FREQUENCY RESPONSE: 20 Hz to 15 kHz, ± 1 dB
SELECTIVITY (At 400 Hz): 90 dB (narrow); 35 dB (wide)
CAPTURE RATIO: 1.0 dB
AM SUPRESSION RATIO:
IMAGE RESPONSE RATIO:
IF RESPONSE RATIO:
SPURIOUS RESPONSE RATIO:
50dB;65dBwithCCD
110dB
110dB
100dB
OUTPUT LEVEL (75 Hz deviation): 700 mV, 600H
SYSTEM: PPL crystal-locked digital synthesizer
USABLE SENSITIVITY
750:
50 dB QUIETING SENSITIVITY
75(1:
SIGNAL/NOISE RATIO
75(1:
STEREO SEPARATION (wide):
MONO
16.1dBf/1.7>iV
82dB(a85dBf
STEREO WITHOUT STEREO WITH
CHARGE-COUPLED DETECTOR
34dBf/14^,V
37dBf/19^V
74dB
1
(a85dBf
1kHz: 45 dB
100 Hz: 36 dB
10kHz:36dB
16.3dB/1.78^V
21 dB/3.1 (
85dB
2
(a85dBf
45dB(a-10dB
30dB(a-15dB
15dB@-23dB
AM
TUNINGRANGE:
SENSITIVITYTERMINAL:
RADIATED:
DISTORTION (5mV/M)
SELECTIVITY:
IMAGE REJECTION:
IF REJECTION:
AGC FIGURE OF MERIT:
AM STEREO SEPARATION (1 KHz):
FREQUENCY RESPONSE:
SIGNAL-TO-NOISE RATIO:
POWER REQUIREMENTS:
POWER CONSUMPTION
DIMENSIONS (w/h/d):
WEIGHT:
520 kHz-1710 kHz
20 nV
250^V/mfor20dBS/N
0.9%
42 dB
45 dB
34 dB
90 dB
40 dB
20Hz-15kHz, ±1.0dB
75 dB
120V, 60 Hz; 240V, 50Hz (optional)
15W
19V3.9V14"
11.9 Ibs.
1. - Includes full carrier jitter of test instrumentation. 2. - Without carrier jitter.
Features and specifications subject to change without nonce
