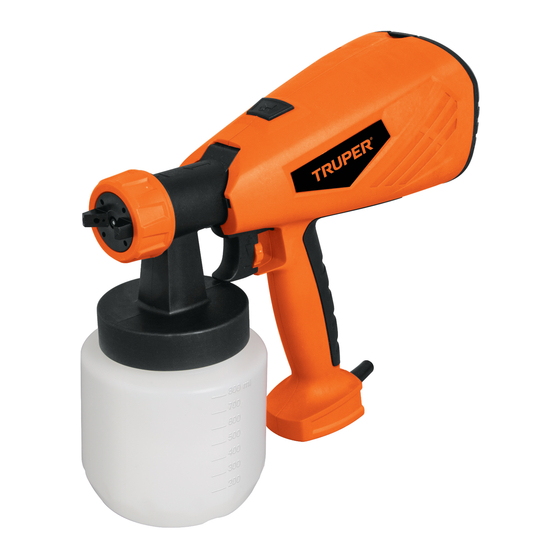

  • Page 1 Instructivo de Pistola eléctrica para pintar 330 W Potencia Este Instructivo es para: Modelo Código PIPI-33E 15382 PIPI-33E Lea este Instructivo por completo ATENCIÓN antes de usar la herramienta.
  • Page 2: Table Of Contents

    Preparación Guarde este Instructivo para futuras referencias. Puesta en marcha Los gráficos de este Instructivo son para referencia, pueden variar del aspecto real de la Mantenimiento herramienta. Solución de problemas Centros de Servicio Autorizados Póliza de Garantía PIPI-33E ESPAÑOL...
  • Page 3: Especificaciones Técnicas

    Especificaciones técnicas PIPI-33E Código 15382 Descripción Pistola eléctrica para pintar Tensión 127 V Frecuencia 60 Hz Corriente 2,6 A Potencia 330 W Contenedor 800 ml Flujo máximo 230 ml/min Ciclo de trabajo 30 minutos de trabajo por 15 minutos de descanso. Máximo diario 3 horas.
  • Page 4: Advertencias Generales De Seguridad Para Herramientas Eléctricas

    Advertencias generales de seguridad para herramientas eléctricas ¡ADVERTENCIA! Lea detenidamente todas las advertencias de seguridad y todas las instrucciones que se enlistan a continuación. La omisión de alguna de ellas puede dar como resultado un choque eléctrico, incendio y/o daño serio. Conserve las advertencias y las instrucciones para futuras referencias. Área de trabajo No sobrepase su campo de acción.
  • Page 5: Advertencias De Seguridad

    Advertencias de Seguridad para uso de pistolas pulverizadoras Substancias y materiales Mientras opera el equipo ATENCIÓN • El equipo está diseñado para aplicar • Nunca apunte la pistola pulverizadora ATENCIÓN materiales de recubrimiento como pintura, barniz, esmalte, hacia usted ni a otras personas o animales. etc.
  • Page 6: Partes

    Partes Seguro de la cubierta del filtro de aire Seguro del Seguro del cilindro cilindro Seguro Cilindro de rocío pulverizador Difusor de rocío Selector de Boquilla volumen de material Gatillo interruptor Cubierta del filtro de aire Mango Protector del cable Cable de alimentación Contenedor...
  • Page 7: Preparación

    Preparación Para obtener buenos resultados con la aplicación del recubrimiento es importante que prepare la superficie a rociar y adelgace la pintura o producto para que obtenga la viscosidad correcta antes de su aplicación. Confirme siempre que la superficie a rociar esté libre de polvo, suciedad y grasa. Confirme que ha enmascarado las áreas que no se vayan a rociar con cinta adhesiva protectora de buena calidad.
  • Page 8: Puesta En Marcha

    Puesta en marcha Selector de rocío • Antes de encender la pistola ajuste el tipo de rocío dependiendo del trabajo a realizar. • Afloje ligeramente el seguro de rocío (A) para que el dispersor de rocío (B) quede libre. • Gire el dispersor a la posición del rocío más adecuado para el trabajo. •...
  • Page 9: Mantenimiento

    Mantenimiento Limpieza y cuidados ADVERTENCIA • Es muy importante limpiar la pistola por completo Nunca limpie con objetos de metal después de cada uso. los sellos, el diafragma y la boquilla, los orificios para aire o Una limpieza inadecuada dará cualquier parte de la pistola para pintar.
  • Page 10: Solución De Problemas

    Solución de problemas Problema Causa Solución El material no sale • La boquilla está bloqueada. • Limpie la boquilla. por la boquilla. • El tubo de succión está bloqueado. • Limpie el tubo de succión. • La posición del selector de volumen está •...
  • Page 11: Centros De Servicio Autorizados

    Centros de Servicio Autorizados En caso de tener algún problema para contactar un Centro de Servicio consulte nuestra página www.truper.com donde obtendrá un listado actualizado, o llame al teléfono: (800) 690-6990 ó (800) 018-7873 donde le informarán cuál es el Centro de Servicio Autorizado más cercano.
  • Page 12: Póliza De Garantía

    . Los gastos de transportación que resulten para su cumplimiento serán cubiertos por . Para dudas o comentarios, llame al 800-690-6990. Importado por: Truper, S.A. de C.V. , Parque Industrial #1, Jilotepec, Edo. de Méx., Méx. C.P. 54240, Hecho en China Sello del establecimiento comercial: Fecha de entrega: www.truper.com...
  • Page 13 Manual Power paint sprayer 0,4 Hp Power Applies for: Model Code PIPI-33E 15382 PIPI-33E Read this manual thoroughly CAUTION before using the tool.
  • Page 14 Manual before Parts using the tool. Preparation Keep this manual for future references. Start up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Troubleshooting Authorized Service Centers Warranty Policy PIPI-33E ENGLISH...
  • Page 15: Technical Data

    Technical data PIPI-33E Code 15382 Description Power paint sprayer Voltage 127 V Frequency 60 Hz Current 2,6 A Power 0,4 Hp Container 27 fl Oz Maximum flow 7,7 fl Oz/min Duty cycle 30 minutes work and 15 minutes idle. Maximum 3 hours per day Conductors 18 AWG x 2C with insulating temperature of 221 °F...
  • Page 16: General Power Tool Safety Warnings

    General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 17: Safety Warnings For Power Sprayers

    Safety warnings for power sprayers Substances and materials While operating the device CAUTION • The device is designed to apply coating CAUTION • Never point the sprayer towards your materials like paint, varnish, enamel, etc. These materials body, passersby or animals. shall have a flashpoint not lower than 70 °F.
  • Page 18: Parts

    Parts Air filter cover lock Cylinder Cylinder lock lock Spray Spray lock cylinder Spray diffuser Nozzle Material volume selector Trigger switch filter cover Handle Power cord protector Power cord Container Cylinder lock Nozzle Spray lock Viscosity ENGLISH...
  • Page 19: Preparation

    Preparation To gain in good results the coating job it is important to prepare the surface to be sprayed. Before applying, thin the paint or product to get the right viscosity. Double-check the surface to be spayed is free of dust, dirt or grease. Mask the areas that are not to be sprayed with good quality masking tape.
  • Page 20: Start Up

    Start up Spray selector • Before starting the paint sprayer adjust the type of spray suitable for the job. • Loosen slightly the spray lock (A) so that the spray disperser (B) is released. • Turn the disperser into the position most suitable for the job. •...
  • Page 21: Maintenance

    Maintenance Cleansing and care WARNING • It is very important to thoroughly clean the paint sprayer Never clean the seals, diaphragm and after each use. nozzle, the air orifices or any part of the sprayer with metal An inadequate cleansing will result in a objects.
  • Page 22: Troubleshooting

    Troubleshooting Problem Cause Solution The material is not • The nozzle is blocked. • Clean the nozzle. coming out from the • The suction pipe is blocked. • Clean the suction pipe. nozzle . • The position of the volume selector is facing •...
  • Page 23: Authorized Service Centers

    Authorized Service Centers In the event of any problem contacting a Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers (800) 690-6990 or (800) 018-7873 to get information about the nearest Authorized Service Center.
  • Page 24: Warranty Policy

    . For questions or comments, call 800-690-6990. Imported by: Truper, S.A. de C.V. , Parque Industrial #1, Jilotepec, Edo. de Méx., Méx. C.P. 54240, Made in China Stamp of the business: Delivery date: www.truper.com...
