Step 9: Repeat Steps 5 through 8 for the left side of the board. Then adjust the velcro closure
on the footstraps on both sides to your comfort. If you do not have adjustable foot straps, it
is recommended that the straps be installed using the largest settings (i.e. facing the fat part of
the plastic washers out, and using the outside screw hole positions on the foot strap) and once
left overnight, then adjustments can be made to make the strap either narrower (adjusting the
plastic washers so that either one or both of the fat side face in towards the strap) or smaller
(using either one or both of the inner stra screw holes - see Fig. 2 for reference).
Step 10: Install grab handle attaching both screws into the inserts positioned closest to the
middle of the board (see Fig. 9).
Step 11: Assemble the fins with the wide part of the fin towards the tip of the board. Do not
use fin screws that look like those in Fig. 10. See Fig. 11 for proper installation.
Congratulations!! Enjoy your new Cabrinha board. Please contact your Cabrinha dealer
for additional assistance or service for your board.

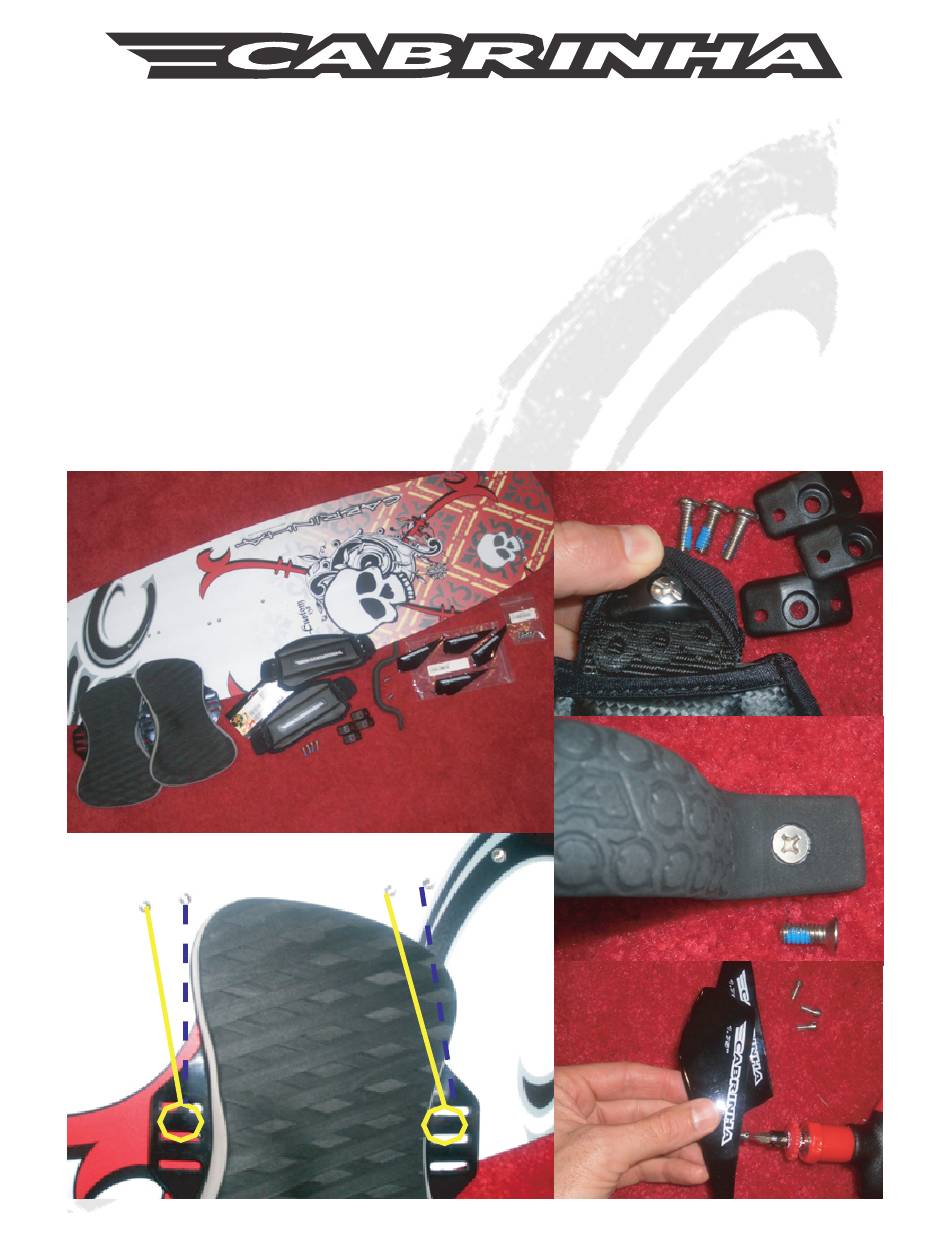

Figure 1
Figure 1
Figure 5
Figure 2
Figure 2
Figure 4
page 2 of 3
Figure 3
