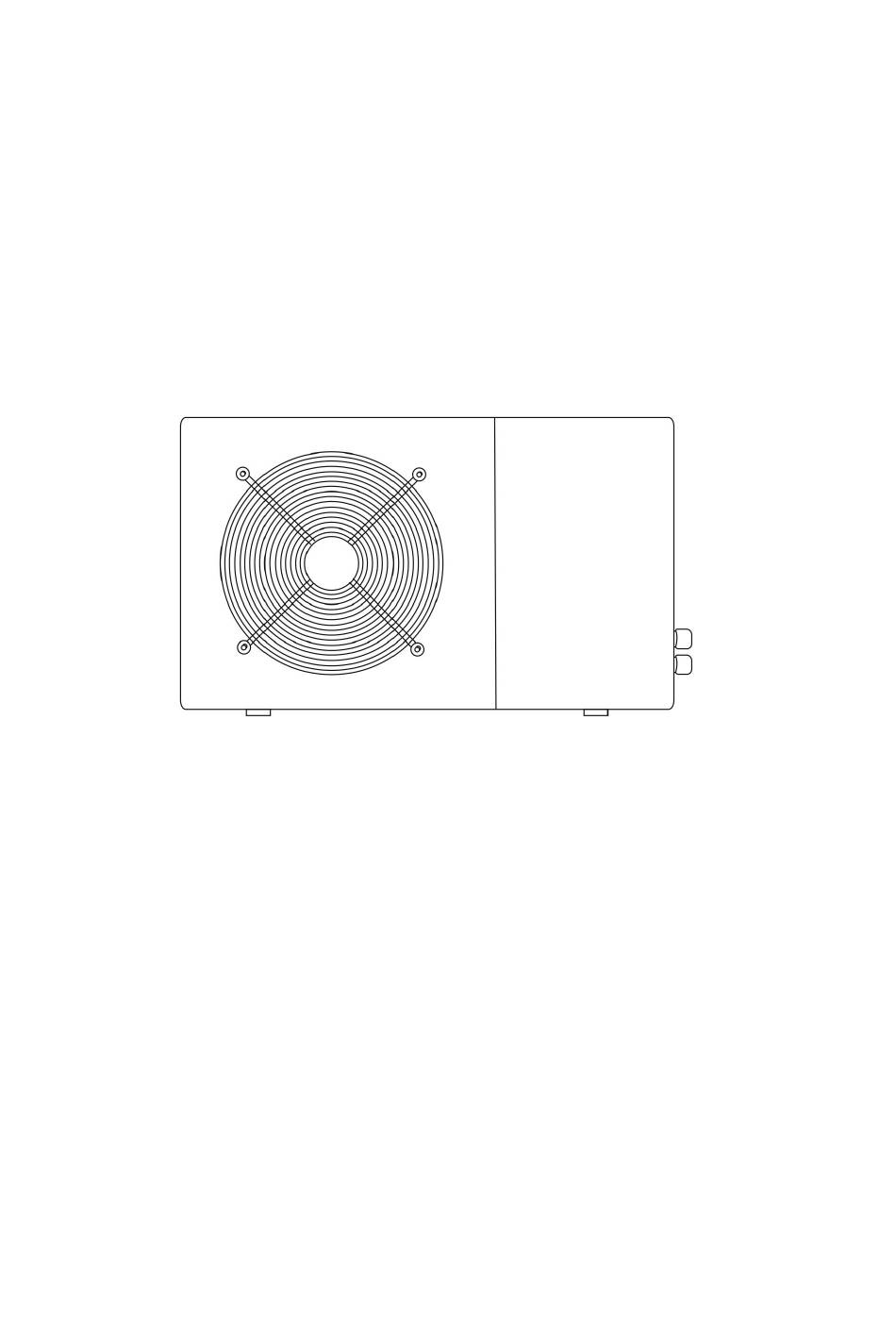

- Page 1 WiFi Swimming Pool Heat Pump User and Service manual - 1 -...
- Page 2 WiFi Swimming Pool Heat Pump User and Service manual INDEX 1. Specifications 2. Dimension 3. Installation and connection 4. Accessories 5. Electrical Wiring 6. Display Controller Operation 7. Running data setting 8. Troubleshooting 9. Exploded Diagram 10. Maintenance 11. Warranty and returns Thank you for using swimming pool heat pump for your pool heating, it will heat your pool water and keep a constant temperature when the ambient air temperature is at -5 to 43℃...
-
Page 3: Specifications
1. Specifications 1.1 Technical data Model PHP03Hs-W PHP06Hs-W PHP09Hs-W PHP12Hs-W PHP16 PHP21 PHP21T PHP25T Heating capacity A26/W26 Power consumption 0.75 1.05 1.50 2.05 2.70 3.58 3.58 5.20 5.71 5.80 5.85 5.93 5.87 5.87 5.95 Heating capacity A15/W26 6,45 11,8 15.0 15.0... - Page 4 2. Dimension PHP06Hs-W Model PHP03Hs-W PHP12Hs-W PHP09Hs-W 1026 182.5 Unit: mm Model PHP25T - 4 -...
-
Page 5: Installation And Connection
3. Installation and connection 3.1 Notes The factory only supplies the heat pump. All other components, including a bypass if necessary, must be provided by the user or the installer. Attention: Please observe the following rules when installing the heat pump: 1. - Page 6 3.3 Distance from your swimming pool The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat loss is low for distances up to 30 m (15 m from and to the pump;...
-
Page 7: Typical Arrangement
3.5 Typical arrangement Note: This arrangement is only an illustrative example. 3.6 Adjusting the bypass Use the following procedure to adjust the bypass: fully open all three valves slowly close valve 1 until the water pressure is increased by From pool To pool approximately 100 to 200 g... - Page 8 3.7 Electrical connection Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection against short-circuits inside the unit. Always provide a good earth connection.
- Page 9 3.8 Initial operation Note: In order to heat the water in the pool (or hot tub), the filter pump must be running to cause the water to circulate through the heat pump. The heat pump will not start up if the water is not circulating. After all connections have been made and checked, carry out the following procedure: 1.
-
Page 10: Accessories Installation
4. Accessories 4.2 Accessories Installation Anti-vibration bases 1. Take out 4 Anti-vibration bases 2. Put them one by one on the bottom of the machine like the picture. Water Inlet & outlet junction 1. Use the pipe tape to connect the water Inlet & outlet junction onto the heat pump 2. -
Page 11: Electrical Wiring
Cable wiring 1. Connect the power supply wire through the white hole like the picture shows. 2. Fix the other side on joints inside the electric box. Water pump wiring 1. Connect the water pump wire through the white marked hole 2. -
Page 12: Display Controller Operation
NOTE: (1)The above electrical wiring diagrams are only for your reference, please subject the heat pump to the posted wiring diagram. (2)The swimming pool heat pump must be earthed well, although the unit heat exchanger is electrically isolated from the rest of the unit .Earthing the unit is still required to protect you against short circuits inside the unit .Bonding is also required. - Page 13 Press to stop the heat pump. 6.3 Choose heating/cooling/Automatic mode: Press until “heat” or “Cool” “Automatic” light is on. 6.4 Setting the real time Timer button: used for clock and timing setting Touch button to enter clock setting, the clock at the bottom flashing to enter the clock Settings, if need set the clock, click on the button to enter the hours setting, combine...
-
Page 14: System Parameter
6.7Running data query and setting Long press button to enter parameters query state, in the query conditions click the button to enter parameter setting state, combined with button to change the parameter value, press button again to determine modification, During the parameter query condition press the button to return the main interface;No operation is retained in the query condition. -
Page 15: Troubleshooting
1（Heating/Cooling）/ 2（Single heating） Electronic expansion valve action cycle 20s～90s Adjustable Degree of super heat setting Adjustable -9℃～9℃ 3℃ expansion valve forced opening gas 80℃～110℃ 100℃ Adjustable exhaust temperature Electronic expansion valve opening 20～450P 400P 3 digits visible setting (under defrosting) Electronic expansion valve minx. - Page 16 Water pump will run automatically for first grade Er PC First grade antifreeze protection in Winter antifreeze Second grade antifreeze protection in Er PC Heat pump will start heating for second grade Winter antifreeze Water flow switch Er PL Check water flow /switch 1.
- Page 17 1. Check the cable connections between the motor and fan, if necessary, they should be LED displays actual water 1. Fan NOT running replaced Short running temperature, no error code 2. Not enough air ventilation 2. Check the location of the displays 3.Not enough refrigerant heat pump, and eliminate...
- Page 18 WIFI Controller Function Specification 1、Android WIFI Module Set Up Steps： Scan the QR code to download or use the below link: https://fir.im/124b to download and operate based on below steps . Step 1： Turn it on，when the drive by wire controller is out of full screen，buzzer rings a sound like “Di”, it shows to be in the AP mode.
- Page 19 Step 3： Open the APP on the phone, type the account and password to login like the pictures below.（If without account, register one according to the link at the bottom） Successfully login in the main interface of server, like the picture shows: Step 4: ...
- Page 20 Select the pool machine WIFI signal and connect, such as: connect the pool machine WIFI signal "Z_088810"; Enter the correct WIFI password, according to the determination of the connection. Step 5: After a successful connection to WIFI signal for the pool machine, the system can be used normally - 20 -...
- Page 21 WIFI Module Set Up Steps： Open “Appstore” ,search “pool system”,the first App appeared is the correct one ,download and operate based on below steps. (There is a difference compare the Android version of the connection from step4.) Step 1： Turn it on，when the drive by wire controller is out of full screen，buzzer rings a sound like “Di”, it shows to be in the AP mode.
- Page 22 Step 3： Open the APP on the phone, type the account and password to login like the pictures below.（If without account, register one according to the link at the bottom） Successfully login in the main interface of server, like the picture shows: ...
- Page 23 Then go back to the phone and click "set"→"Wi-Fi" search WIFI signal, as follows: Select this kind of WIFI connection After the connection is completed, go back to the AP Mode and click "Bring pool system and get online " - 23 -...
- Page 24 Enter the next interface and input the WIFI password for connection Step 5: After a successful connection to WIFI signal for the pool machine, the system can be used normally - 24 -...
