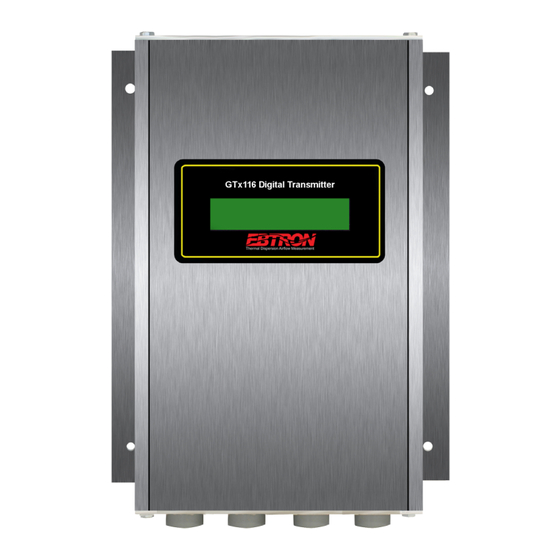

Ebtron Advantage III Gold Series Installation Manual

“plug & play” transmitter with bleed airflow sensors, combination ethernet network output and dual analog output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EBTRON

a measurable difference!
Gold Series
Thermal Dispersion Airflow Measurement Technology
Advantage III

"Plug & Play" Transmitter with Bleed Airflow Sensors,
Combination Ethernet Network Output and Dual Analog Output


LISTED
European Union
Shipments
EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com
Gold Series by Ebtron
Installation Guide
GTM116-B
Document Name: IG_GTM116-B_R1B




GTM116-B
Model
Installation Guide
BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or
test products for compliance with ASHRAE standards. Compliance of listed products to
the requirements of ASHRAE Standard 135 is the responsibility of BACnet International
(BI). BTL is a registered trademark of BI.
Models GTC116 and GTM116
Part Number 930‐0016B


Advertisement

Table of Contents
loading

Related Manuals for Ebtron Advantage III Gold Series

Summary of Contents for Ebtron Advantage III Gold Series

  • Page 1 ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI. Shipments  Models GTC116 and GTM116  Part Number 930‐0016B  EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com  ...

  • Page 2: Table Of Contents

      WIRING DIAGRAM  ..............................  1 6   APPENDIX A ‐ ADVANTAGE 3 ‐ BLEED SENSOR SETUP MENUS  ..................  1 7   APPENDIX B ‐ GTC116 WIRING DIAGRAM ........................  1 7         EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 3 Table 4. GTx116‐B Modbus Register Map ........................  1 0   Table 5. Standard “IP” and “SI” Menu Units Abbreviations ..................  1 1   Table 6. Factory Default Menu Settings ........................  1 2   Table 7. GTM116 Alarm Types and Notifications ......................  1 4   Table 8. GTM116 Converting Analog Output Values to Airflow/Temperature ............  1 5     EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 4: Gtm116 Transmitter Installation

    2) IF UNIT HAS 2 PROBE CONNECTIONS THEN IT IS A TYPE "A" UNIT. IF UNIT HAS 4 PROBE CONNECTIONS THEN IT IS A TYPE "B" UNIT.     Figure 1. GTM116 Mechanical Dimensions   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 5: Gtm116 Transmitter Interior View/Features

      Positive locking cable  Gold plated interconnects to    receptacles with gold  sensor input receptacles  interconnects        Figure 2. GTM116 Transmitter Interior View/Features                   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 6: Gtm116 Transmitter Power And Sensor Connections

    24VAC IN   2 COM   REPLACE WITH 1.5 AMP   FAST ACTING ONLY       Figure 3. Connecting Power to the Transmitter     EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 7: Connecting Bleed Sensors To The Transmitter

    Accepts 1 to 4 bleed airflow sensors  Figure 4. Type B Transmitter Connector Panel Detail SQUEEZE SQUEEZE RECEPTACLE LOCKING TABS SQUEEZE LOCKED INTO UNDERCUT IN RECEPTACLE Squeeze and then pull to remove    DO NOT TWIST!    Figure 5. Connector Detail     EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 8: Gtm116 Analog Output And Network Connections

    UL listed 0.125 Amp Output Board   P.N. 800-1105 (Qty:10) P.N. 800-5026     Figure 6. GTM116 Combination Analog/Ethernet Transmitter Interior Detail            EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 9: Gtm116 - Ethernet Network Wiring Connections

    4.3.4 GTM116 ‐ Setting Gateway IP  To change this value, navigate to the *GATE=10.0.0... NETWORK menu item, and set new segment values as  previously described. (See note above regarding *DHCP=OFF).  4.3.5 GTM116 ‐ Setting BACnet Protocol Mode  The GTM116 is factory set with *BAC MODE=IP for BACnet IP protocol operation. This NETWORK menu item can  be changed to *BAC MODE=ETH for BACnet Ethernet protocol.   Tables 3, 4 and 5 provide details of TCP/IP, BACnet Objects and Modbus Register Maps respectively. Note that  Modbus IP is always enabled regardless of *BAC MODE setting.  NOTE:  For BACnet IP operation, use port 47808. For Modbus TCP operation, use port 502. Modbus IP is always  enabled regardless of the *BAC MODE setting.  4.3.6 GTM116 ‐ Setting Device Instance Number  The GTM116 is factory set with a Device Instance Number of 2 (*DI=2). The Device Instance Number can be set to  any value between 0 and 4194302 as shown in Appendix A. The Device Instance Number can also be changed by  writing to the Device Object's Object Identifier Property over the network.    EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 10: Gtm116 - Resetting Communications Options To Factory Default Values

      NOTE: For GTM116 Modbus operation, use port 502. Modbus IP is always enabled regardless of *BAC MODE setting.   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 11: Gtm116 Transmitter Start-Up, Initialization And Setup Menus

    Celsius iWG  Inch of Water Gauge Pascal     GTM116 Transmitter Calibration  The GTM116 uses high quality industrial grade components and is designed for years of trouble‐free operation.  Periodic recalibration of the transmitter is neither required or recommended. Transmitter field calibration verifiers  are available for purchase from EBTRON for installations requiring periodic validation of instrumentation. Contact  EBTRON for more information.  GTM116 LCD Display Notifications  Following a brief initialization at power up, the LCD display automatically displays airflow and temperature with  units of measurement in all upper case (caps) characters. The display provides additional information on system  status and alarm conditions. Refer to the ALARM FEATURES section of this manual for additional detail on Alarm  and Trouble Error code indications.          EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 12: Factory Default Menu Settings For Gb1 Bleed Sensors

    Set to MANUAL to require manual reset of alarm.                           EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 13: Gtm116 Changing Factory Default Setup Menu Settings

    When the MED security level is selected (LOCK SEC=MED) the user enters and confirms a security code. In the  event that this code is lost/misplaced, EBTRON can provide a key that is unique to the transmitter to unlock it.  Contact EBTRON customer service for this code.  When the HIGH security level is selected (LOCK SEC=HIGH) the user enters and confirms a security code. In the  event that this code is lost/misplaced, the transmitter must be returned to the factory in order to unlock it.    When LOCK SEC=HIGH is selected, the user defined setting can only be changed after entering the user  defined code. STORE THE LOCK CODE IN A SAFE LOCATION! For security reasons, the HIGH level lock code  can only be reset by returning the transmitter to the factory.                    EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 14: Gtm116 - Alarm Features

    (Refer to DIAGNOSTIC menu to obtain a TROUBLE ! viewed using the Diagnostics brief description of the error and any (Trouble Alarm) submenu. other alarms).   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 15: Gtm116 - Analog Output Type Selection And Setup

    MS1 is AO1 minimum scale analog output value from ANALOG OUT MENU. MS2 is AO2 minimum scale analog output value from ANALOG OUT MENU.   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 16: Viewing Sensor Data

    5.8.2 Viewing Sensor Data  via BACnet , Modbus networks or via EB‐Link Reader  Airflow and temperature of individual sensors can be read across BACnet or Modbus networks, or downloaded  directly to an EB‐Link Reader if the infra‐red EB‐Link option has been installed. Refer to the following Sensor  Addressing paragraph for the suggested probe installation configuration. Tables 3 and 4 provide BACnet objects  and register addressing information for individual sensor data.    5.8.3 Sensor Addressing  The bleed sensors are addressed in order from left to right from C1 to C4 based on the connector on the  transmitter. The left most connector is C1.    6 SETUP MENUS  Appendix A details the various setup menus and submenus.    7 WIRING DIAGRAM  Appendix B is the wiring diagram for the GTM116 transmitter.    EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...

  • Page 17: Appendix A - Advantage 3 - Bleed Sensor Setup Menus

    Set whether or not TROUBLE will display on LCD during a trouble condition. LCD TRBL=ON TO PART 5 'A' TO PART 2   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 18 Sets AO2 alarm/trouble output state when no fault condition is present, expressed as HI (full scale analog output) or LO (minimum scale analog output). NO FAULT = LO TO PART 3   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 19 Set network device instance number. EB-LINK *EB-LK INTG=300 SET EB-LK INTG? EB-LK INTG=300 EB-Link integration samples TO PART 4   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 20 BACnet object or Modbus register. Alarm will only clear when alarm is not RESET=MANUAL active. TO PART 5 'B'   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 21 ADJUSTMENT ON AND SET TO using the keys) COMPLETE DESIRED SPEED! TO PART TO PART 6 'A' 6 'B'   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 22 For sensors =1 to 9, A to G (number of sensors dependant on sensor type). PROBE TYPE TYPE= B Type 'B' for Bleed sensors.   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 23 24VAC SOURCE, WIRE 24 VAC POWER IN-PHASE TO THE SAME TERMINALS ON ALL TRANSMITTERS (e.g.: L1 to L1, L2 to L2).   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
  • Page 24 EBTRON GTM116-B T ERIES RANSMITTER   a measurable difference! EBTRON a measurable difference!   EBTRON • 1663 Hwy. 701 S., Loris SC 29569 • Toll Free: 800.2EBTRON (232.8766) • Fax: 843.756.1838 • Internet: EBTRON.com...
