GETTING STARTED GUIDE
RTI-12308
Rear Transition Interface Generic DIO/AO/AI with MDR Headers
This document describes the features of the RTI-12308. You can use the RTI-12308 to connect
to any SLSC module supporting fully compatible rear I/O. The two 26-pin MDR connectors
provide access to up to 4 banks of signals for DIO, AI, or AO.
Note
Before you begin, read the RTI-12308 Safety, Environmental, and Regulatory
Information document on
installation procedures in your chassis documentation.
Installing the RTI-12308

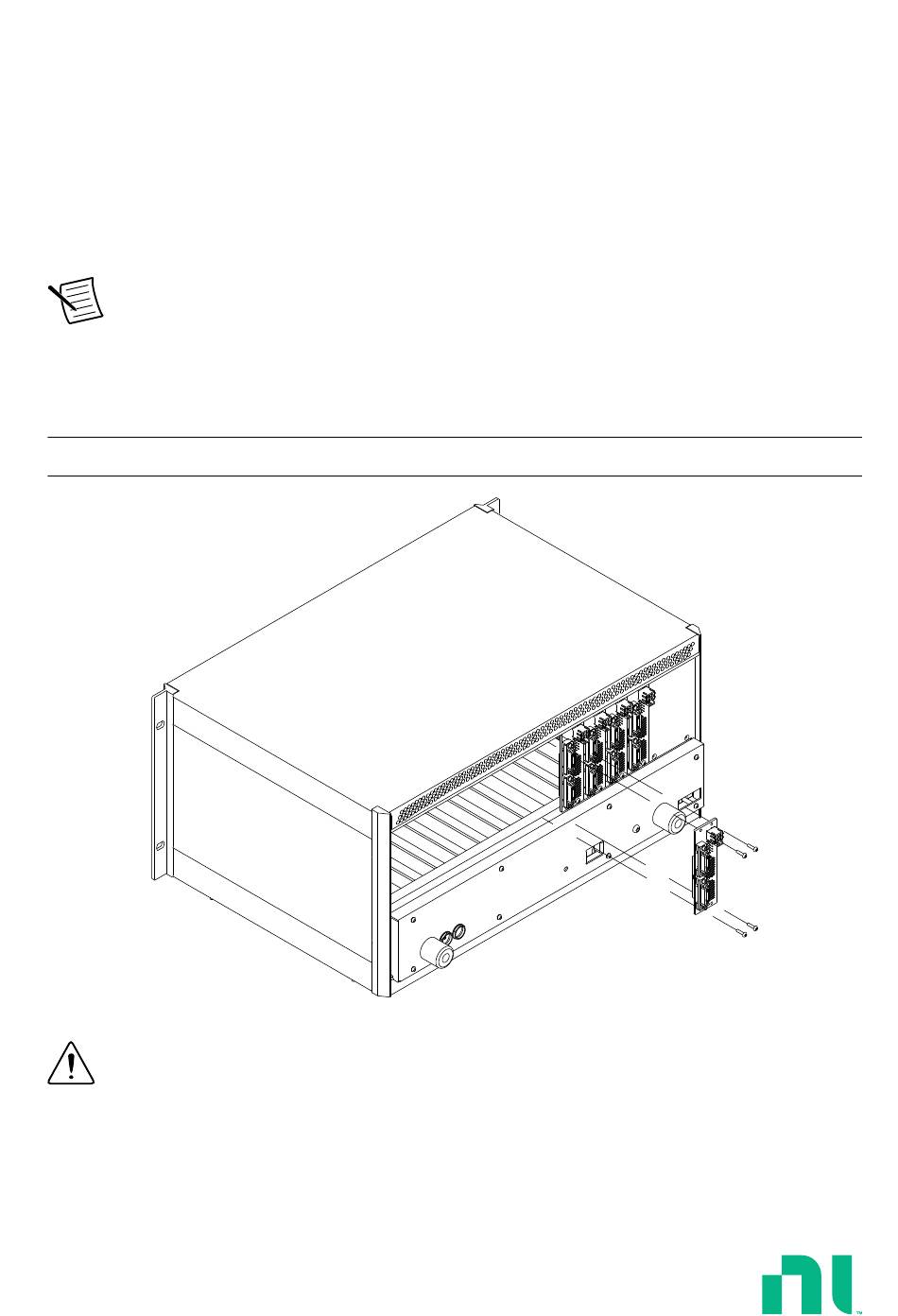

Figure 1. Installing the RTI-12308 into the SLSC chassis
Caution
system is energized.
Complete the following steps to install the RTI-12308 in the chassis.
ni.com/manuals
Do not touch the contacts or remove the I/O boards or cables while the
and complete the software and hardware
Advertisement
Table of Contents
Related Manuals for NI RTI-12308
Summary of Contents for NI RTI-12308
- Page 1 RTI-12308 Rear Transition Interface Generic DIO/AO/AI with MDR Headers This document describes the features of the RTI-12308. You can use the RTI-12308 to connect to any SLSC module supporting fully compatible rear I/O. The two 26-pin MDR connectors provide access to up to 4 banks of signals for DIO, AI, or AO.
- Page 2 The POWER LED should be off. If it is not off, do not proceed until it is off. Loosen the screws of the upper rear panel of the chassis. Position the RTI-12308 at the desired slot and insert the securing screws, but do not fully tighten them.
- Page 3 RTI-12308 Pinout Figure 2. RTI-12308 Front View JR2, (Banks 1-2) JR3, (Banks 3-4) Figure 3. JH1 Pinout RTI-12308 Getting Started Guide | © National Instruments Corporation | 3...
- Page 4 Bank 4_4 Bank 2_6 Bank 4_6 Bank 2_5 Bank 4_5 Bank 2_7 Bank 4_7 Table 2. JR2 and JR3 Connector Signal Descriptions Signal Description Bank x_y Line y in Bank x Ground connection 4 | ni.com | RTI-12308 Getting Started Guide...
- Page 5 Worldwide Support and Services The NI website is your complete resource for technical support. At ni.com/support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
- Page 6 . You can find patents.txt ni.com/patents information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at for the NI global trade compliance policy and how ni.com/legal/export-compliance...
