OPERATING INSTRUCTIONS

CompactRIO cRIO-9052
CompactRIO StarFabric Interface
3
1 LEDs
2 Power Connector

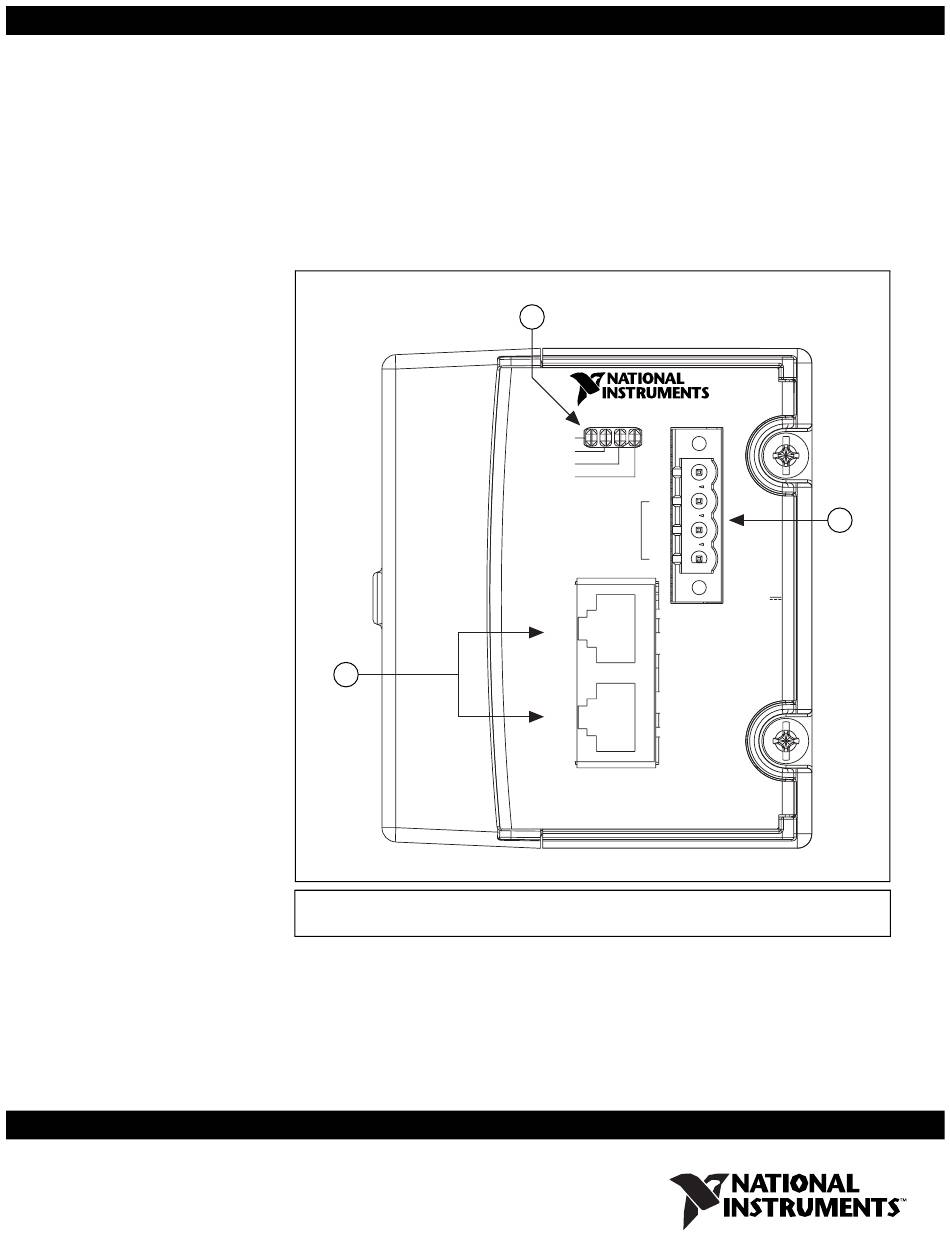

Figure 1. CompactRIO cRIO-9052
1
POWER
BACKUP
STATUS
V1
FPGA
C
V2
C
Rx
Tx
NI cRIO-9052
CompactRIO StarFabric Interface
3 RJ-45 Connectors
2
INPUT
9–35 V
17 W MAX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CompactRIO cRIO-9052 and is the answer not in the manual?

Questions and answers

Summary of Contents for NI CompactRIO cRIO-9052

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS CompactRIO cRIO-9052 ™ CompactRIO StarFabric Interface POWER BACKUP STATUS FPGA INPUT 9–35 V 17 W MAX NI cRIO-9052 CompactRIO StarFabric Interface 1 LEDs 3 RJ-45 Connectors 2 Power Connector Figure 1. CompactRIO cRIO-9052...
  • Page 2: Safety Guidelines For Hazardous Locations

    Special Conditions for Safe Use in Europe This equipment has been evaluated as EEx nC IIC T4 equipment under DEMKO Certificate No. 03 ATEX 0324020X. Each controller is marked II 3G and is suitable for use in Zone 2 hazardous locations. cRIO-9052 Operating Instructions ni.com...
  • Page 3: About The Crio-9052

    About the cRIO-9052 The cRIO-9052 works with a host system through the NI 8310, which is a StarFabric interface device, allowing you to connect to and control any CompactRIO reconfigurable chassis from a Windows host or a host that is running the LabVIEW Real-Time Module.
  • Page 4: Required Components

    763640-10 CBL10S-NI 14 m 14 m StarFabric Cable Set 779544-14 763640-14 CBL14S-NI This is the part number you use to order the cable kit from NI. This is the part number that appears on the cable. cRIO-9052 Operating Instructions ni.com...
  • Page 5: Installing The Crio-9052 On The Chassis

    Installing the cRIO-9052 on the Chassis Figure 2 shows the dimensions of the cRIO-9052. 90.2 mm (3.55 in.) 44.2 mm (1.74 in.) 77.3 mm (3.04 in.) 88.1 mm (3.47 in.) 44.2 mm (1.74 in.) 1 M4 Thread Figure 2. cRIO-9052 Front and Bottom Views with Dimensions ©...
  • Page 6 Installation Instructions for more information about installing the cRIO-9052 onto the chassis. Using a number 2 Phillips screwdriver, tighten the two captive screws on the front of the controller to 1.3 N · m (11.5 lb · in.) of torque. cRIO-9052 Operating Instructions ni.com...
  • Page 7: Wiring Power To The Crio-9052

    Wiring Power to the cRIO-9052 Caution You must install the cRIO-9052 on a CompactRIO chassis and tighten the captive screws before you apply power to the cRIO-9052. Installing the cRIO-9052 while power is applied to it can cause damage to the chassis. The cRIO-9052 requires an external power supply that meets the specifications in the Power Requirements...
  • Page 8: Wiring The Crio-9052 For Connectivity To The Host

    (Tx) port and which cable is connected to the receive (Rx) port. You will need this information when you connect the other end of each of the cables to the appropriate ports on the NI 8310 that is installed in the host system. Refer to the...
  • Page 9: Driver Software

    Installing the NI-CardBus-8310 driver software for use with the NI PXI-8310 and/or Note the NI PCI-8310 may cause improper operation. If you are using the NI 8310 with a host that is running the LabVIEW Real-Time Module, you will not be prompted to install any driver software. NI CardBus-8310 If you are using the NI CardBus-8310, you must install the NI-CardBus-8310 driver software before you install the NI CardBus-8310.
  • Page 10: Install The Ni 8310

    NI 8310. NI PCI-8310 The NI PCI-8310 is a 64-bit PCI device. 64-bit PCI devices have a different connector than 32-bit PCI devices, but you can use a 64-bit PCI device in a PCI slot that is designed for a 32-bit PCI device. Refer to Figure 5 for more information.
  • Page 11 NI CardBus-8310 Refer to the NI CardBus-8310-to-PXI Expansion User Manual for instructions for installing the NI CardBus-8310. Complete the following steps to connect the NI CardBus-8310 to the cRIO-9052: Make sure the cRIO-9052 is powered on and the CAT5 Ethernet cables are connected to the cRIO-9052.
  • Page 12: Configure The Compactrio Reconfigurable Chassis

    NI PXI-8310 Complete the following steps to install the NI PXI-8310: Power off and unplug the PXI or CompactPCI chassis. Choose an unused PXI or CompactPCI peripheral slot. Remove the filler panel for the peripheral slot you have chosen. Touch a metal part on the chassis to discharge any static electricity that might be on your clothes or body.
  • Page 13: Understanding Led Indications

    You can use the FPGA LED to help debug the application or easily determine the status of the application. Use the LabVIEW FPGA Module and NI-RIO 2.0 or later to define the FPGA LED to meet the needs of the application. Refer to LabVIEW Help for information about programming this LED.
  • Page 14: Specifications

    6 V. This rate varies depending on your host system specifications, such as processor, RAM, and so on. This is the maximum amount of power that the entire system should consume at the power connector. cRIO-9052 Operating Instructions ni.com...
  • Page 15: Physical Characteristics

    CAN/CSA-C22.2 No. 61010-1 Note For UL and other safety certifications, refer to the product label, or visit , search by model number or product line, and click the ni.com/certification appropriate link in the Certification column. © National Instruments Corporation cRIO-9052 Operating Instructions...
  • Page 16: Shock And Vibration

    Random (IEC 60068-2-64)....5 g , 10 to 500 Hz Sinusoidal (IEC 60068-2-6) ....5 g, 10 to 500 Hz Operating shock (IEC 60068-2-27) ........30 g, 11 ms half sine 50 g, 3 ms half sine, 18 shocks at 6 orientations cRIO-9052 Operating Instructions ni.com...
  • Page 17: Electromagnetic Compatibility

    Refer to the Declaration of Conformity (DoC) for this product for any additional Note regulatory compliance information. To obtain the DoC for this product, visit , search by model number or product line, and click the ni.com/certification appropriate link in the Certification column. © National Instruments Corporation cRIO-9052 Operating Instructions...
  • Page 18: Where To Go For Support

    NI Application Engineers. National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs.
  • Page 19 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or...
