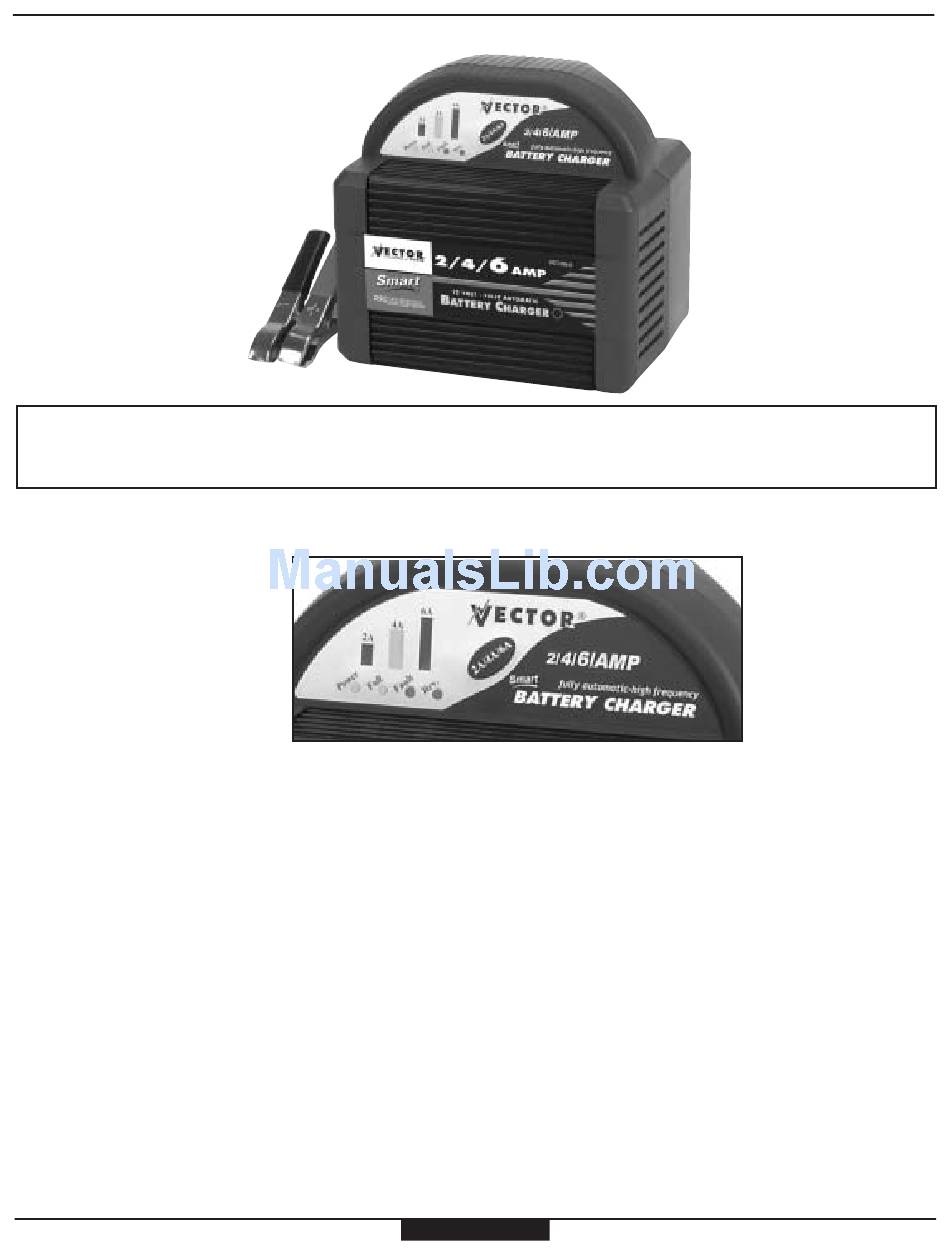

FIGURE 3 FRONT VIEW
WARNINGS: THERE ARE NO USER-SERVICEABLE PARTS IN THIS CHARGER. DO NOT OPEN THE UNIT! IT MUST BE RETURNED TO
VECTOR FOR PROFESSIONAL TESTING AND REPAIR. OPENING THE UNIT WILL VOID THE MANUFACTURER'S
WARRANTY.
Contact the Vector Technical Support Department at (954) 584-4446 or toll free: (866) 584-5504 for further information.
FIGURE 3 FRONT PANEL

CONTROLS AND INDICATORS

FUNCTIONS
2/4/6 AMP - allows the user to select the charger rate based on battery size. This selection and actual battery charge
rate are monitored by the microprocessor and will stop charging if the rate is too fast or too slow for
battery size or condition.
INDICATORS
FAULT - Lights when the battery is not connected properly or not charable.
Rev. Polarity
- Lights when clamps are incorrectly connected to battery terminals.
Charging Complete - Indicates Battery is charged.
