Molpir COMPACT 1.6 User Manual
Hide thumbs
Also See for COMPACT 1.6:
- Troubleshooting manual (64 pages) ,
- Troubleshooting manual (44 pages)
Subscribe to Our Youtube Channel
Related Manuals for Molpir COMPACT 1.6
Summary of Contents for Molpir COMPACT 1.6

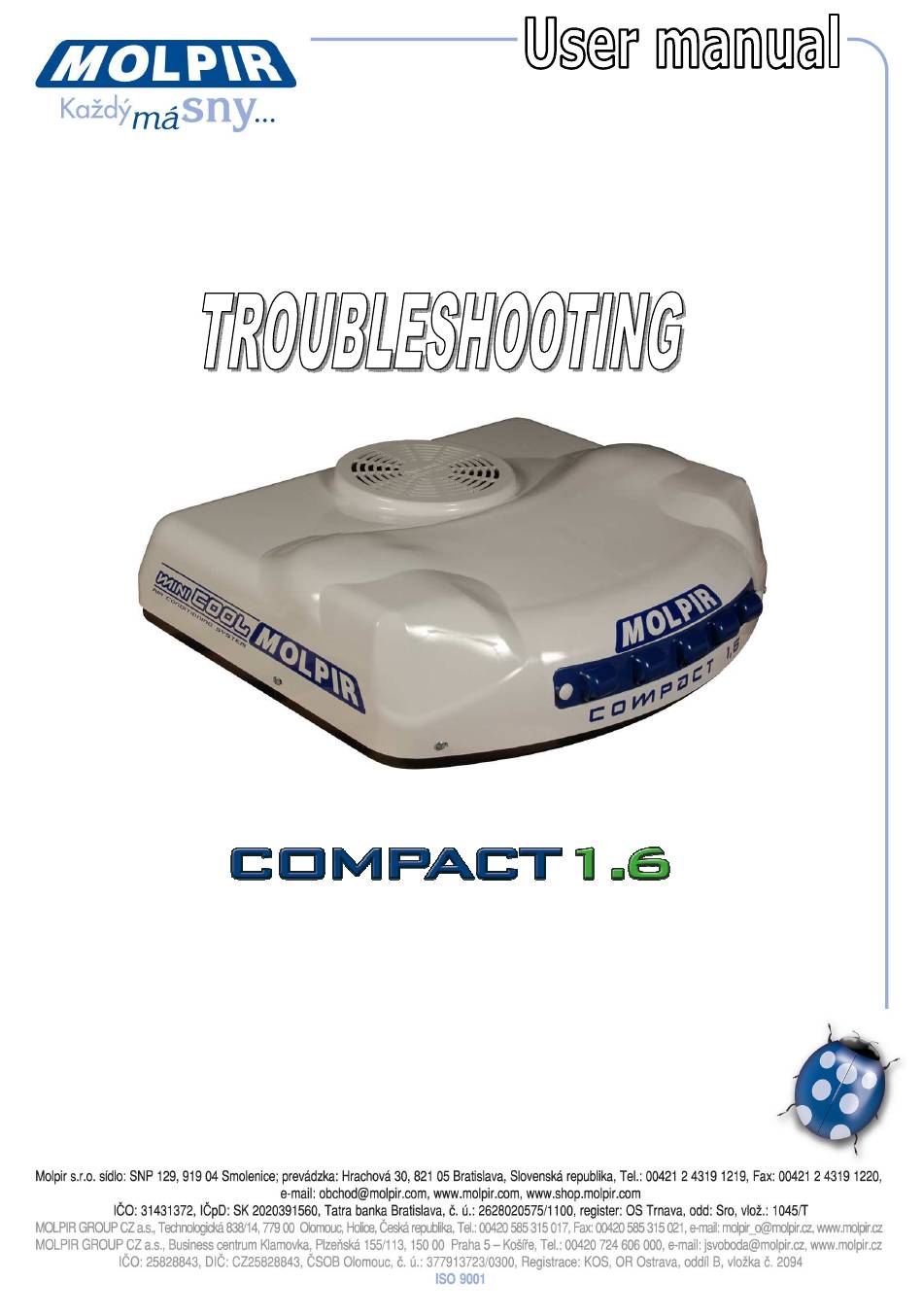

- Page 1 Ord. code: 0911330000 Date: 02.11.2015 Page: 1/8 NU_0911330000_MOLPIR_002_02112015_DIAGNOSTIKA_EN...
- Page 2 Unit pre-loaded of gas R134a with high precision machine. A- by manipulating the load of the unit leaves it out of warranty! B- The charge fittings of the (R) unit are autosealed.lf these are manipulated, THE WARRANTY is automatically lost! C- The connection to the battery or any authorised point set in the mounting instructions is absolutely compulsory ! In case of not doing so, the battery control is lost and the electronics will...
- Page 3 SYMPTOM CAUSE Power fuse blown or disconnected (in 30A power supply cable) Electronic control defective If the unit does not come on or the Power cable disconnected, with poor display and the unit go off during contact or cut Electronic control power fuse (15A) disconnected or blown Power cable polarity inverted When the unit starts up or runs,...
- Page 4 Control panel and electronic control connection cable poorly connected or The unit gives out a beeping sound inverted in electronic control or control panel When the unit starts up or runs, the display shows (compressor protection). The unit goes off Unit slant 45°...
- Page 5 SOLUTION Connect or replace the power cable fuse Replace the electronic control Check and correct any possible poor contacts, splits or disconnections of the power cable Connect or replace the electronic control power fuse (first take down the interior air distribution panel) Check and correct the position of the power cables (az with 30A fuse to + and M to -) (if the error persists, contact the Authorised Technical Service)
- Page 6 Take down the interior air distribution panel and correctly connect the electronic control and control panel connection cable Position the unit with a slant of less than 45° (the unit should not work with a slant of 45° or over as it may result in damage in the compressor). The electronic control detects the slant, meating it must also be less than 45°...
- Page 7 Conditions: - Cabin to be placed out of direct sun - Battery full charged. 24 Vdc. Minimum at Compact 1.6 current inlet - Door & windows closed along the whole test - Stop the vehicle engine. Let the system work 15 minutes at maximum power&blower - Take the data after 15 minutes running.
- Page 8 Centrifugal Return air sensor blower Fuse Flat cable 7.5A Anti-freeze sensor Electronic Az – blue control N – black R – V – green B – white A – yellow Na – orange brown Condenser fan Compressor e-module Fuse 30A Battery Wiring communication Compressor...
