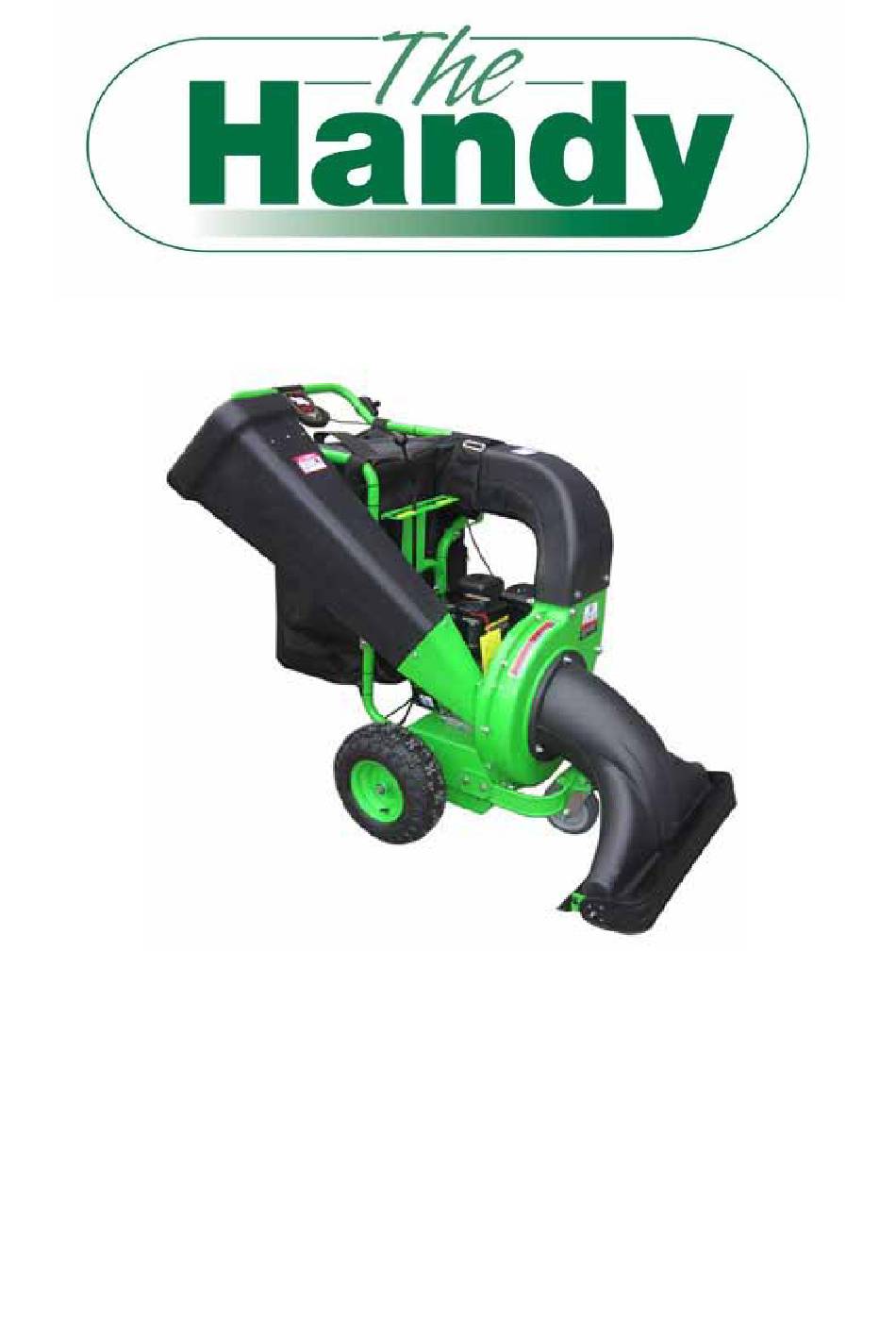

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL WHEELED VACUUM - THPWBBV Sales & Helpline 01793 333220 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. Page 1 2010 v1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS FUEL FEATURES ASSEMBLY OPERATION MAINTENANCE TROUBLE SHOOTING PARTS DIAGRAM AND LIST 11-12 EC DECLARATION OF CONFORMITY Page 2... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the vacuum shredder. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use sturdy footwear and wear eye and ear protection. Wear heavy duty gloves, preferably made of leather. -
Page 4: Specifications
SPECIFICATIONS Model THPWBBV Engine Briggs & Stratton I/C 65 Displacement 206 cm³ Chipper Capacity 7.5cm/3in Collection Bag Capacity 100 litres Suction Width 60cm/24in Blades 2 chipper; 2 hammer Weight 83kg FUEL The vacuum shredder is supplied without petrol or oil. -
Page 5: Features
FEATURES Features of the Vacuum Shredder: Chipper Chute: - Allows twigs and small branches up to 3” in diameter to be fed into the impeller for chipping. Tamper Plug:- This plug is inserted into the chipper chute to push twigs and small brances towards the impeller blades. -
Page 6: Assembly
ASSEMBLY The vacuum shredder is supplied with the following loose parts in the box. Please check carefully before you commence construction. Nozzle; Discharge Chute; Collection Bag; Side Chipping Chute; Safety Goggles; Ear Protectors; Wrench Plug; Nuts and Bolts. All references to the right or left side are as viewed from the operator’s position, unless otherwise stated. - Page 7 ASSEMBLY, cont’d Attaching the Chipping Chute: • Remove the three hex nuts and washers. • Place the chipping chute over the weld studs, keeping the slotted side towards the bottom. • Loosely secure with the three hex nuts and washers. Do not fully tighten at this point.
-
Page 8: Operation
OPERATION Starting the Vacuum Shredder: • Fill with fuel and oil as directed above. • Turn the ignition switch on the handle to “I” - On position. Fully close the choke. • Pull starter cord until the engine fires/ignites, the gradually open the choke fully. •... -
Page 9: Maintenance
MAINTENANCE After each use, clean off any loose or dry debris which may have accumulated. Wipe the machine with an oiled rag to prvent rust and prolong life. Empty the collection bag completely and store in a clean dry area. Do not store next to corrosive material such as fertiliser. -
Page 10: Trouble Shooting
TROUBLE SHOOTING Problem Cause Remedy • • Engine fails to Spark wire disconnected Connect wire • • start Choke not in CHOKE position Move to CHOKE position • • Fuel tank empty or stale fuel Fill tank with fresh fuel •... -
Page 11: Parts Diagram And List
PARTS DIAGRAM Page 11... - Page 12 PARTS LIST Part No Description Qty No Part No Description TH141-1 Lever TH141-40 Gearcase Bearing TH141-2 Nozzle TH141-41 Cir Clip TH141-3 Hex Bolt M12x130 TH141-42 Rear Wheel Axis TH141-4 Rear Wheel TH141-43 Large Gear TH141-5 Cotter Pin TH141-44 Spring Roll Pin TH141-6 Axle Long Brush TH141-45...
-
Page 13: Ec Declaration Of Conformity
- Noise Emissions Directive 2000/14/EC Handy Distribution Ltd hereby declares that the product Machine Type: Walk Behind Shredder Chipper Machine Model: THPWBBV Mass in kg: 83kg Engine Displacement: 206 cm³ Confirms to the main safety requirements of the EC Directives listed above. - Page 14 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Page 14...
