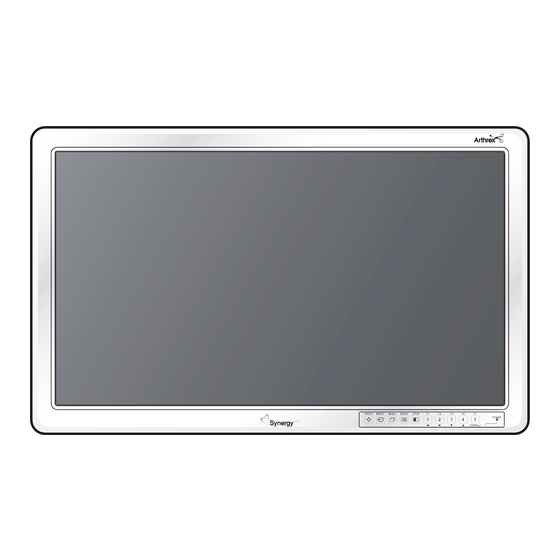

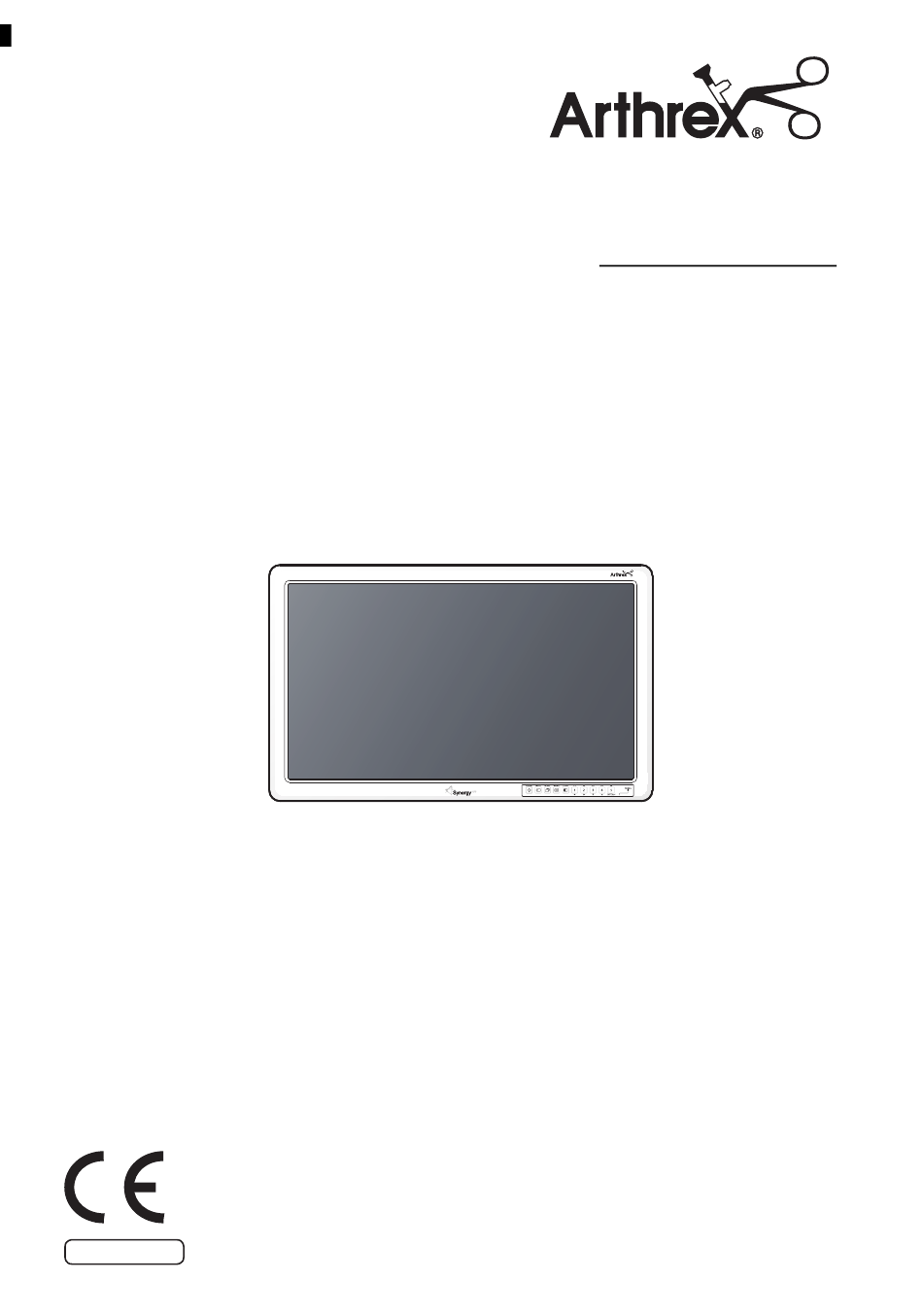

- Page 1 Operating Instructions LCD Monitor EJ-MLA26UA Model No. For medical use Before connecting, operating or adjusting this product, please read the Operating Instructions completely. Store this Operating Instructions in a safe place. English...
-
Page 2: Features
Features Functions (1) High-quality and high-resolution Full HD ● The IPS panel enables high-resolution, high-quality medical images to be displayed. This function is the essential performance of this product. ● Front protection panel fitted ● LED Backlight (2) Supporting multiple I/O ●... -
Page 3: Table Of Contents
Contents Introduction Features......................... 2 Important Safety Instructions..................4 Before Use........................8 Accessories ........................10 Location of Controls ....................10 AC adaptor ..........................10 Front View ..........................11 Rear View ..........................12 Basic Operation Connect the AC Cord, Turn ON the Power Supply............. 14 Basic Operation...................... -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING: To prevent damage which may result in fire or shock hazard, do not expose this device to rain or moisture. Do not place containers with liquids above the set (including on shelves above, etc.). WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. - Page 5 Do not use the monitor in the following locations • In environments with a high oxygen content in the atmosphere • In proximity to anesthetic gas (i.e. in a flammable atmosphere) • In an atmosphere containing oxidized materials Points of caution and points to note for This monitor is designed to display images from a camera etc.
- Page 6 Important Safety Instructions — Continued – For U.S.A. – FCC STATEMENT: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 8: Before Use
Before Use ■ When setting up the device ● The terminal parts of the SDI terminal and DVI-D terminal are vulnerable to Please be careful about the following when setting up the static electricity, so be sure to work device. with care at installation. - Page 9 ● Extended operation may cause this ● A liquid crystal panel incorporating instrument to become hot. Therefore, LED elements is used as a light source do not place heat-sensitive material for the device. close to this instrument. The luminescence of the LED elements gradually declines with use over time.
-
Page 10: Accessories
Accessories Check that you have the accessories and items shown. ( ) is the item count. Detachable Parts ● AC cord (1) ● AC adaptor (1) 2.5 m (8.2 ft) / Unshielded Model number: AHM100PS24 ● Operating Instructions (1) ● Safety Instruction Book (1) ●... -
Page 11: Front View
Front View Bottom View g F2/r button (page 20) a PRESET[ ] button (page 21) Executes function assigned to FUNCTION2. /Select items Displays preset menu. in the menu screen. b INPUT[ ] button (page 15) h F3/w button (page 20) Displays the input select menu. -
Page 12: Rear View
Location of Controls — Continued Rear View Rating label b c d e f a DC IN terminal i HD15 input terminal (mini D-sub15 pin) Connects the DC cord. Connects devices having a synchronous signal with RGB output like PCs. b VIDEO input terminal (BNC type) j S VIDEO input terminal (4pin mini DIN) Connects devices having VIDEO output terminals. - Page 13 m Loop-through output Connect only devices conforming to the Outputs input signal as is from b to f, j. Confirms input Electrical Appliance and Material Safety signal, connects to input terminal of other video devices. Law or IEC specification to the device Furthermore, for a b VIDEO, c Y/G, d P /B, e P /R input...
-
Page 14: Connect The Ac Cord, Turn On The Power Supply
Connect the AC Cord, Turn ON the Power Supply Connect the AC cord to the AC IN terminal Connect the AC cord plug to the power on the AC adaptor. outlet. Plug cord in firmly all the way. Connect the DC OUT terminal of the AC AC cord (supplied) adaptor to the DC IN terminal on the monitor. -
Page 15: Basic Operation
Basic Operation Selecting Display Language Switching Input Signal Select the language of menus and messages displayed on the Select the signal input to the monitor, display it on the screen. screen. ■ Switching the input signal when Press [MENU]. using 1 screen The main menu is displayed. -
Page 16: Confirming The Input Signal
Basic Operation — Continued Confirming the Input Signal Switching Operation Target Screen The signal type, input terminal name and resolution can be Select operation target screen in subscreen display. displayed and confirmed. Repeatedly press [W.SEL], and then select the Display occurs when the following operation is performed. operation target screen ●... -
Page 17: Display With 2 Screens, 3 Screens
Display with 2 Screens, 3 Screens Displaying the screen with 2 screens or 3 screens, and changing Operation with the Main Menu the subscreen display position and display size are possible. 2 screens and 3 screens can be displayed with P in P or P out P Displaying with P in P or P out P mode, and setting main/sub mode. - Page 18 Display with 2 Screens, 3 Screens — Continued ● When “3POP” is selected in procedure 3 Press [w/q] to select “Window Mode”, (A: Main screen, B: Subscreen 1, C: Subscreen 2) and then press [e/r] to select mode Mode1: Subscreen 1, 2 display (display position, size).
-
Page 19: Rotating/Flipping The Screen
Rotating/Flipping the Screen Rotating/Flipping the Screen The input screen can be rotated or flipped horizontally and displayed. Press [MENU]. The main menu is displayed. Press [w/q] to select “Window Config”, and then press [e/r]. Input Config VIDEO Multi Window Video Config Window Mode –... -
Page 20: Registering Frequently Used Functions
Registering Frequently Used Functions Registering frequently used functions with [F1], [F2], [F3], [F4], Press [w/q] to select “Function Display”, [F5] buttons enables a direct change of settings without and then press [e/r] to set the display displaying the main menu. method of the function menu. -
Page 21: Preset And User Setting
PRESET and USER Setting It is possible to switch to PRESET, FACTORY, or the USER ● When selecting the USER setting that has displayed to setting in advance. the right of the USER number, pressing [ENTER] displays PRESET: Basic settings are registered in advance at the the confirmation screen. -
Page 22: About The Main Menu
About the Main Menu In the main menu, settings can be made for the input, image, Press [e/r] to set. system, function, screen, remote control and control. ● There may be more menus depending on the item. If “Next Menu” is displayed for items, press [e/r] and Operation via the Main Menu a new menu is displayed. -
Page 23: Input Configuration
Input Configuration Settings for each input terminal Sync. Select (RGB/HD15) ● Input configuration menu Sets synchronous signal input method at RGB/HD15 signal input. Input Config ❑ Selectable Value VIDEO VIDEO Auto Video Config S VIDEO Auto Auto: HD/VD input (HD15), SYNC input (RGB), System Config RGB-VIDEO RGB/YP... - Page 24 Input Configuration — Continued ■ H Position To move screen left and right. ❑ Adjustment Range 0 (left) to 100 (right) ■ V Position To move screen up and down. ❑ Adjustment Range 0 (down) to 100 (up) ■ Dot Clock When a striped pattern is displayed, adjust so that noise will decrease when the synchronous striped pattern (noise) is produced.
-
Page 25: Video Configuration
Video Configuration Adjustments/settings for image display Backlight ● Video configuration menu (1/3) Adjusts brightness of backlight. In case of multiple windows, select the main screen. The setting cannot be changed when a Input Config screen other than the main screen is selected. Reset Video Config Color... - Page 26 Video Configuration — Continued G Bias 3D I/P Adjusts the brightness of green in dark portions. Setting 3D I/P conversion function. When screen motion is not smooth, and when delay time is ❑ Adjustment Range noticeable, try “Off”. 0 to 100 ❑...
-
Page 27: System Configuration
System Configuration Settings for devices Power On Setup ● System configuration menu Settings for switching on can be set in advance. ❑ Selectable Value Input Config Last: Last saved state starts. Menu Position Video Config Data Save USER1 PRESET1-9: State saved in PRESET is called. System Config 3Sec Status Display... -
Page 28: Function Setting
Function Setting Setting for [F] buttons F1, F2, F3, F4, F5 ● Function setting menu Sets functions assigned to function buttons. See “Registering Frequently Used Functions” on page 20 for Input Config details. Video Config Scan Size System Config Gamma Select Function Display Input RGB/YP Function... -
Page 29: Remote Setting
Remote Setting Settings for remote functions Input HD15: Switch main screen input signals to ● Remote setting menu HD15. Input DVI-D 1: Switch main screen input signals to DVI-D 1. Input Config RS-232C Video Config Input DVI-D 2: Switch main screen input signals to GPI Control DVI-D 2. -
Page 30: Control Setting
Control Setting Settings for lock functions ● Control setting menu Input Config Lock Video Config System Config Function Window Config Remote Control Return Change Lock Changing settings via the main menu is prevented. ❑ Selectable Value On: Changes of settings not possible. Off: Changes of settings possible. -
Page 31: Displayable Input Signals
Displayable Input Signals RGB/ RGB/YP , HD15 Horizontal Vertical VIDEO, DVI-D 1, Signal name Frequency Frequency (RGB- S VIDEO DVI-D 2 (RGB-PC (kHz) (Hz) VIDEO mode) mode) mode) ✔ NTSC 15.73 59.94 ✔ 15.63 50.00 ✔ ✔ ✔ ✔ ✔ 480/60i 15.73 59.94... -
Page 32: Troubleshooting
Troubleshooting Problem Check the following Page ● Liquid crystal panels are manufactured using technology with very There is a black dot or dead pixel dot on the screen high precision, but there may be a missing pixel or bright spot on —... -
Page 33: Specifications
Specifications ■ LCD monitor Power Source DC 24 V 69 W LCD Panel 26 inch (16:9 aspect ratio) Number of pixels 2 073 600 pixels (1920 × 1080) Viewing angle Horizontal: 178 ° Vertical: 178 ° 1.0 Vp-p (75 ) BNC type Video input terminal 1.0 Vp-p (75 ) BNC type Video output terminal... -
Page 34: Pin Specifications
Pin Specifications ■ Pin assignment and signal name of RS-232C terminal Pin No. Signal name Content NC (no connection) Transmission data Reception data Short circuit at pin 6 on the monitor Short circuit at pin 4 on the monitor Short circuit at pin 8 on the monitor Short circuit at pin 7 on the monitor NC (no connection) Please connect PC with straight RS-232C cable (male-female). -
Page 35: Dimensional Figure
■ Pin assignment and signal name of Monitor DC OUT terminal Pin No. Signal name NC (no connection) NC (no connection) DC 5 V HIROSE P/N : HR10A-7R-4S(74) Recommended Plug is as below. HIROSE P/N : HR10A-7P-4P(74) ■ Pin assignment and signal name of AC adaptor DC OUT terminal Pin No. -
Page 36: Emc Relevant Information
EMC Relevant Information 1. The EJ-MLA26 Series needs special precautions regarding EMC and needs to be installed and put into service according to the following EMC information. 2. The portable and mobile RF communications equipment can affect the EJ-MLA26 Series. 3. - Page 37 Guidance and manufacturer’s declaration – electromagnetic immunity The EJ-MLA26 Series is intended for use in the electromagnetic environment specified below. The customer or the user of the EJ-MLA26 Series should assure that it is used in such an environment. IEC 60601 Electromagnetic environment - Immunity test Compliance level...
- Page 38 EMC Relevant Information — Continued Guidance and manufacturer’s declaration - electromagnetic immunity The EJ-MLA26 Series is intended for use in the electromagnetic environment specified below. The customer or the user of the EJ-MLA26 Series should assure that it is used in such an environment. IEC 60601 Compliance Immunity test...
- Page 39 Recommended separation distances between portable and mobile RF communications equipment and the EJ-MLA26 Series The EJ-MLA26 Series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EJ-MLA26 Series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EJ-MLA26 Series as recommended below, according to the maximum output power of the communications equipment.
-
Page 40: Product Warranties; Limitation Of Liability
Claim of defect in material or workmanship in any Product shall be considered when it is submitted to Arthrex in writing within thirty (30) days after discovery. No claim shall be allowed on Products that have been altered, neglected, damaged or stored improperly. Arthrex shall promptly... - Page 41 MEMO...
- Page 42 MEMO...
- Page 43 Meaning of symbols on the unit Symbol Description Symbol Description Symbol Description Turn the monitor off. Turn the monitor on. Serial number Do not touch Potential equalization This device complies with Do not touch the terminal terminal the Medical Device parts.
- Page 44 Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
