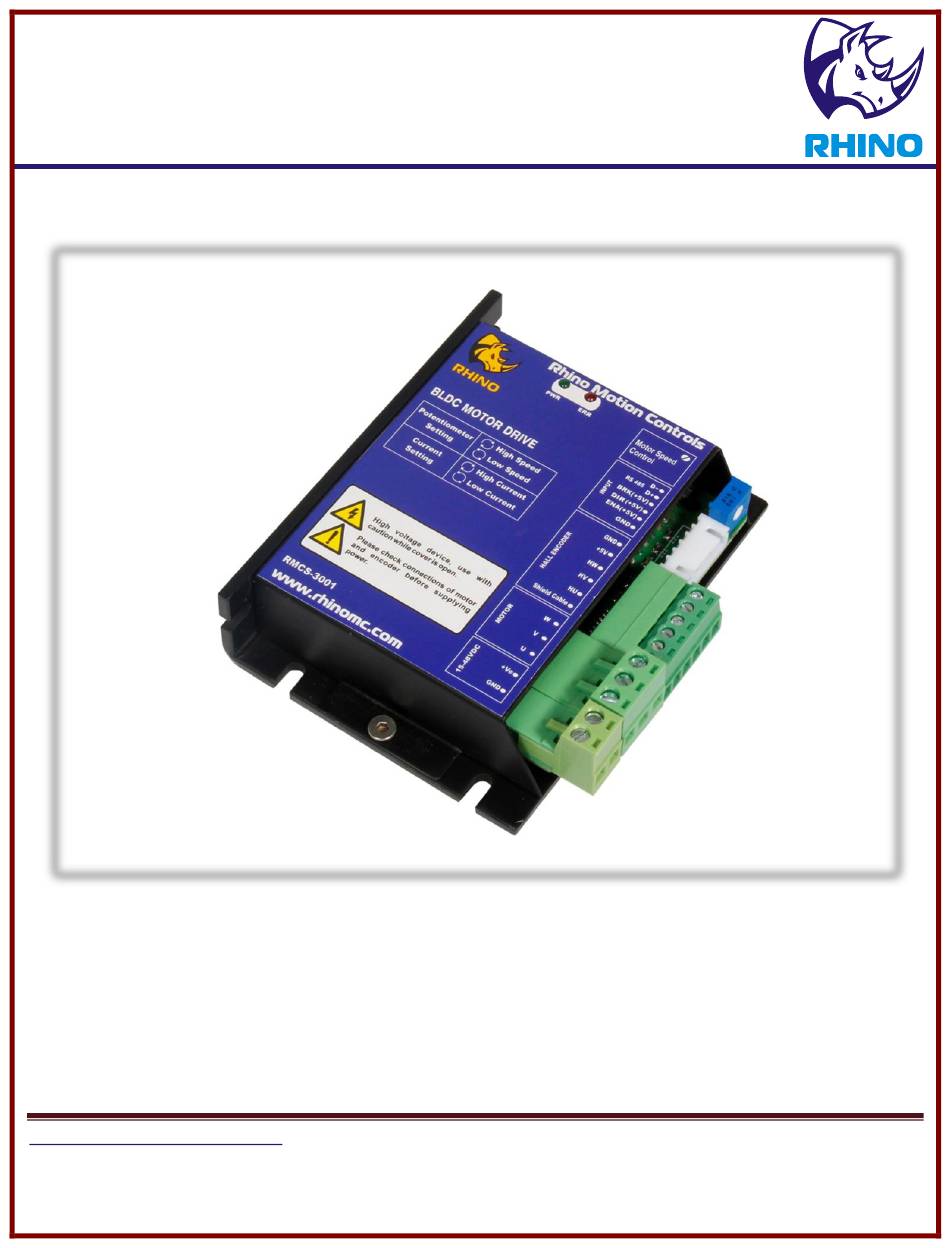

- Page 1 RHINO MOTION CONTROLS RMCS-3001 Brushless DC motor Driver (Max. 48VDC and 5A per phase) Installation Manual and Datasheet RMCS-3001 http://www.rhinomc.com Page 1 BLDC Motor Drive [RMCS-3001]...
-
Page 2: Table Of Contents
3.1 Drive Technical Characteristics 3.2 Connector Description 3.3 Mechanical Specifications 3.4 Power supply Selection 3.5 LED Status and Error Codes 3.6 Parameter Settings Chapter 4: Trouble Shooting: 4.1 Self Testing 4.2 User Level Trouble Shooting Guide http://www.rhinomc.com Page 2 BLDC Motor Drive [RMCS-3001]... - Page 3 Electrical Characteristics Table 2 Power Terminal Assignments Table 3 Motor Terminal Assignments Table 4 Hall Sensor Terminal Table 5 Control Input Assignments Table 6 LED Status and Error Codes Table 7 Parameter Control settings http://www.rhinomc.com Page 3 BLDC Motor Drive [RMCS-3001]...
-
Page 4: Chapter1: Safety Precautions
70ºC degrees Celsius. Ambient temperature in excess of that may damage the driver. While changing the Direction, apply 5V or 0V to DIR pin. Power reset is necessary for implementing Dir change. http://www.rhinomc.com Page 4 BLDC Motor Drive [RMCS-3001]... -
Page 5: Chapter 2: Drive Overview

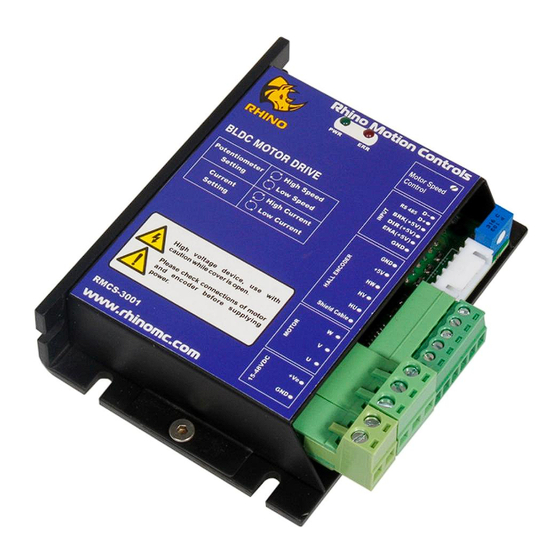

(Max. 48VDC and 5A per phase) Chapter 2: Drive Overview: RMCS-3001 is Rhino Motion Controls introductory Brushless low voltage (15–48V) DC driver designed for smooth and quiet operation without compromising on torque and control at higher speeds. It has short-circuit protection for the motor outputs, over-voltage and under- voltage protection and will survive accidental motor disconnects while powered-up. -
Page 6: Applications
Auto Current Reduction — Motor stand-still for more than 10ms Power Dissipation Watt — Short-Circuit Current Ampere In case of motor terminal short DIR Voltage Volt DC Ambient Temp. 0°C 70°C Celsius Humidity Non condensing http://www.rhinomc.com Page 6 BLDC Motor Drive [RMCS-3001]... -
Page 7: Connector Description
Description Terminal 6 Shield Shield Cable Terminal 7 Yellow Hall U Terminal 8 GREEN Hall V Terminal 9 BLUE Hall W Terminal 10 Power +ve ( + 5V output ) Terminal 11 Ground http://www.rhinomc.com Page 7 BLDC Motor Drive [RMCS-3001]... -
Page 8: Mechanical Specifications
Upgraded Version Terminal 17 RS485 D+ Upgraded Version 3.3 Mechanical Specifications: Specification Details Dimensions (L*W*H) 100mm * 75mm * 25mm Weight 155gms Heat Sink Anodized Aluminum 3mm thickness Mounting Screw Holes 3.6mm minimum diameter http://www.rhinomc.com Page 8 BLDC Motor Drive [RMCS-3001]... -
Page 9: Power Supply Selection
3.6 Parameter Settings: Table 7: Parameter Control Settings Resolution Description Pot-1 Potentiometer for speed control Pot-2 Current Setting (Inside chassis) Potentiometer: Clockwise (CW) rotation to increase speed Counter Clock-wise (CCW) rotation to decrease speed http://www.rhinomc.com Page 9 BLDC Motor Drive [RMCS-3001]... -
Page 10: Chapter 4: Trouble Shooting
These are the steps to check the basic functionality of a drive. 4.2 User Level Trouble Shooting Guide: The table given below shows some user level trouble shooting tips which may useful while working with RMCS-3001 with an external pulse generator. http://www.rhinomc.com Page 10... - Page 11 Six-Month Warranty Rhino Motion Controls (rhinomc.com) warrants its products against defects in materials and workmanship for a period of 6 months from shipment delivery. During the warranty period, Rhino Motion Controls will either, at its option, repair or replace products which proved to be defective.
