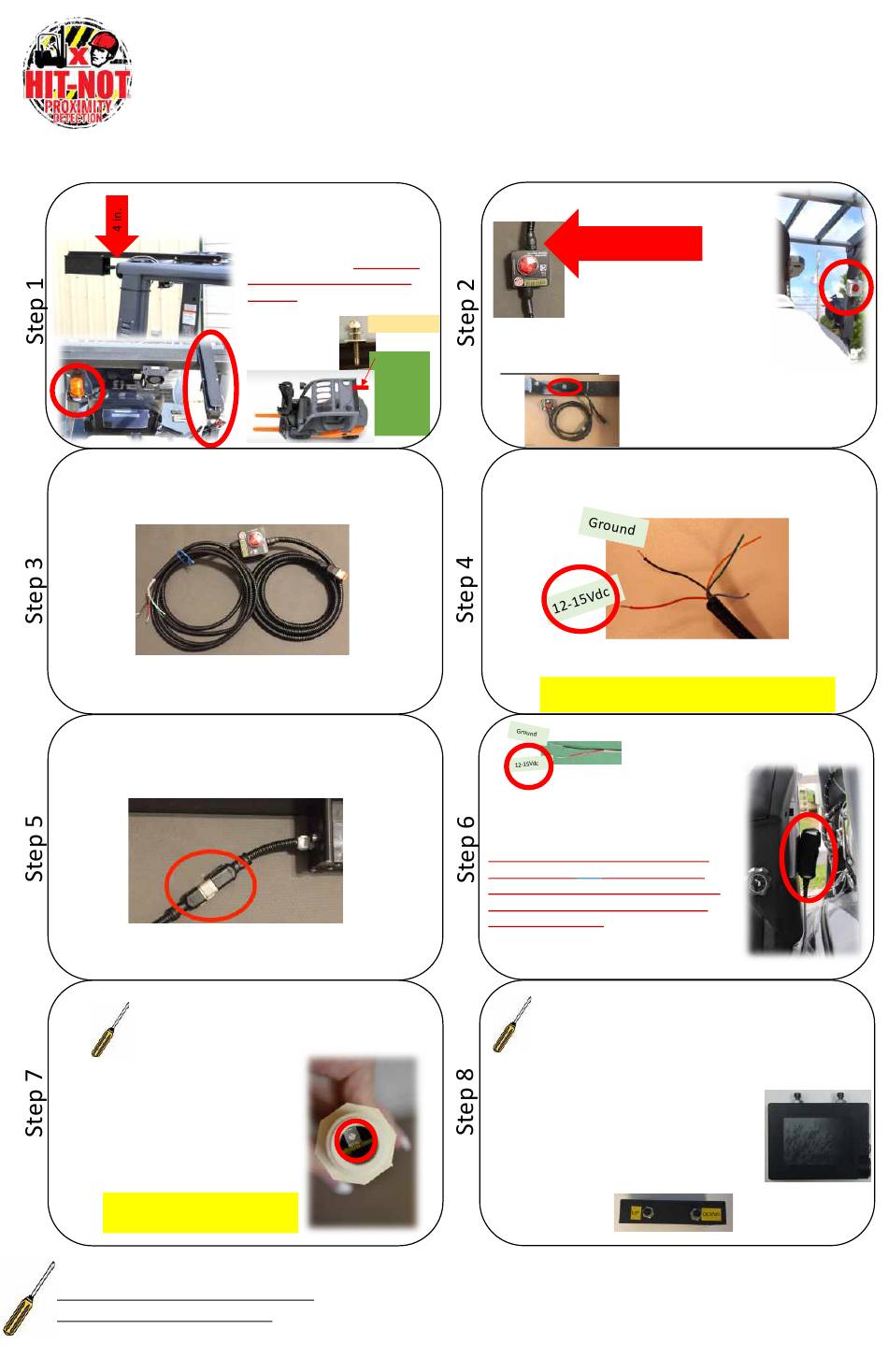

Hit-Not DDAC Series Installation Manual

DDAC Proximity Detection System

Install Generator

(This step shows mounting using the rear mount for other
mounting options see page three)
Warning Module Connections
The cable
exiting the
warning
module
with the
bare wires
goes to the
machine for
power
Note: Cable Ties included for attaching the
cables to the frame of the machine.
Making the Connection to the
Generator
Connect Warning Module (Plug) to Generator (Receptacle).
(For weathershield mounts the connection is already made
inside the weathershield)
Silent Zone Adjust
• Factory set to ~21 in.
To decrease the size, unscrew the
•
cap from the Cab Silencer.
Activate a PAD and turn on truck.
•
Using a 3/32" slotted screwdriver,
•
turn the Pot until the PAD silences at
the desired location.
Replace cap.
•
Ensure the Silent Zone does not
extend outside of the vehicle
All adjustments in Steps 7-13 need
to be done by a professional.
DDAC20040rev3.6
Installation Guide
(DDAC-PDS-SYS)
Install the Generator on top of
the overhead guard and at least
4" from the frame. It should be
as far from the strobe light as
possible. Use the U-Bolts to
secure the Generator to the
overhead guard. U-Bolt Assembly
Long Axis of
Generator
should run
parallel to
long axis of
vehicle as
shown
The cable
exiting the
warning
module
with the
connector
goes to the
Generator
www.hitnot.com

Install Warning Module

Connection to generator
should be pointed up
Place magnet side of the Warning Module
to the frame of the forklift where it can be
seen and heard by the operator.
An optional Auxiliary Light ( Light
Only Warning Module) can be
connected to the Generator to
provide an additional visual alert.
Making the connection
to machine power
Connect to a switched and fused (10A min)
DO NOT APPLY VOLTAGE TO THE INCORRECT WIRES, IT MAY
RESULT IN HARDWARE DAMAGE.

Cab Silencer

In order to avoid battery drain while the
vehicle is off, connect Cab Silencer to a
switched and fused (5A min) circuit.
Place the Cab Silencer within 21" of the
Operator's PAD AND 4ft away from the
generator. The best location is behind the
operators seat. For Mounting Locations
Diagram, see page 4.
The Cab Silencer may blind the CAM if installed
on the overhead guard.
Volume Adjust
• The clear plastic cover on the Warning Module can
be turned to reduce the sound.
• If the sound still needs to be reduced, utilize the
range adjust tool (Contact FEP).
• Ensure all other MFGs and PADs within 70ft
are off. Power on the range adjust tool
within 4ft of MFG. The warning module will
sound. Press the up switch to increase the
volume of the warning module and the
down switch to decrease the volume of the
warning module.
Average
Current:0.5A
Peak Surge
Current: 15A
circuit.
using Range Adjust Tool
