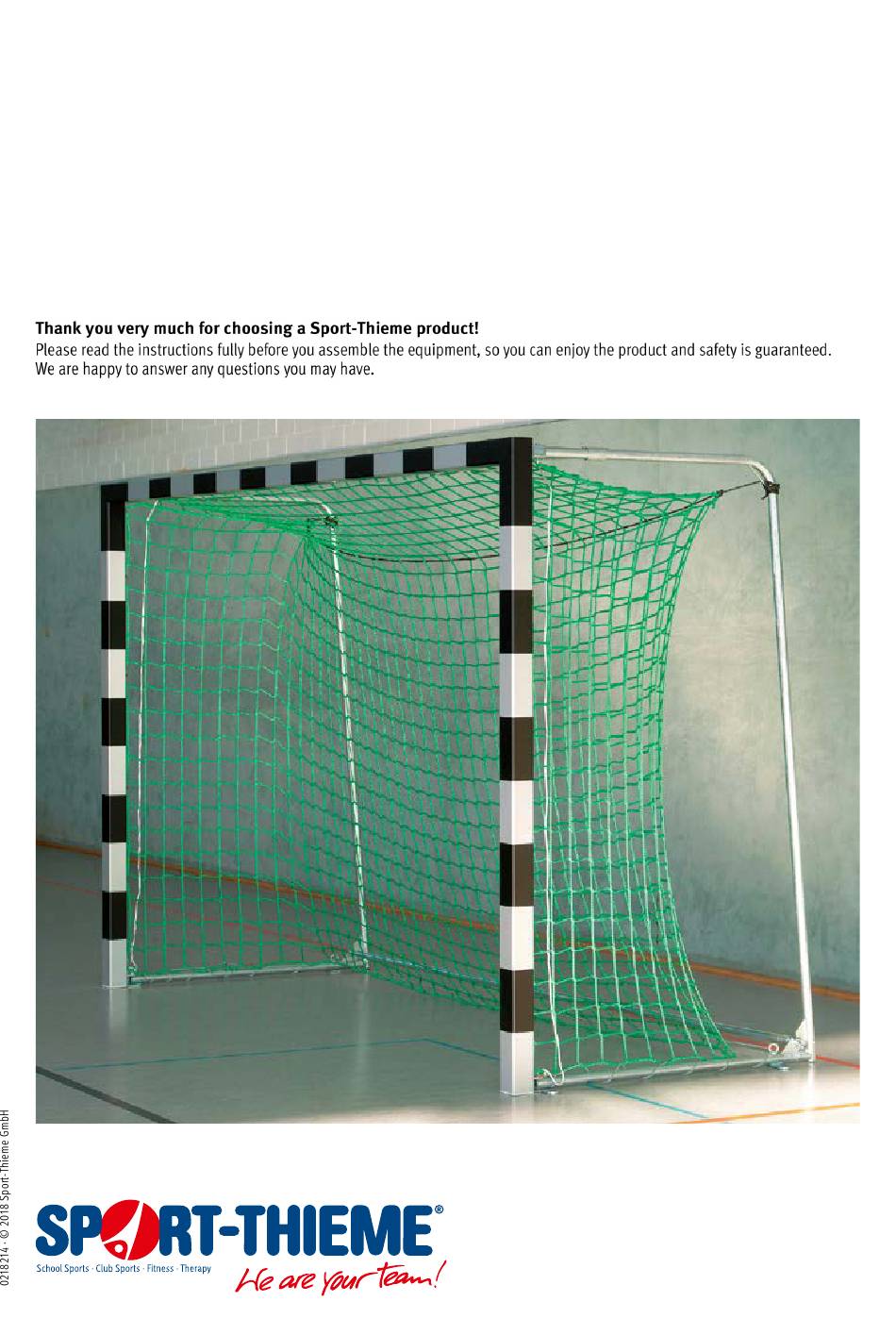

- Page 1 Assembly instructions Art.-Nr.: 201 0915 203 4502 Sport-Thieme ® Handball Goal, 3x2 m, Free-Standing or socketed D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
- Page 2 Assembly instructions for Art.-Nr. 201 0915/203 4502 1. Scope of delivery Please check the following content before assembly. The following indicated quantities refer to 1 Handball goal. In case of a delivery in pairs we double the amount correspondingly. Pictured colours of profiles are only samples and may differ from delivered profiles.
- Page 3 Assembly instructions for Art.-Nr. 201 0915/203 4502 2. Assembly of the goal The following tools are necessary: - 2 wrench/ring spanners 13 mm - 1 mallet/hammer - 1 drill Ø 1.5 mm - 1 thin screw driver (for net hook fixing, if necessary) a) Assembly of crossbar/uprights: Lay crossbar and uprights on the ground, groove facing upwards and mitres joining.
- Page 4 Assembly instructions for Art.-Nr. 201 0915/203 4502 c) Assembly of net hoop at the bottom- goal free standing, cat. No. 2010915: Screw from upright’s inside 4 hexagon socket cylinder screws M8 x 14mm, DIN 912 in the bottom end of the upright with extended hexagon screwdriver SW6, length 120 mm.
- Page 5 Assembly instructions for Art.-Nr. 201 0915/203 4502 d) Assembly of caps: Stick caps in the open ends of uprights (see picture bottom left). Bore them with drill 1.5 mm through the holes provided in the uprights. Then fix plug pins with a hammer/mallet (see picture bottom right).
- Page 6 Assembly instructions for Art.-Nr. 201 0915/203 4502 Fix ground tube between the net hoops (see 1nd picture bottom left). Screw 1 self-locking nut M8, DIN 985 so that the nut outside is flush with the screw of the bush (see picture bottom right).
- Page 7 Assembly instructions for Art.-Nr. 201 0915/203 4502 3. Assembly of the net The net is not part of the delivery. Fix net holders at the net rope. Bend open net holders a little and press rope into the holders. We recommend the following...
- Page 8 Assembly instructions for Art.-Nr. 201 0915/203 4502 4. Assembly of the ground sockets For handball gates with a size of 3,00 x 2,00 m the distance of the ground sockets must be 3,08 m (middle socket – middle socket = center distance).
