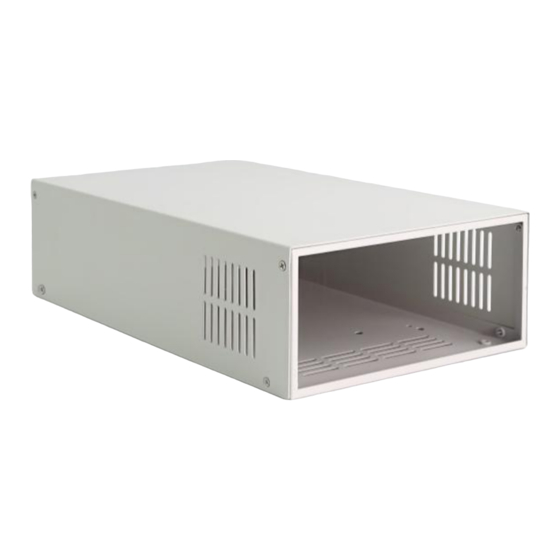

Digital power supply case

Advertisement

声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。

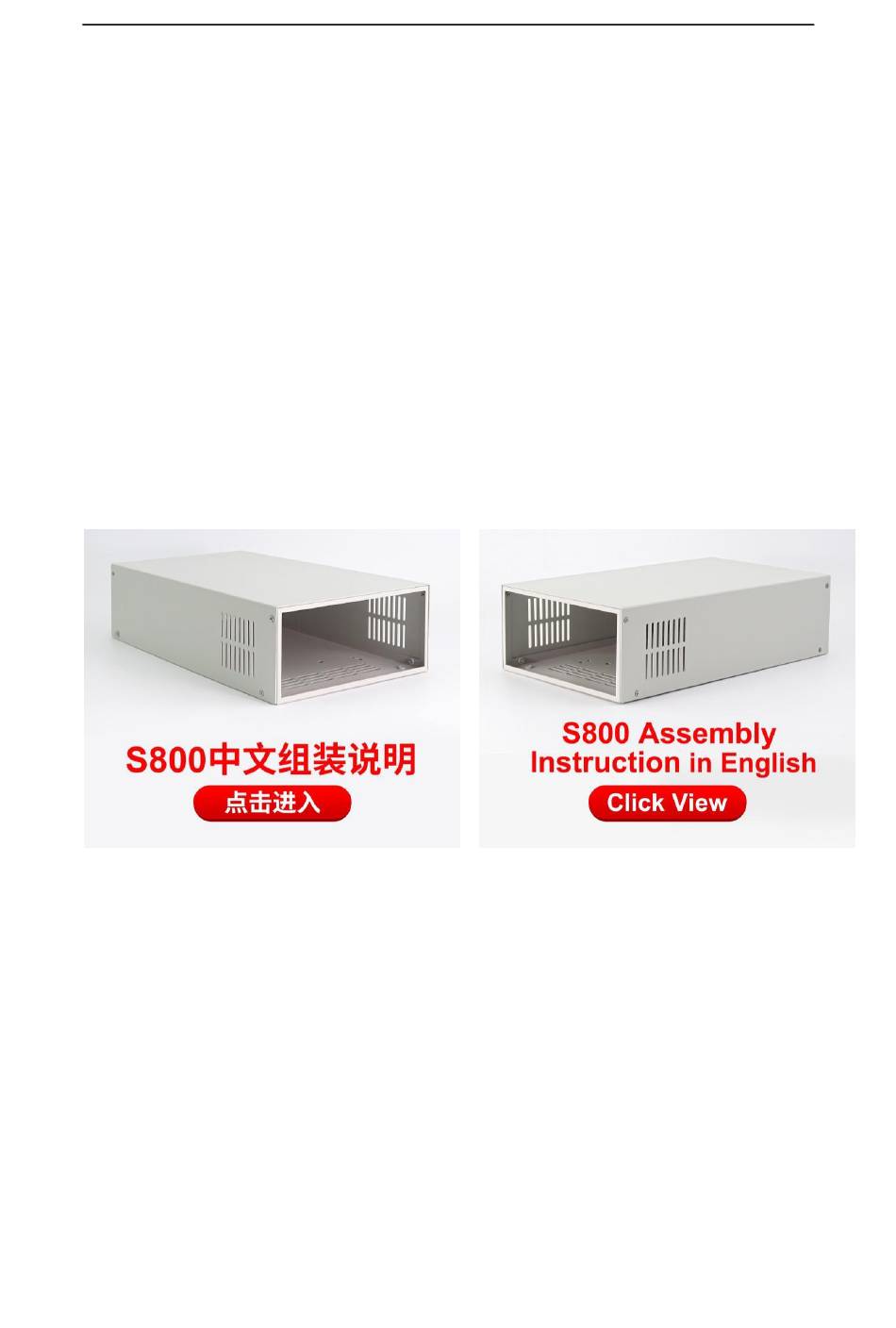

数控电源钣金外壳(S800)组装说明
Digital power supply case (S800) assembly instruction
外壳适用数控电源型号: RD6012/RD6012W/RD6018/RD6018W
This case is suitable for RD6012/RD6012W/RD6018/RD6018W
2020.7.24
修订日期:
Date: 2020.7.24
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S800 and is the answer not in the manual?

Questions and answers

Summary of Contents for RD S800

  • Page 1 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 数控电源钣金外壳(S800)组装说明 Digital power supply case (S800) assembly instruction 外壳适用数控电源型号: RD6012/RD6012W/RD6018/RD6018W This case is suitable for RD6012/RD6012W/RD6018/RD6018W 2020.7.24 修订日期: Date: 2020.7.24 - 1 -...
  • Page 2: 数控电源钣金外壳(S800)组装说明

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 数控电源钣金外壳(S800)组装说明 外壳适用数控电源型号:RD6012/RD6012W/RD6018/RD6018W 2020.7.21 修订日期: 尊敬的用户, 感谢您购买由睿登科技有限公司出品的数控电源配套外壳, 为了让您更快 了解本产品的全部功能,获得更好的使用体验,避免出现误操作,使用前请仔细阅读本说明 并保留好,以便日后查阅。 注意:由于组装过程涉及超过人体安全的电压,非专业人士请勿操作,组装过程中做 好绝缘和防护措施,重复检查接线,并将本品置于儿童和老人难以触碰到的地方。...
  • Page 3: Table Of Contents

    4. 产品配件图 .................. 5 5. 组装步骤 ..................6 5.1 组装准备 ................6 5.2 组装步骤: ................7 Digital power supply case (S800) assembly instruction ......12 1. Notes .................... 14 2. Product Dimension ............... 14 3. Accessory List ................15 4. Accessory Picture ................. 16 5.
  • Page 4: 注意事项

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 1. 注意事项  组装前请仔细阅读本文档,如有疑问请与本公司联系。 由于组装过程涉及超过人体安全的电压,非专业人士请勿操作, 组装过程中做好绝缘和防护措施,并将本品置于儿童和老人难以 触碰到的地方。  本外壳主要采用冷轧钢板或铝板材料,表面喷塑,组装、使用 时应防止尖锐物体划伤,避免阳光直晒和潮湿环境。  组装时防止短路,正确连接正负极。  不可在电源接通的情况下连接电路。  尽量避免震动和跌落。 2. 产品尺寸 请优先使用推荐开关电源, 由于套装的散热借助了开关电源的风扇, 如用其他电源请注 意,电源的散热能力是否足够,下图固定孔位置是否合适, 3. 配件列表 名称 规格 数量 图片 上盖板 S800 上盖板...
  • Page 5: 产品配件图

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 下盖板 S800 下盖板 棕色 32cm:1 根 棕色 10 cm:1 根 黄绿 32cm:1 根 连接电线 蓝色 32cm:1 根 红色 17cm: 2 根 黑色 17cm: 2 根 温度传感器延长小板 船型开关 KCD3 品字插座 AC-04 防滑脚垫 Φ13*4 防脚垫、开关电 M3*4 圆头带介 源、小板固定螺丝 外壳及品字插座 M3*6 平头白色...
  • Page 6: 组装步骤

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5. 组装步骤 5.1 组装准备  RDxx 数控电源一台,S800 外壳一套,65V800W 开关电源一台。  工具, 附件 (直流稳压电源, 品字电源线, 万用表, 螺丝刀, 测电笔等) 。  适当的组装环境。 推荐开关电源: https://item.taobao.com/item.htm?spm=a2oq0.12575281.0.0.2e2b1debXHW0ZH&ft=t&id=6237 35959670...
  • Page 7: 组装步骤

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5.2 组装步骤: 注:外壳质地略软,运输中可能会产生轻微的变形,如果组装的时候产生缝隙, 请轻轻掰直后再组装。 1. 配件检查:对照配件列表或配件图检查 S800 的配件是否完整。 2. RDxx 电源检查:检查 RDxx 的配件是否齐全,直流稳压电源调整到 12V1A 给 RDxx 通电, RDxx 设置 5V1A 打开输出看显示是否正常。 3. 后面板组装:将开关,品字插座组装到下盖板上。 接通电源线:此步骤有触电风险,需要专业人员操作 用棕线连通开关和开关电源的火线(L) ;然后用棕线连通开关和品字插座的 火线(L) ;用蓝线连通品字插座零线(N)和开关电源零线(N) ;用黄绿双色线 连通品字插座地线 (E) 和开关电源地线 (〨) ; 用两根红线接通绿色端子正极 (IN+) 和开关电源正极(+V) ,用两根黑线接通绿色端子负极(IN-)和开关电源负极 (COM) ;并将温度传感器延长小板安装到外壳上。...
  • Page 8 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5. 开关电源组装:将电源安装到下盖板上。 6. 开关电源测试:再次检查接线正确后,用品字线接入市电,打开开关用测电笔 检查供电和绝缘状况,再用万用表测量开关电源输出(+V 和 COM)是否正常, 然后用小螺丝刀调整下图白色电位器将电源的输出值微调到 68V 左右。...
  • Page 9 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 7. RDxx 组装:如自己配有时钟电池,可以将电池正极朝上安装,如果配有 WiFi 功能,将 WiFi 板如图对准安装到位。 安装产品时将 RDxx 平行对准卡进去 (斜着进 不去) ,为了防止晃动卡口做的比较紧,如果卡口略有变形,可以轻轻掰直。...
  • Page 10 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 8. 剩余接线组装:将温度传感器延长线插好,然后将绿色端子插好,并整理接 线。 9. 安装外壳螺丝。 10.安装脚垫。...
  • Page 11 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 11.如果需要使用外部温度测量功能,可以将温度线在后面插好,最后通电测试 使用。...
  • Page 12: Digital Power Supply Case (S800) Assembly Instruction

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 Digital power supply case (S800) assembly instruction This case is suitable for RD6012/RD6012W/RD6018/RD6018W Date: 2020.7.24 Dear users, thank you for purchasing the digital power supply accessory-metal case produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse.
  • Page 13 4. 产品配件图 .................. 5 5. 组装步骤 ..................6 5.1 组装准备 ................6 5.2 组装步骤: ................7 Digital power supply case (S800) assembly instruction ......12 1. Notes .................... 14 2. Product Dimension ............... 14 3. Accessory List ................15 4. Accessory Picture ................. 16 5.
  • Page 14: Notes

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 1. Notes ● Read this instruction carefully before assembly, if you still have any questions, please contact us. Since the assembly process involves voltage that exceeds the human body's safety, non-professionals should not operate, you must do insulation and protective measures during the assembly process, don’t forget to check the wiring several times for safety, and place the product at a place where children and old people cannot touch.
  • Page 15: Accessory List

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 3. Accessory List NAME SPECIFICATION QUANTITY PICTURE Upper Board S800 upper board Lower Board S800 lower board Brown 32cm:1 Brown 10 cm:1 Yellow Green 32cm:1 Connection Blue 32cm:1 Cables Red 17cm: 2 Black 17cm: 2 Temperature sensor extension board :1...
  • Page 16: Accessory Picture

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 Screws for fixing mats, extension board and M3*4 round head switch power supply Screws for fixing case and AC M3*6 flat head(white) power socket 4. Accessory Picture...
  • Page 17: Assembly Procedure

    Note: The case material is a bit soft and may be slightly deformed during transportation. If there is a gap during the assembly, please straighten it before assemble it. ①Check the accessories: check if the accessories of S800 are same as accessories list or accessory picture.
  • Page 18 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 supply; then use short brown cable to connect the rocker switch and the live wire (L) of the AC power socket; Use the blue cable to connect the neutral wire (N) of AC power socket and the neutral wire (N) of switch power supply; Use a yellow-green two-color cable to connect the ground wire (E) of AC power socket and the ground wire (〨) of switch power supply.
  • Page 19 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 switch power supply test: ⑥ Check the wring again and power on the switch power supply, and use test pencil to check the power and insulation status. Then use multimeter to check if the 60V output is normal, then use screw driver to adjust the output of the switch power supply to about 68V.
  • Page 20 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 Connect the rest cables: insert the external temperature sensor cable, insert the ⑧ green terminal and sort out the cables. ⑨Install the screws of the case...
  • Page 21 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 ⑩ Install the foot pads. ⑪ If you need to use external temperature detect, you can insert the external temperature sensor cable to be back end of the case, and do final test.
