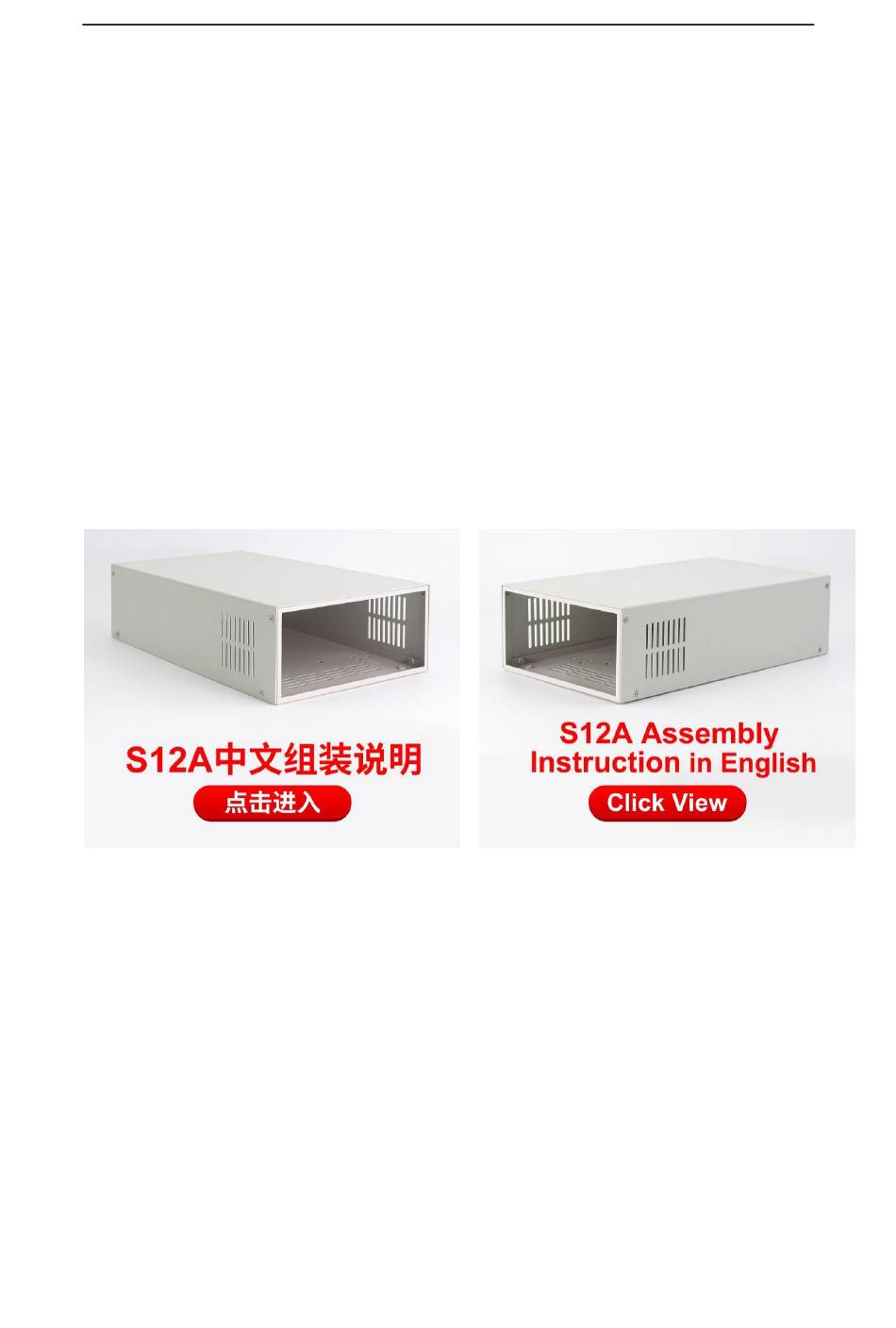

RD S12A Assembly Instruction Manual

Digital power supply case for rd6012

Advertisement

声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。
数控电源钣金外壳(S12A)组装说明
Digital power supply case (S12A) assembly instruction
外壳适用数控电源型号:RD6012
This case is suitable for RD6012
2020.5.11
修订日期:
Date: 2020.5.11
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S12A and is the answer not in the manual?

Questions and answers

Summary of Contents for RD S12A

  • Page 1 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 数控电源钣金外壳(S12A)组装说明 Digital power supply case (S12A) assembly instruction 外壳适用数控电源型号:RD6012 This case is suitable for RD6012 2020.5.11 修订日期: Date: 2020.5.11 - 1 -...
  • Page 2: 数控电源钣金外壳(S12A)组装说明

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 数控电源钣金外壳(S12A)组装说明 外壳适用数控电源型号:RD6012 2020.4.11 修订日期: 尊敬的用户, 感谢您购买由睿登科技有限公司出品的数控电源配套外壳, 为了让您更快 了解本产品的全部功能,获得更好的使用体验,避免出现误操作,使用前请仔细阅读本说明 并保留好,以便日后查阅。 注意:由于组装过程涉及超过人体安全的电压,非专业人士请勿操作,组装过程中做 好绝缘和防护措施,重复检查接线,并将本品置于儿童和老人难以触碰到的地方。 请优先使用推荐开关电源,如用其他电源请注意固定孔位置是否合适。...
  • Page 3: Table Of Contents

    4. 产品配件图 .................. 5 5. 组装步骤 ..................6 5.1 组装准备 ................6 5.2 组装步骤: ................7 Digital power supply case (S12A) assembly instruction ......11 1.Notes ....................13 2.Product Dimension and Power Supply Fixing Hole Pitch ..... 13 5. 组装步骤 ..................15 5.1 组装准备...
  • Page 4: 注意事项

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 1. 注意事项  组装前请仔细阅读本文档,如有疑问请与本公司联系。 由于组装过程涉及超过人体安全的电压,非专业人士请勿操作, 组装过程中做好绝缘和防护措施,并将本品置于儿童和老人难以 触碰到的地方。  本外壳采用冷轧钢板材料,表面喷塑,组装、使用时应防止尖 锐物体划伤,避免阳光直晒和潮湿环境。  组装时防止短路,正确连接正负极。  不可在电源接通的情况下连接电路。  尽量避免震动和跌落。 2. 产品尺寸/电源固定孔间距 3. 配件列表 名称 规格 数量 图片 上盖板 S12A 上盖板 下盖板 S12A 下盖板...
  • Page 5: 产品配件图

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 棕色 32cm:1 根 棕色 10 cm:1 根 黄绿 32cm:1 根 连接电线 蓝色 32cm:1 根 红色 17cm: 2 根 黑色 17cm: 2 根 船型开关 KCD3 品字插座 AC-04 防滑脚垫 Φ13*4 防滑脚垫及开关 M4*4 圆头带介 电源固定螺丝 外壳及品字插座 M3*6 平头白色 固定螺丝 品字插座固定 螺母 4. 产品配件图...
  • Page 6: 组装步骤

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5. 组装步骤 5.1 组装准备  数控电源 RD6012 一台,S12A 一套,70V800W 开关电源一台。  工具, 附件 (直流稳压电源, 品字电源线, 万用表, 螺丝刀, 测电笔等) 。  适当的组装环境。 推荐开关电源: https://item.taobao.com/item.htm?spm=a1z09.8149145.0.0.60905a63zfJngD&id=61 6423518679&_u=b43i3a99c18...
  • Page 7: 组装步骤

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5.2 组装步骤: 注:外壳质地略软,运输中可能会产生轻微的变形,如果组装的时候产生缝隙, 请轻轻掰直后再组装。 1. 配件检查:对照配件列表或配件图检查 S12A 的配件是否完整。 2. RD6012 检查: 直流稳压电源调整到 12V1A 给 RD6012 通电, RD6012 设置 5V1A 打开输出看显示是否正常。 3. 后面板组装:将开关,品字插座,组装到下盖板上。 4. 接通电源线:将电源的连线接通(危险动作,非专业人士请勿操作) 用棕线连通开关和开关电源的火线(L) ;然后用棕线连通开关和品字插座的 火线(L) ;用蓝线连通品字插座零线(N)和开关电源零线(N) ;用黄绿双色线 连通品字插座地线 (E) 和开关电源地线 (〨) ; 用两根红线接通绿色端子正极 (IN+) 和开关电源正极(+V) ,用两根黑线接通绿色端子负极(IN-)和开关电源负极 (COM) 。...
  • Page 8 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 5. 开关电源组装:将电源组按装到下盖板上。 6. 开关电源测试:再次检查接线后,用电源线供电,用测电笔检查供电和绝缘状 况, 再用万用表测量 60V 电源输出是否正常, 然后用小螺丝刀调整白色电位器将 电源的输出值微调到 68V 左右。...
  • Page 9 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 7. RD6012 组装:将 RD6012 轻轻安装在外壳中,如果有轻微晃动,可以将卡扣往 外轻轻掰一下。 8. 剩余接线组装:将外接温度传感器线插好并从壳子下面的孔中穿出,然后将 绿色端子插好,并整理接线。 9. 安装外壳螺丝。...
  • Page 10 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 10.安装脚垫。 11.最后通电测试。...
  • Page 11: Digital Power Supply Case (S12A) Assembly Instruction

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 Digital power supply case (S12A) assembly instruction This case is suitable for RD6012 Date:2020.5.11 Dear users, thank you for purchasing the digital power supply accessory-metal case produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse.
  • Page 12 4. 产品配件图 .................. 5 5. 组装步骤 ..................6 5.1 组装准备 ................6 5.2 组装步骤: ................7 Digital power supply case (S12A) assembly instruction ......11 1.Notes ....................13 2.Product Dimension and Power Supply Fixing Hole Pitch ..... 13 5. 组装步骤 ..................15 5.1 组装准备...
  • Page 13: Notes

    ● NEVER connect the cables when you turn on the power. ● Try to avoid vibration and fall. 2.Product Dimension and Power Supply Fixing Hole Pitch 3. Accessory List NAME SPECIFICATION QUANTITY PICTURE Upper Board S12A upper board Lower Board S12A lower board...
  • Page 14 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 Brown 32cm:1 Brown 10 cm:1 Connection Yellow Green 32cm:1 Cables Blue 32cm:1 Red 17cm: 2 Black 17cm: 2 KCD3 Rocker switch AC-04 AC power socket Φ13*4 Non-slip mats S crews for fixing mats and switch M4*4 round head power supply S crews for fixing case and AC M3*6 flat head(white)
  • Page 15: 组装步骤

    声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 4. Accessory Picture A: Lower Board B:Upper Board C: Screws for fixing mats D: Screws for fixing case and switch power supply and AC power socket E: Nuts for fixing the AC power socket F: Non-slip matss G: Rocker switch H: AC power socket I: Connection Cables 5.
  • Page 16: 组装准备

    Note: The case material is a bit soft and may be slightly deformed during transportation. If there is a gap during the assembly, please straighten it before assemble it. ①Check the accessories: check if the accessories of S12A are same as accessories list or accessory picture.
  • Page 17 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 ④Connect cables to switch power supply: (dangerous, non-professionals should not operate) Use the brown cable to connect the rocker switch and the live wire (L) of the switch power supply; then use the brown cable to connect the rocker switch and the live wire (L) of the AC power socket;...
  • Page 18 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 switch power supply test: ⑥ check the wring again and power on the switch power supply, and use test pencil to check the power and insulation status. Then use multimeter to check if the 60V output is normal, then use screw driver to adjust the output of the switch power supply to about 68V.
  • Page 19 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 ⑨Install the screws of the case ⑩Install the foot pads.
  • Page 20 声明:本说明书著作权归杭州睿登科技有限公司所有,未经允许任何单位或个人不得用于商业用途。 ⑪Final energization test...
