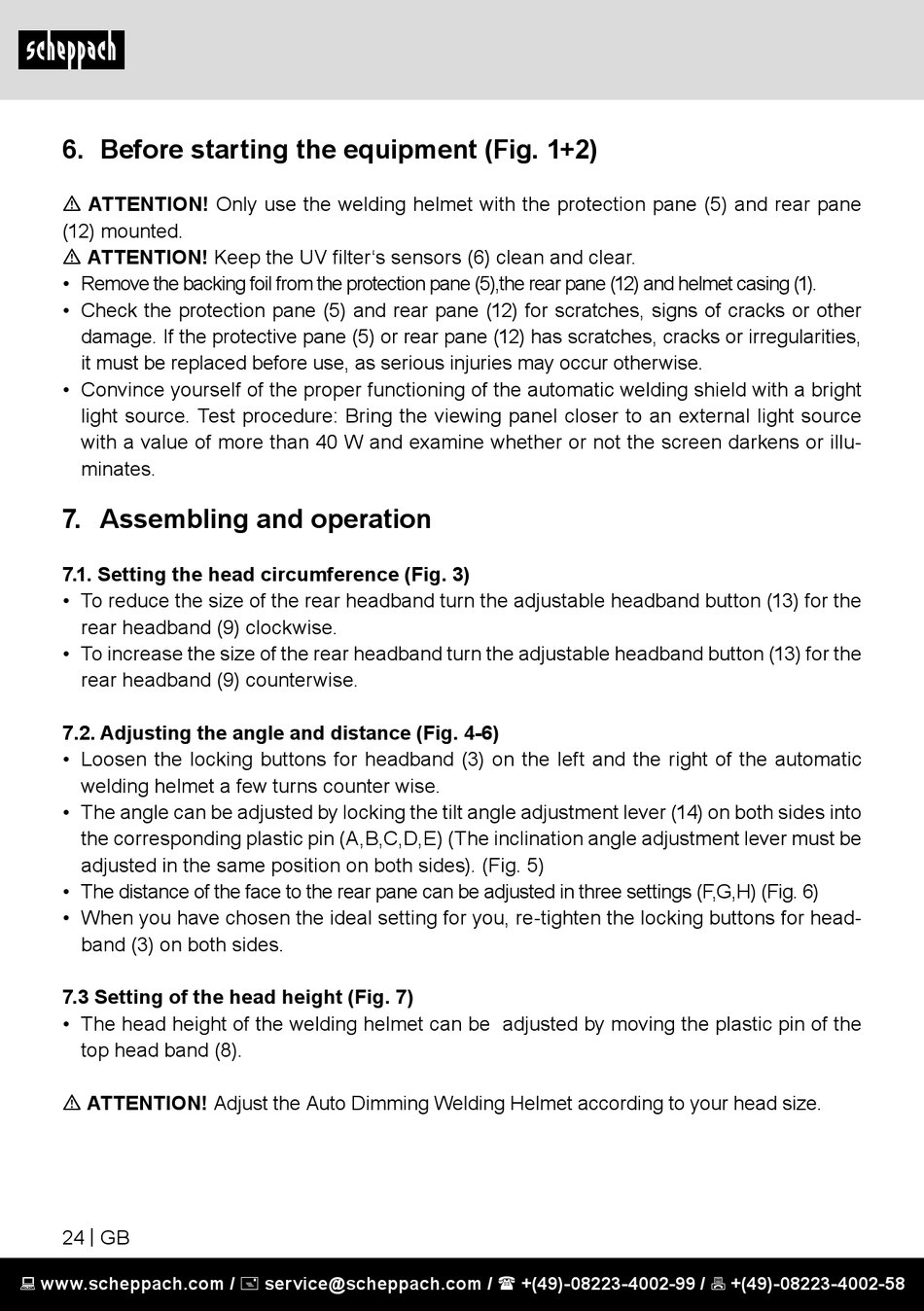

6. Before starting the equipment (Fig. 1+2)

m ATTENTION! Only use the welding helmet with the protection pane (5) and rear pane
(12) mounted.
m ATTENTION! Keep the UV filter's sensors (6) clean and clear.
• Remove the backing foil from the protection pane (5),the rear pane (12) and helmet casing (1).
• Check the protection pane (5) and rear pane (12) for scratches, signs of cracks or other
damage. If the protective pane (5) or rear pane (12) has scratches, cracks or irregularities,
it must be replaced before use, as serious injuries may occur otherwise.
• Convince yourself of the proper functioning of the automatic welding shield with a bright
light source. Test procedure: Bring the viewing panel closer to an external light source
with a value of more than 40 W and examine whether or not the screen darkens or illu-
minates.

7. Assembling and operation

7.1. Setting the head circumference (Fig. 3)
• To reduce the size of the rear headband turn the adjustable headband button (13) for the
rear headband (9) clockwise.
• To increase the size of the rear headband turn the adjustable headband button (13) for the
rear headband (9) counterwise.
7.2. Adjusting the angle and distance (Fig. 4-6)
• Loosen the locking buttons for headband (3) on the left and the right of the automatic
welding helmet a few turns counter wise.
• The angle can be adjusted by locking the tilt angle adjustment lever (14) on both sides into
the corresponding plastic pin (A,B,C,D,E) (The inclination angle adjustment lever must be
adjusted in the same position on both sides). (Fig. 5)
• The distance of the face to the rear pane can be adjusted in three settings (F,G,H) (Fig. 6)
• When you have chosen the ideal setting for you, re-tighten the locking buttons for head-
band (3) on both sides.
7.3 Setting of the head height (Fig. 7)
• The head height of the welding helmet can be adjusted by moving the plastic pin of the
top head band (8).
m ATTENTION! Adjust the Auto Dimming Welding Helmet according to your head size.
