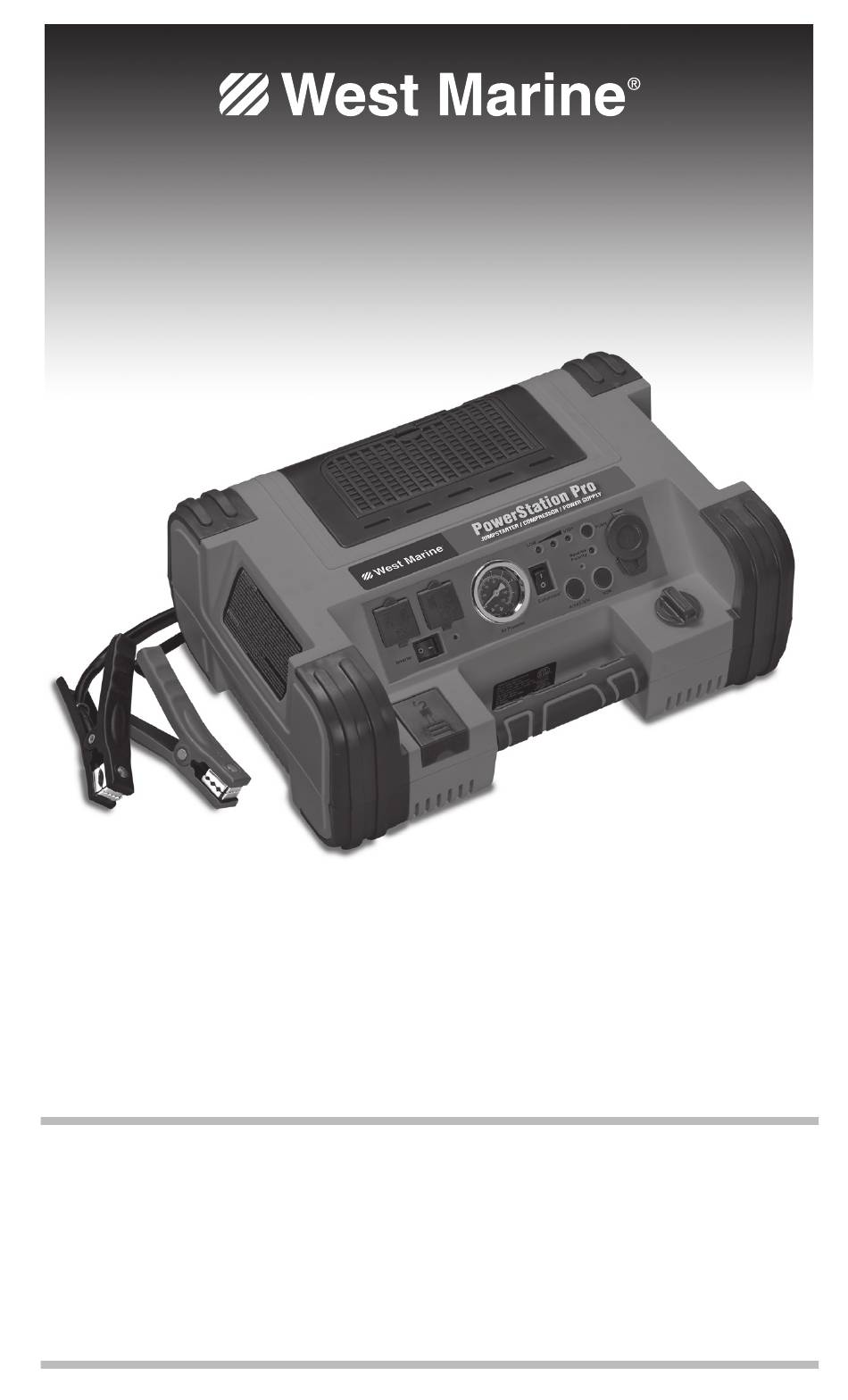

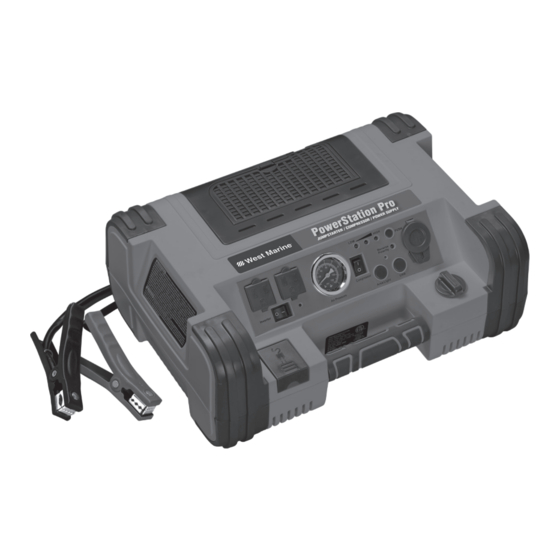

- Page 1 PowerStation Pro jumpstarter / compressor / power supply MODEL 15808520 / PPRH6WM Dispositif de démarrage rapide / Compresseur / Source d’alimentation Owner’s Manual...
- Page 2 FEATURES POWERSTATION PRO WEST MARINE...
-
Page 3: Fcc Compliance
• Reorient or relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the party responsible for compliance could void user’ s authority to operate the equipment. POWERSTATION PRO WEST MARINE... -
Page 4: Safety Guidelines - Definitions
• Don’t abuse cord. Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges. • Disconnect appliances. Disconnect the appliance from the power supply when not in use, before servicing, and when changing accessories. POWERSTATION PRO WEST MARINE... - Page 5 An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. • when an extension cord is used, make sure that: a ) the pins of extension cord are the same number, size and shape as those in the charger, POWERSTATION PRO WEST MARINE...
- Page 6 It is not intended to supply power to a low-voltage electrical system other than in a starter-motor application. • Use of an attachment not supplied, recommended or sold by manufacturer specifically for use with this unit may result in a risk of electrical shock and injury to persons. POWERSTATION PRO WEST MARINE...
- Page 7 (red) clamp to the vessel or vehicle chassis or engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. POWERSTATION PRO WEST MARINE...
-
Page 8: First Aid
If redness, pain, or irritation occurs, seek immediate medical attention. • EYES: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15 minutes and seek immediate medical attention. SAVE THESE inSTRUCTionS POWERSTATION PRO WEST MARINE... -
Page 9: General Operation
The DC recharging method will NOT recharge the unit as effectively as recharging from 120 Volt AC. The 12 Volt DC recharging procedure is recommended only when it is necessary, since frequent use of the 12 Volt DC recharging procedure may shorten the battery system’ s life. POWERSTATION PRO WEST MARINE... - Page 10 In the rare event that the vessel or vehicle to be started has a Positive Grounded System (positive battery terminal is connected to chassis), replace steps 4a and 4b above with steps 5a and 5b, then proceed to step 6. POWERSTATION PRO WEST MARINE...
- Page 11 • If vessel or vehicle fails to start, turn off the ignition, turn off the jump starter power switch, disconnect the jump start system’ s leads and contact a qualified technician to investigate why the engine did not start. • Recharge this unit fully after each use. POWERSTATION PRO WEST MARINE...
- Page 12 120 Volt AC outlets are ready to use. 2) Lift up the cover of the 120 Volt AC outlet. 3) Insert the 120 Volt AC plug from the appliance into the 120 Volt AC outlet. POWERSTATION PRO WEST MARINE...
-
Page 13: Protective Features
2) Insert the 12 Volt DC plug from the appliance into the 12 Volt accessory outlet on the unit. DO NOT EXCEED A 5 AMP LOAD. 3) Switch on the appliance and operate as usual. 4) Periodically check the unit’ s battery status by pressing the battery power level button. (Two red and one green battery status indicator lights POWERSTATION PRO WEST MARINE... -
Page 14: Area Light
The compressor may be used by removing the air hose from the storage compartment and, if required, fitting an appropriate nozzle to the air hose. Return hose to the storage compartment after use. POWERSTATION PRO WEST MARINE... - Page 15 9) Store the compressor hose, nozzle and adapters in the storage compartment. warNING: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE: FOLLOW ALL SAFETY INSTRUCTIONS FOUND IN THE “Specific safety instructions for Compressors” section of this instruction manual. POWERSTATION PRO WEST MARINE...
-
Page 16: Care And Maintenance
4) If blown, locate a replacement 8 amp fuse. 5) Replace the fuse, spring, contact and end cap. 6) Screw end cap clockwise until it is finger tight — DO NOT OVER-TIGHTEN. 7) Test for proper operation of the 12 Volt DC Charging Adapter. POWERSTATION PRO WEST MARINE... -
Page 17: Troubleshooting
• Make sure the area light on/off button is in the on position • Check that unit has a full charge. Recharge unit if necessary. portable compressor will not inflate • Make sure the compressor power switch is in the on position. • Check that unit has a full charge. Recharge unit if necessary. • Make sure the nozzle connector is securely screwed on to the valve stem when attempting to inflate tires; or that the nozzle adapter is securely screwed into the SureFit™ nozzle connector and is inserted properly into the item to be inflated on all other inflatables. • The compressor may be overheated. Press the compressor power switch to turn the compressor off. Restart after a cooling down period of approximately 30 minutes. POWERSTATION PRO WEST MARINE... -
Page 18: Service Information
120 Volts AC, 60Hz, 9W area light: 3 white LEDs usB port: 5 Volt DC, 500mA Dc accessory outlet: 12 Volt DC, 5A Dual 120V ac outlets: 120 Volt AC, 60Hz, 500W continuous compressor maximum pressure: 120 PSI POWERSTATION PRO WEST MARINE... - Page 19 (the “Limited Warranty Term”). The warranty period is not extended if we repair or replace a warranted product or any parts. West Marine reserves the right to change the availability of limited warranties, at its discretion, but any changes will not be retroactive and will only apply to subsequent purchases.
- Page 20 www.westmarine.com Other trademarks and trade names are those of their 1-800-BOATING respective owners. 43000-1851 Rev: 07/14...
