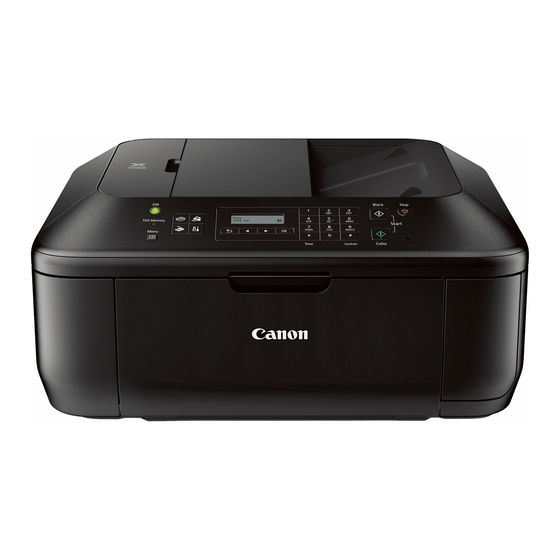

Canon MX392 Setup Manual

Dedicated fax line
Hide thumbs

Advertisement

Quick Links

Dedicated Fax Line
Setup Guide
MX392
Next

Advertisement

loading

  Also See for Canon MX392

  Related Manuals for Canon MX392

  Summary of Contents for Canon MX392

  • Page 1 Dedicated Fax Line Setup Guide MX392 Next...
  • Page 2 Fax Easy Setup Click to step through this image-friendly version of Fax Easy Setup. Next If you started Fax Easy Setup, on the fax machine’s operation panel, and prefer to go through this image-friendly version… Step 1 Step 2 Press the FAX button at any screen Click to proceed Next...
  • Page 3: Connecting The Phone Lines

    Connecting The Phone Lines Previous Next...
  • Page 4 Connecting The Phone Lines Before Wall jack After Wall jack (Phone Cord included with Canon printer) Next Previous...
  • Page 5 If Your Wall Plate Has Two Jacks Use the jack that supports the fax line. Previous Next...
  • Page 6 If Your Wall Plate Has One Jack For Two Lines If your wall jack provides one jack for two phone lines, it would be best to use a “2 Line 3 Way Adapter.” This adapter can be purchased at most stores that sell electronics.
  • Page 7 Fax to Phone Line Connection First, connect one end of the supplied telephone cord to the telephone jack on the wall. Wall jack (Phone Cord included with Canon printer) Previous Next...
  • Page 8 Fax to Phone Line Connection Next, connect the other end of the supplied telephone cord to the lower jack (labeled “LINE”) on the rear of the MX392. Wall jack (Phone Cord included with Canon printer) Previous Next...
  • Page 9: Setting Up The Receive Mode

    Setting Up The Receive Mode Previous Next...
  • Page 10 Step 1 Step 2 Turn on the MX392 by pressing the Press the FAX button. ON button, if it is not powered on already. Previous Next...
  • Page 11 Step 3 Step 4 The fax standby screen will appear. Press the Menu button. Previous Next...
  • Page 12 Step 5 Step 6 The FAX menu screen will appear. Use the LEFT or RIGHT button to select “Receive mode set”. Previous Next...
  • Page 13 Step 7 Step 8 Press the OK button. Use the LEFT or RIGHT button to select “FAX only mode”. Previous Next...
  • Page 14 Step 9 Step 10 Press the OK button. Use the LEFT or RIGHT button to select “No” at Make adv. settings screen. Previous Next...
  • Page 15 Step 11 Step 12 Press the OK button. You will return to the “Fax standby screen” and the receive mode will appear on the screen. Previous Next...
  • Page 16 To Receive A Fax When a call comes in on the fax line, the MX392 will answer the call and begin receiving the fax. You do not have to be home or interact with the MX392 to receive a fax.
