Owner s Manual
V
M
I
irgin
usical
nstruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hitman Drum1 and is the answer not in the manual?

Questions and answers

Related Manuals for Virgin Musical Instruments Hitman Drum1

Summary of Contents for Virgin Musical Instruments Hitman Drum1

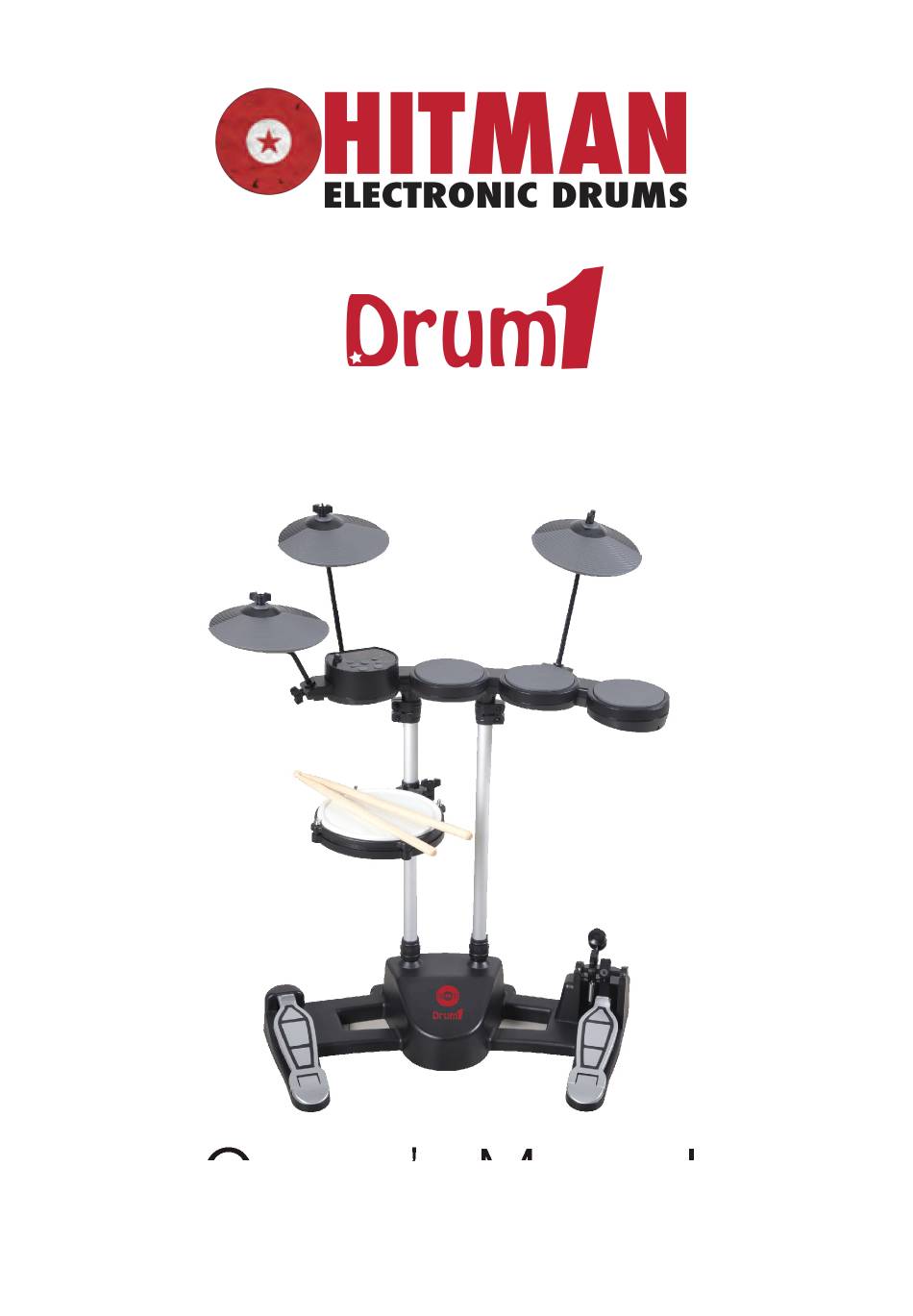

  • Page 1 Owner s Manual irgin usical nstruments...
  • Page 2 Precaution Thank you for purchasing this electronic instrument.For perfect operation and security, please read the manual carefully and keep it for future reference. Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Table Of Contents

    Contents Panel Controls ..............Assembly Instruction ............Connect ................Drum Module Connector Panel .......... Connecting the Power Supply ..........Connecting a Laptop, Tablet, Smartphone etc. (AUX In jack) USB MIDI ............... Connecting Headphones ........... Let's Play ................Switch the Power On ............Set the Master Volume .............

  • Page 4: Panel Controls

    Panel Controls Top Panel Rear Panel CONNECT RIDE CRASH HI-HAT SNARE TO HOST TO BASE AUX IN PHONES 11 12 Back Panel of bottom case POWER CONNECT DC 9V TO MODULE...
  • Page 5 Top Panel 1.MASTER VOLUME This is used to adjust LINE OUT volume, headphone volume and LINE IN volume. 2.[TEMPO/TAP] Button This button is used to change the song's tempo and metronome tempo, allows you to tap the tempo on the pad to change the song's tempo. 3.[KIT] Button This button is used to set the volume and voice of the pad.
  • Page 6 Real Panel CONNECT TO BASE This jack is used to connect the module to Back Panel of bottom case. 9. Trigger Input Jacks These jacks are used to connect the pads to the Module.(HI-HAT, RIDE, CRASH, SNARE) 10. USB TO HOST This is USB MIDI jack.

  • Page 7: Assembly Instruction

    Assembly Instruction #1: Take out the bottom case from the packaging and insert the two aluminum tubes into the bottom case as shown. Tighten the screw so that the case is tight against the tubes. #2: Take out the drum module and three Tom pads from the packaging and insert them on to the two aluminum tubes as...
  • Page 8 #5: Assemble the Hi-Hat cymbal as shown in the figure and tighten the T-screw. #6: Take out the Snare pole from the packaging and insert it into drum stand as shown in the figure and tighten the T-screw. #7: Take outSnare Pad from the packaging and insert it ontothe Snare poleas shown in the figure and tighten the T-screw.
  • Page 9 Hi-Hat Foot Controller The Hi-Hat Foot Controller Pedal has the following functions: It can produce a hi-hat closed sound if you hit the hi-hat Cymbal when pressing down on the foot controller pedal. It can produce a hi-hat open sound if you hit hi-hat without pressing the hi-hat pedal.

  • Page 10: Connect

    Connect Drum Module Connector Panel RIDE CRASH HI-HAT SNARE CONNECT TO BASE CRASH SNARE TO HOST RIDE HI-HAT KICK HI-HAT Control Connecting the Power Supply Make sure the power is switched OFF when connecting AC POWER the power adaptor to the DC 9V jack on the bottom rear panel.

  • Page 11: Connecting A Laptop, Tablet, Smartphone Etc. (Aux In Jack)

    Connecting a Laptop, Tablet, Smartphone etc. (AUX In jack) The audio output from any player device connected to the AUX IN jack on the rear panel can be mixed with the sound from the Drum Module. This function is convenient when you want to play along with your favorite songs. The volume of the external signal is adjusted with the MASTER VOLUME knob.

  • Page 12: Let's Play

    Let's Play Switch the Power On After confirming that each of the pads, cymbals and any external devices, etc. are all properly connected, turn the power on. The drum module is ready to operate when the display is shown as below, for selecting the drum kit.

  • Page 13: [Click] Button (Metronome)

    Selecting A Different Voice for a Drum Pad Press the [KIT] button and the [REC/PLAY] button, then hit the pad that you want to change. Use the [+] [-] buttons to select a different Drum Pad Voice. For example: Selecting a different TOM 1 Drum Pad Voice. 1.

  • Page 14: [Rec/Play] Button

    Click Sound You have three different sound options for the CLICK. Press the [click] button and use the [+] or [-] button to select a different click sound. The Click sound range is from: 001-003. Click Volume When the CLICK is off, press the[CLICK] button and either the [+]or[-] button to select click volume.

  • Page 15: [Song] Button

    [SONG] Button The Drum1 provides 10 preset play along songs and 1 Demo song. Press [SONG] and [KIT] button to start or stop the song. Drum On/Off In [SONG] mode, press the [SONG] button for 2 seconds. The LED will display “oN”or“oFF”.

  • Page 16: [Tempo/Tap] Button

    Mix the Play Along Song Volume In the [SONG] mode, press the [SONG] button and use [+] or [-] buttons to adjust the song volume. The Range is from:000-032. [TEMPO/TAP] Button There are two ways to adjust the Tempo on the Drum 1. Enter Mode The Tempo function can be adjusted tempo by using [TEMPO/TAP] button.

  • Page 17: Factory Set

    Factory Set To Restore the Drum1's setting to the original factory default settings do the following. Turn off the power. Hold down the [+] and [-] buttons, then turn the power back on. This will erase the Drum Modules internal memory and restore all the settings to its factory reset levels.

  • Page 18: Drum Kits List

    Drum Kits List Kits No Kits name ● Kits1 Acoustic_kit_1 Kits2 Acoustic_kit_2 Kits3 Room_kit NL Kits4 Rock_kit Kits5 Dance_club_kit Kits6 Jazz_kit Kits7 Electronic_kit Kits8 Analog_kit Kits9 Latin_kit Kits10 Modern R&B Kits11 User...

  • Page 19: Voice List

    Voice List Boom_snap_snr Acoustic_tom_L_02 Group 1: Kick Drums Trash_snare Room_tom_H_01 Pop_snr_02 Room_tom_M_01 Acoustic_kick_01 Reggae-pop_snr Room_tom_L_01 Acoustic_kick_02 Brush_snr_01 Compressed_tom_H Room_kick_01 Early_RnB_snare Compressed_tom_M Room_kick_02 Pop_snr_01 Compressed_tom_L Rock_kick_01 Latin_snr+tambourine Rock_tom_H_01 Jazz_kick_01 Electro-pop_snr Rock_tom_M_01 Early_RnB_kick Rap-hop_snr Rock_tom_L_01_6L Compressed_kick Analog_snr_01 Rock_tom_H_03 Latin_kick Modern_RnB_snr Rock_tom_M_03 Pop_kick_02 Rock_snr_03 Rock_tom_L_02 Trash_kick...
  • Page 20 Electronic_tom_M_01 Electronic_ride_01 Drum_machine_hat_op Electronic_tom_L_01 Modern_RnB_hat_cl Electronic_tom_H_02 Group 5: -hats Modern_RnB_hat_foot Electronic_tom_M_02 Modern_RnB_hat_op Electronic_tom_L_02 Brush_hat_cl_01 Analog_tom_H Brush_hat_foot_01 Group 6: Percussion Analog_tom_M Brush_hat_op_01 Analog_tom_L Acoustic_hat_cl_2 Agogo_H Drum_machine_tom_H Acoustic_hat_foot_2 Agogo_L Drum_machine_tom_M Acoustic_hat_op_2 Latin_tom_agogo_H Drum_machine_tom_L Room_hat_cl Conga_H Room_hat_foot Conga_L Group 4: Cymbals Room_hat_op Hand_claps Rock_hat_cl_01_6L Timbale_H cr_49_crash...

  • Page 21: Style List

    Style List Style No Style name ● Rock Shuffle Surf Pop Techno 60's Rock Hard Rock Pop Bossa 80's Rock 16 Beat Pop Shuffle Guitar Pop...

  • Page 22: Midi Implementation Chart

    MIDI Implementation Chart Function Transmitted Recognized Remarks Basic Default 1-16 1-16 Memorized Channel Changed 1-16 each 1-16 each Mode Default Mode 3 Mode 3 Messages Altered ********** Note 0~127 0~127 Number True voice ********** 0~127 Velocity Note ON O 99H,v=1~127 O 9nH,v=1~127 Note OFF O 89H,v=0...

  • Page 23: Specifications

    Specifications 1 Snare , 3 TOM Pads, 2 Cymbal Pads, Drum Pads: 1 Hi-Hat, 1 Hi-Hat Control, 1 Bass Drum Multi-Function LED Display. Display: Polyphony: 32 Notes Max Voice Control: 193 Percussion Voices Drum Sets 10 preset drum kits and 1 user drum kit Styles: 10 Styles Pad Control:...
  • Page 24 Virgin Musical Instrument Company INC P O Box 2908 La Mesa, CA 91943 PH: 619 244-0006 E-mail: info@virginmusicalinstruments.com Virginmusicalinstrumentscompany.com...
