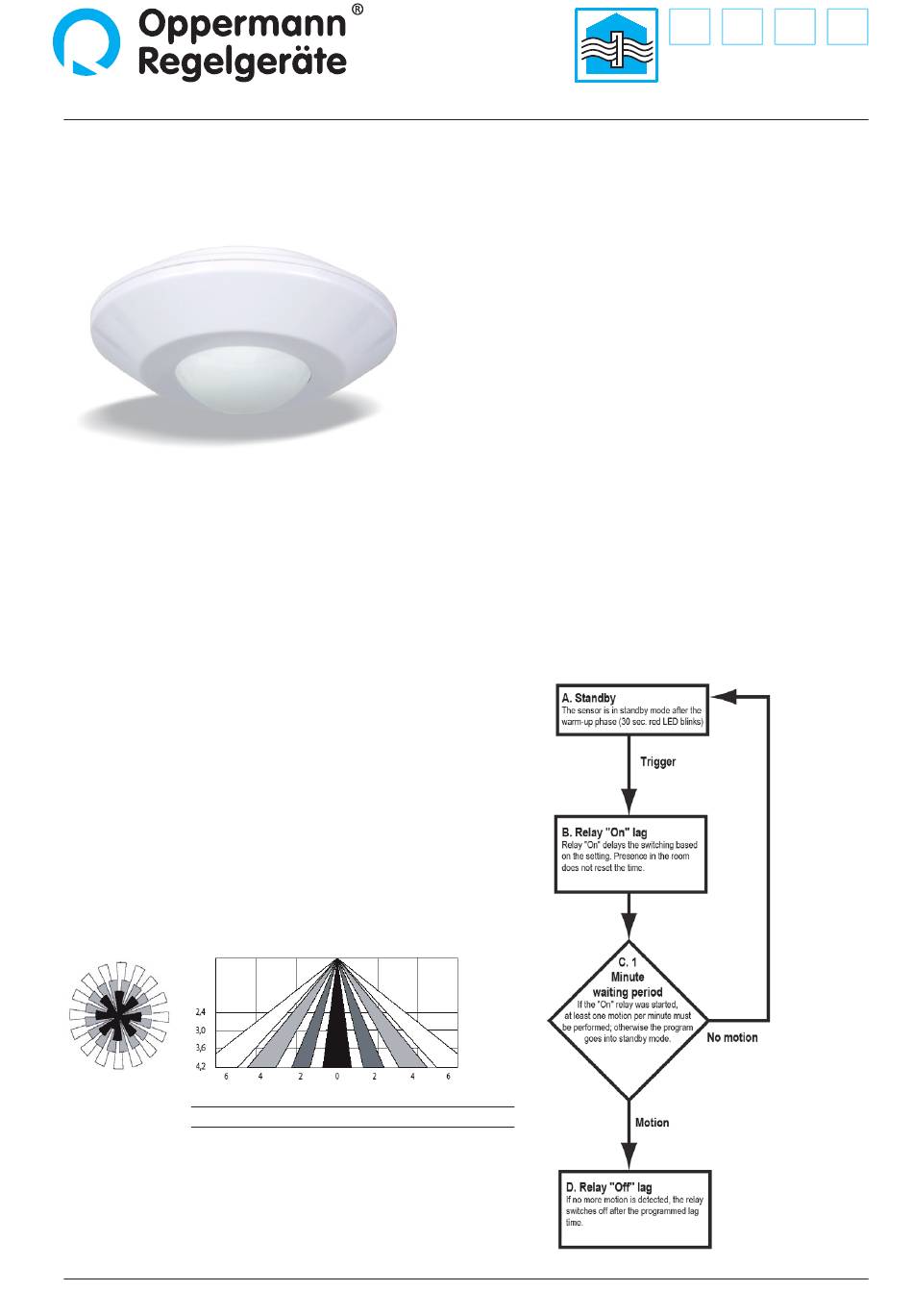

Oppermann Regelgeräte OPP-PIR-LUX-1 Manual

Combination detector – presence and brightness
OPP-PIR-LUX-1
Technical Data
Infrared sensor:
Brightness sensor:
Power supply:
Sensor range:
Power consumption:
Response velocity:
Output signal/motion:
Output signal/light:
Ambient conditions:
Weight:
Dimensions (Ø x H):
Installation height:
Cable bushing:
Color:
Detection range
Front view Side view
Installation height 2.4 m
Sensor range
Omni-directional 360 °
Photocell, adjustable
24 ± 2 V AC/DC
Height x 2.5 at 25 °C
8 mA (standby), 20 mA (activ)
0.1 to 3 m/s
1 changeover contact,
24 V AC/DC; 0.2 A max.
TTL (5 V active, 0 V off )
-10 °C – + 60 °C, max. 95 % RH
ca. 130g
110 x 60 mm
2.4 – 4.2 m
From rear for cable IY(ST)Y4x2x0.8
white
3.0 m 3.6 m
6.0 m 7.5 m 9.0 m
Sensor ventilation air conditioning | Data sheet No. 15604 | Version 02-2012 | 1 | 2
•
Ceiling installation 360° range
•
24 V AC/DC connection
•
Shut-off lag: 10s – 30 min, selectable
•
Switch-on lag: 0 – 10 min, selectable
•
Relay output: one changeover contact for
motion detection
•
TTL output for light control
Product description
The OPP-PIR-1 is a presence and brightness detector specifi-
cally designed for HVAC applications in a visually appealing,
white housing. The lens has a detection angle of 360° to reliably
detect motion. A photocell additionally detects brightness and
switches the light output when the brightness falls below the
setpoint in conjunction with motion.
4.2 m
10.5 m
