Transmitter Solutions TRAKEYFREE2-W Quick Start Guid

1

Introduction

Color
White TRAKEYFREE2-W
Black TRAKEYFREE2-B
2

Technical Specifications

105
70
Fig. 2
3

Mounting

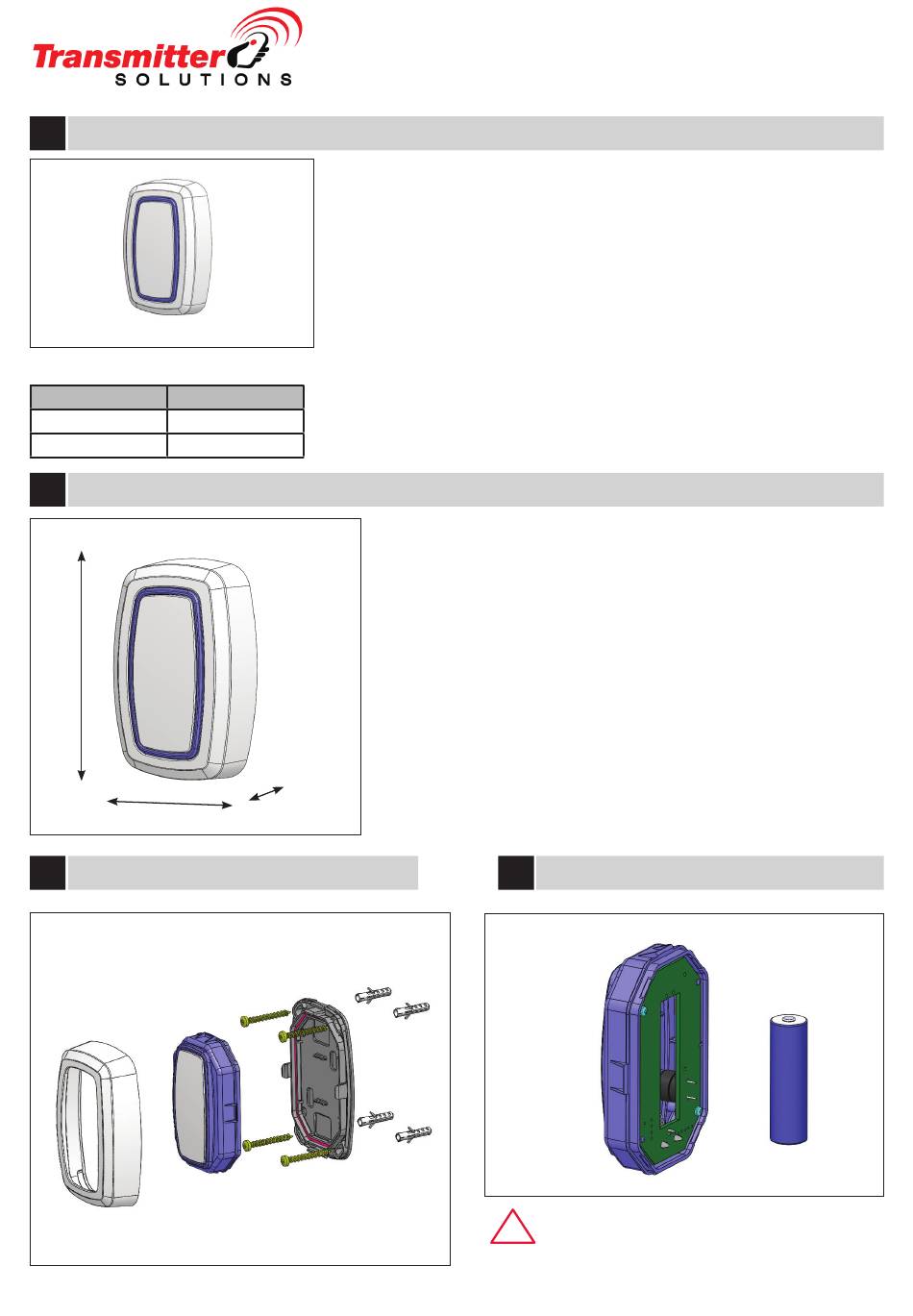

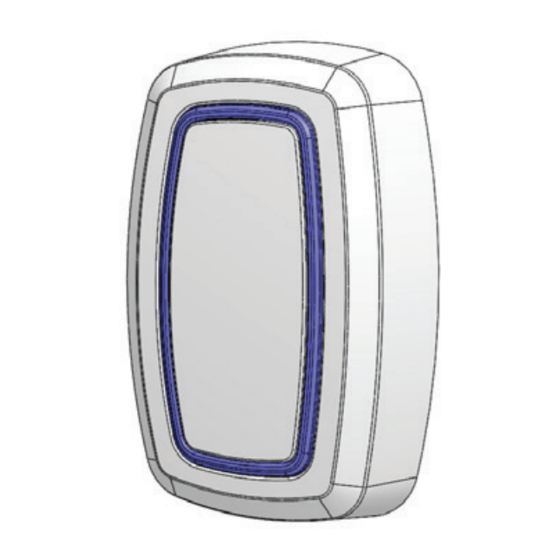

1CH TOUCH TRANSMITTER TRAKEYFREE2
The Touch transmitter TRAKEYFREE2 transmitter is a special radio transmitter oper-
ating at 433,92 MHz in AM/ASK modulation.
It's mainly composed by a capacitive touch sensitive circuit and by a radio transmitter.
It can be used to operate gates, doors or garage doors or any device with the corre-
sponding compatible 433 MHz receiver.
The security protocol is a KeeLoq® Hopping code .
A special sensor lights the led frame when the hand approaches the device at about 10
cm and triggers the radio transmission when it touches the front surface.
The enclosure allows outdoor installations ( IP55).
Fig.1
Each product is already factory programmed with a different security code.
The transmitter is battery supplied with a ER14505 lithium battery for 2 year life.
P/N
Carrier frequency ..............................433,92 MHz
Modulation ........................................AM/ASK
N° channels ......................................1
E.r.p. .................................................300 uW
Battery type ......................................ER14505 Lithium
Operating voltage .............................3,6 Vdc
Current consumption ........................2 µA : stand-by
..........................................................60 mA : transmission
Battery life:........................................ 2 years
Security protocol ...............................KeeLoq® Hopping code
Code combinations ...........................2exp64
Range in open space........................200/300 m
Operating temperature .....................-20°/+80°C
Enclosure IP grade ...........................IP55
Dimensions (mm) .............................105 x 70 x 23,5
Weight ( gr. ) .....................................100
23,5
4

Battery replacement

Replace the battery with another identical or equivalent
!
respecting the polarity as indicated above
Fig. 3
NOTE: Please dispose of the batteries correctly, they are
hazardous waste.
+
_
ER14505
Fig. 4
3,6 V
